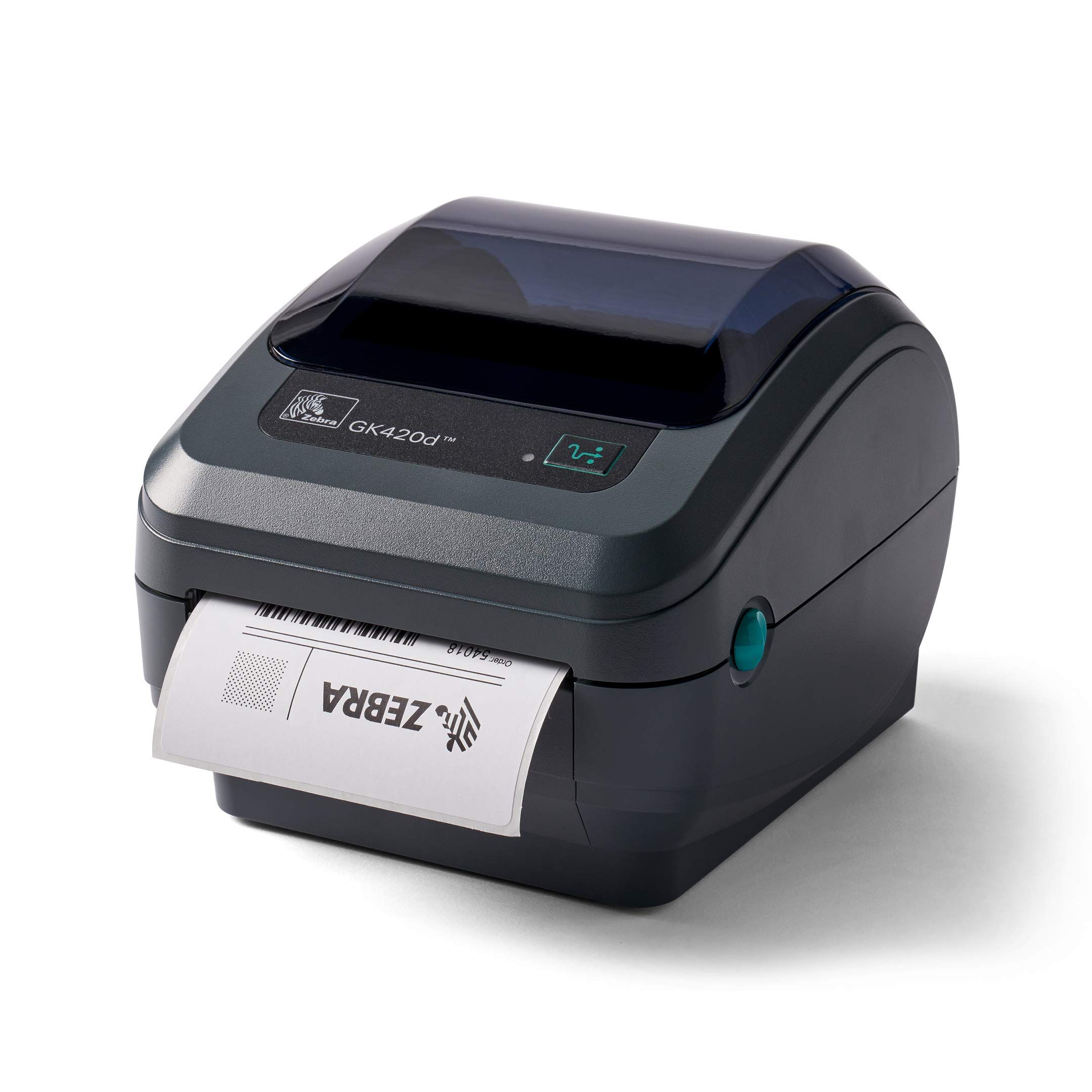

Desktop Printer GK420

Zebra Products In Qatar

Zebra’s GK420 advanced desktop printers deliver professional-quality, dependable performance and advanced features, all at a competitive price. Available in both direct thermal and thermal transfer models, these printers offer fast print speeds, network manageability and easy-load designs to help you improve operational efficiencies, boost profitability and reduce downtime. Boost productivity with quality, reliable printing and advanced features—priced to fit your budget. Also available in a healthcare-specific model, the printers are ideal for a wide range of environments.

Zebra’s GK420 advanced desktop printers deliver professional-quality, dependable performance and advanced features, all at a competitive price. Available in both direct thermal and thermal transfer models, these printers offer fast print speeds, network manageability and easy-load designs to help you improve operational efficiencies, boost profitability and reduce downtime. Boost productivity with quality, reliable printing and advanced features—priced to fit your budget. Also available in a healthcare-specific model, the printers are ideal for a wide range of environments.



STANDARD FEATURES

Auto-calibration of media, Certified Microsoft® Windows® drivers, Construction: Dual-wall frame, ENERGY STAR qualified, OpenACCESS for easy media loading, Programming language: EPL and ZPL are standard, Quick and easy ribbon loading, Tool-less printhead and platen replacement, Triple connectivity: USB, Parallel, Serial

• • SPECIFICATION

• • • • • • • • • •

RESOLUTION

203 dpi/8 dots per mm

Memory

Standard: 4 MB Flash; 8 MB SDRAM

Maximum Print Width

4.09"/104 mm

Maximum Print Speed

5"/127 mm per second

Media Sensors

Standard: Fixed reflective and transmissive sensors

Maximum Print Length

39"/991 mm

Media Width

0.75"/19 mm – 4.25"/108 mm

Media Roll Size

5"/127 mm O.D.

Media Thickness

0.003"/0.08 mm to 0.0075"/0.19 mm

Media Type

, die-cut or ccontinuous direct thermal or thermal transfer labels with or without black line, continuous receipt paper, Roll-fed or fan-fed, tag stock, wristbands

Standard Length

244'/74 M

Ribbon Width

1.33"/33.8 mm to 4.3"/109.2 mm

Core I.D.

0.5"/12.7 mm

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Environmental

Operating Humidity: 10% to 90% non-condensing, Operating Temperature: 40°F to 105°F/4.4°C to 41°C, Storage Humidity: 5% to 95% non-condensing, Storage/Transportation Temperature: -40°F to 140°F/ -40°C to 60°C

Electrical

Auto-ranging external power supply with C14 type connector, ENERGY STAR qualified, IEC 60601-1 Certified, Output: 24 VDC, 3.125A (GK420 Healthcare Models only, Input: 100-240 VAC, 50-60 Hz, Output: 24 VDC, 2.5A

Agency Approvals

Emissions and Susceptibility: EN55022 (Class B), EN55024, EN61000-3-2, EN61000-3-3, Emissions: FCC Part 15, Subpart B (Class B), ICES 003, VCCI, C-Tick, CQC, EAC, KCC, BSMI, ICES-003, Safety: CB Scheme IEC 60950-1, TUV NRTL, C-Tick, CCC, NOM, EAC, KCC, BSMI, BIS (GK420t only)

Length

GK420d: 8.25"/210 mm, GK420t: 10.0"/254 mm

Width

GK420d: 6.75"/171 mm, GK420t: 7.6"/193 mm

Height

GK420d: 6.0"/152 mm, GK420t: 7.5"/191 mm

Weight

GK420d: 3 lbs./1.4 kg, GK420t: 4.6 lbs./2.1 kg

COMMUNICATION AND INTERFACE CAPABILITIES

Centronics® Parallel, Ethernet — 10/100 internal (optional, replaces Serial and Parallel ports), RS-232 auto-sensing Serial interface, DB-9, USB V1.1, bi-directional

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime.

FIRMWARE

EPL and EPL2™, ZBI 2.0, ZPL and ZPL II®

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

2:1 (non-rotated) and 3:1

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-14 (ZPL), EAN-8, German Post Code (EPL), GS1 Databar (formerly RSS), GS1 DataBar (RSS-14), Industrial 2-of-5 (ZPL), Interleaved 2 of 5, ISBT-128 (ZPL, Japanese Postnet (EPL), Logmars (ZPL), MSI, MSI/Plessey, Postnet, Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2D

Aztec (For EPL and ZPL except where noted), Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code

FONTS AND GRAPHICS

1.5 MB user available non-volatile memory storage for downloadable objects, 16 resident expandable ZPL fonts, 3 MB user-available SDRAM, Five resident expandable EPL2 fonts, One resident scalable ZPL font, Supports user-defined fonts and graphics — including custom logos Native open type font support, Unicode™ compliant for multi-language, on-demand thermal printing, ZPL II drawing commands — for boxes and lines

Options and Accessories

Dispenser — Label peel and present with label present sensor, Font Packs — Asian and other international font kits, ZebraNet® 10/100 Print Server — Internal or external Ethernet for network communication and printing, ZKDU™ keyboard display units for stand-alone printing applications
