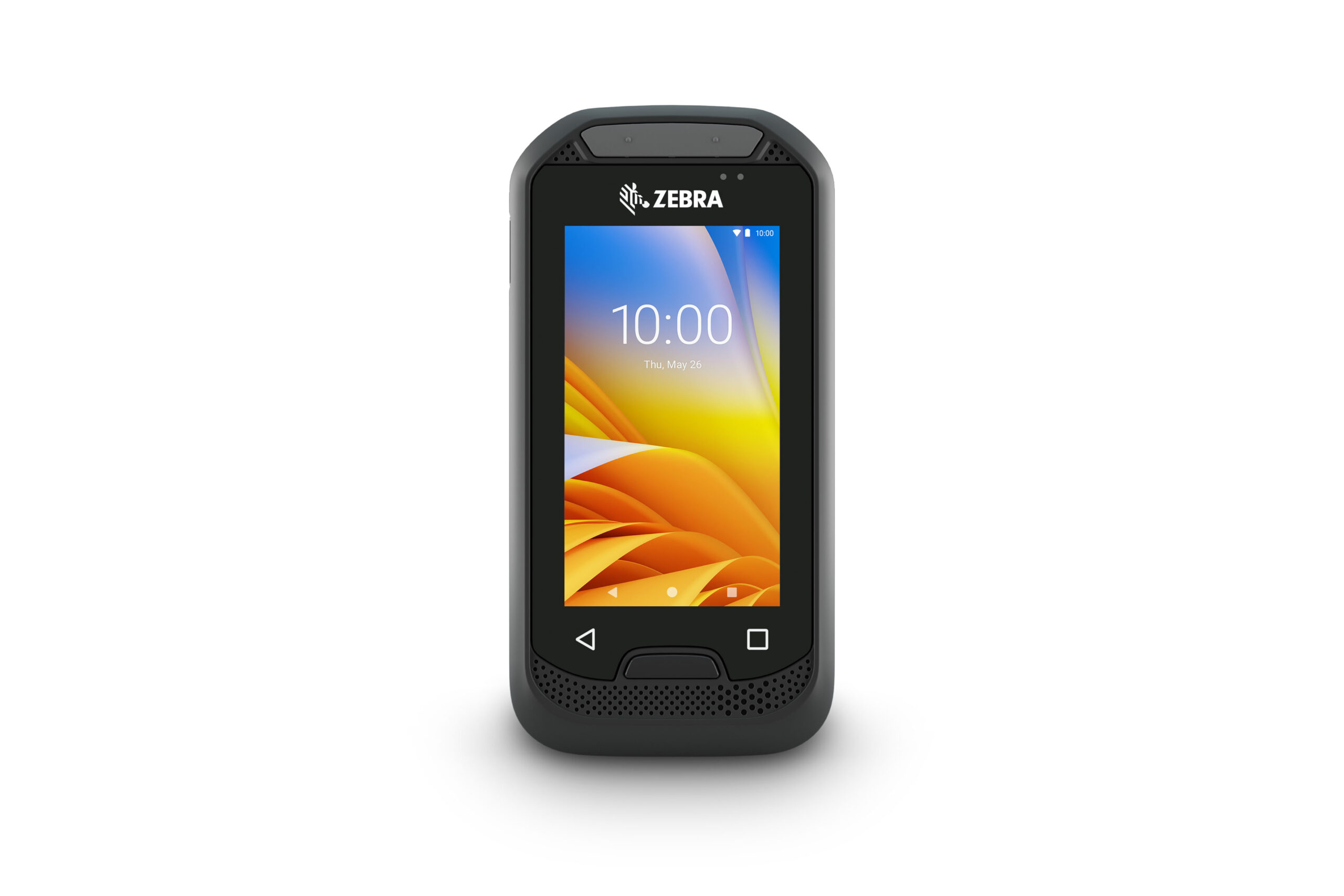

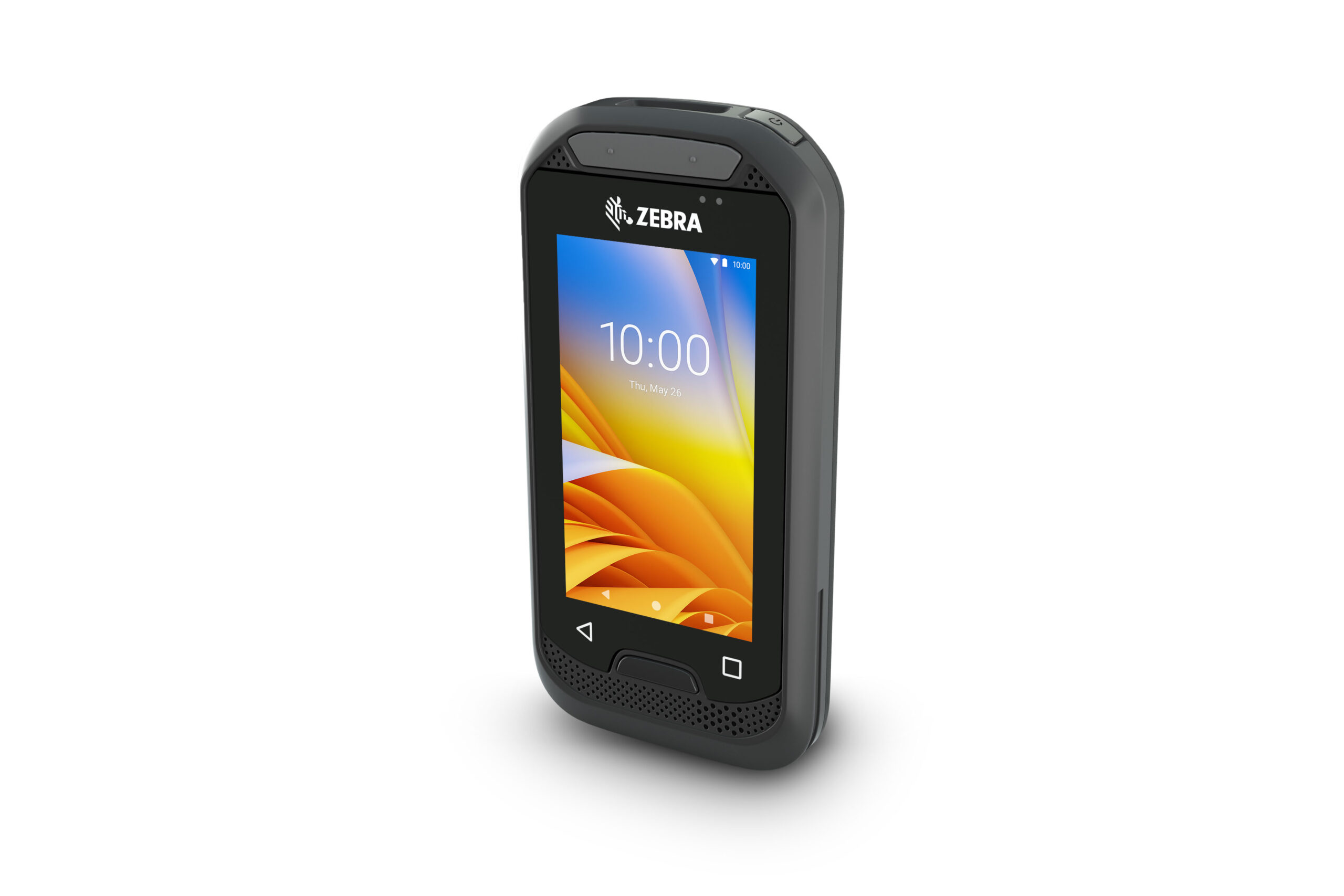

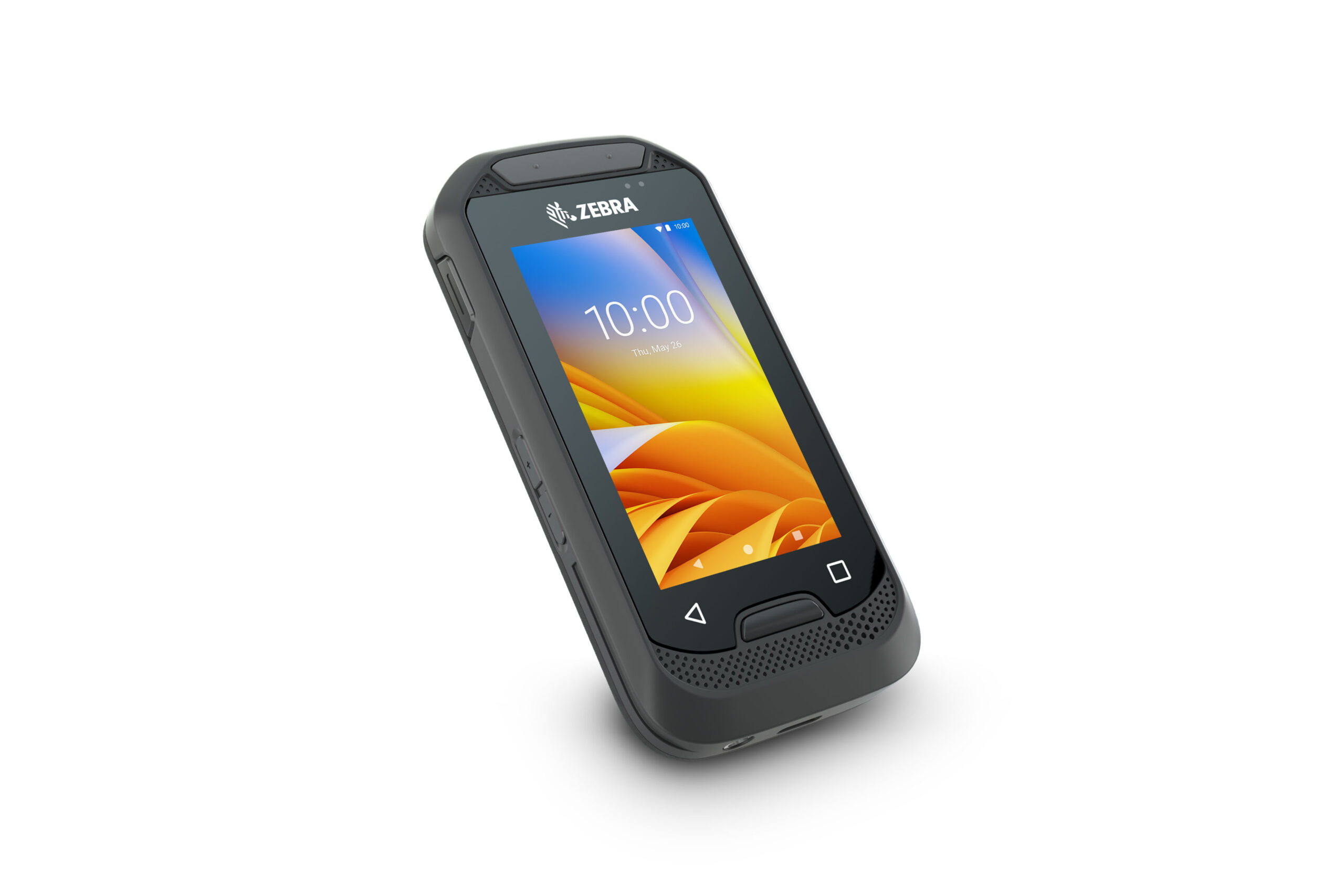

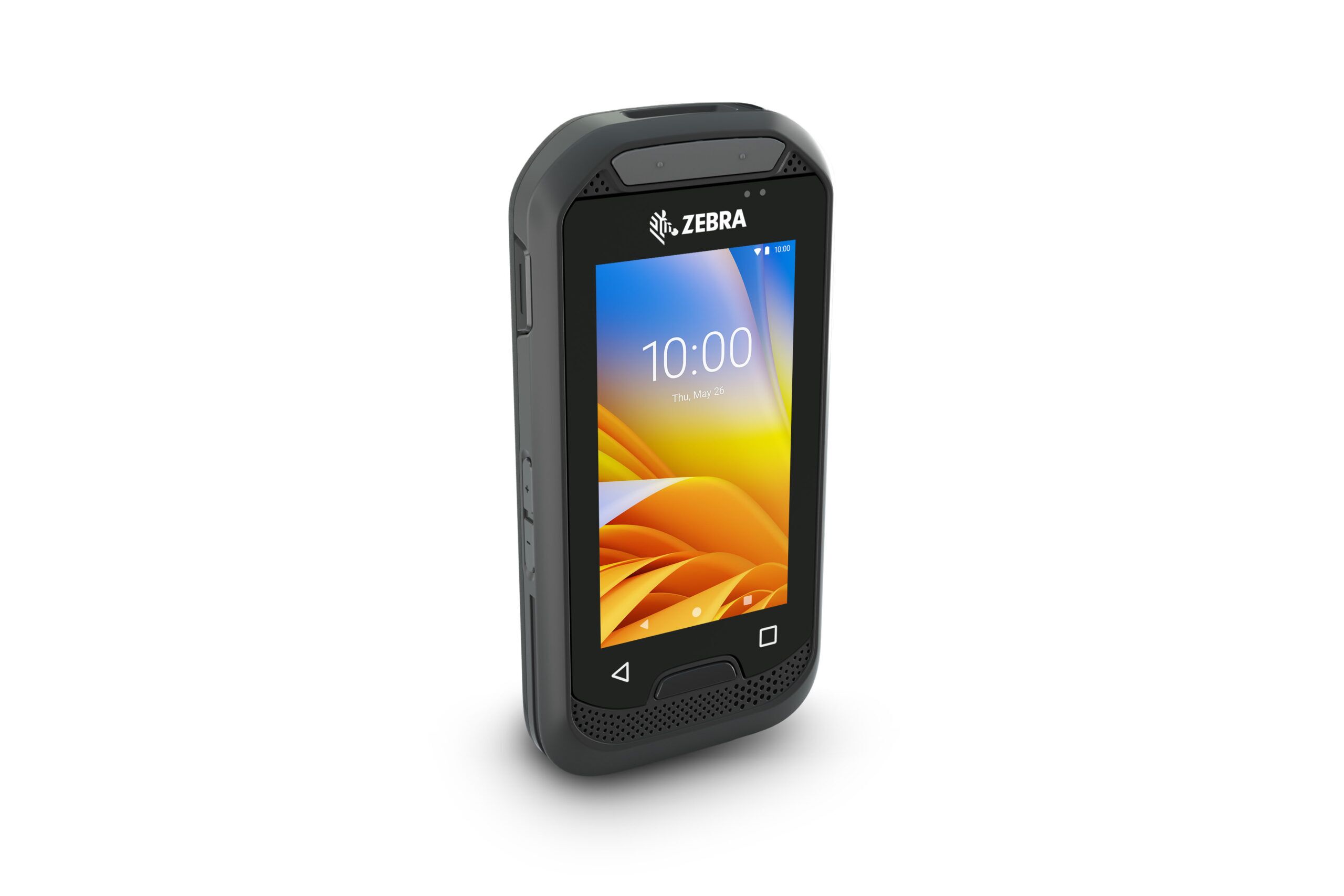

EC30 Mobile Computer
The Perfect Companion for Your Unconnected Workforce
The right-priced mobile device with the right mobile connections for today’s unconnected associates. The EC30 is specially designed for portability — it’s small, lightweight, and durable — and delivers comprehensive voice and data capabilities, including secure messaging and 1D/2D barcode scanning. Modify your current line-of-business applications to extend core features suitable for display on the 3-inch screen.
Physical Characteristics
| Dimensions | 4.5 in. W x 2.2 in. H x 0.55 in. D 114 mm W x 57 mm H x 14 mm D |
| Weight | 3.88 oz./110 g |
| Display | 3 in. color display FWVGA (854 x 480) IPS Transmissive TFT LCD |
| Touch Panel | Capacitive touch with dual-touch operation (finger and glove) |
| Power | Standard capacity, 1200mAh rechargeable Li-Ion, PowerPrecision+ battery (embedded) |
| Keys | Scan; power; push-to-talk (PTT); volume; home (physical); recent apps; back (capacitive) |
| Notifications | Audible tone; multi-color LEDs |
| Connectivity | USB C (USB 2.0) and charge-only contacts — data transfer; charging |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | 4GB LPDDR4 SDRAM Discrete / 32GB MLC eMMC Flash |
User Environment
| Operating Temp. | 32° F to 122° F/0° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP54 |
| Drop Specification | 4 ft./1.2 m drop to smooth concrete across operating temperature |
| Tumble Specification | 1,000 1.6 ft./0.5 m tumbles |
| Electrostatic Discharge (ESD) | +/-20 kVDC air discharge; +/-10 kVDC direct discharge; +/- 10 kVDC indirect discharge |
Wireless Data Communications
| WLAN/Radio | 802.11 a/b/g/n/ac/r/k/d/h/i/w, IPv4, IPv6 2×2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption |
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) —EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD |
| Certifications | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
| WPAN | Bluetooth 5.0 with Bluetooth Low Energy (BLE) |
Voice and Audio
| Audio | Speaker: 1 Watt (90dB spl), integrated microphone, 3.5mm audio jack support (wired and Bluetooth headset support) |
| Push-to-Talk | PTT (Workforce Connect PTT Express and Pro): via speaker/microphone on device and via headset VoIP (Workforce Connect Voice): via headset only Bluetooth audio supported (NB and WB) Google Voice Entry Google Voice Assist PTT Express is Pre loaded and with 3 month trial license” |
Data Capture
| Scanning | 1D/2D Imager (SE2100) |
Sensor Technology
| Magnetometer | eCompass automatically detects direction and orientation |
| Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
| Gyroscope | Detects linear acceleration of the EC30 |
Platforming
| Mobility DNA, Enterprise Mobility Management (EMM) support |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the EC30 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. |
Footnotes
| 1. Based upon typical user profiles For details related to Common Criteria support, |
