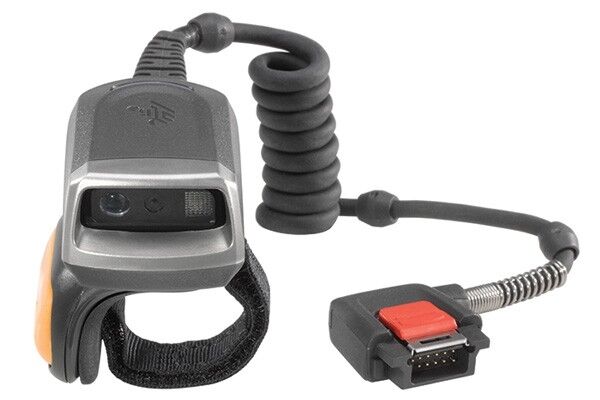

RS5000 1D/2D CORDED RING SCANNER


IMPROVE THE PRODUCTIVITY OF YOUR ZEBRA WEARABLE COMPUTER USERS WITH COST-EFFECTIVE HANDS-FREE 1D/2D SCANNING





RS5000 1D/2D Want to maximize the productivity of your Zebra wearable computer users? With Zebra’s hands-free RS5000 scanner, you can. Your workers can capture virtually any barcode at lightning speed with point-and-shoot simplicity — 1D or 2D, in virtually any condition. When it comes to comfort, the RS5000 delivers — this lightweight, perfectly-balanced little scanner is worn on a single finger on either hand, leaving both hands free to handle materials. And since the warehouse, distribution center and manufacturing plants are some of the toughest environments, this little scanner is big on durability. Your workers can drop it, spray it with water and even use it in the freezer — and still expect reliable operation. Get the powerful little ring scanner that delivers more — more productive workers, more value out of your Zebra wearable computers and more satisfied customers.



Wide Working Range

Workers can capture barcodes from near contact to over 25 in./63.5 cm.

PRZM Intelligent Imaging for Unparalleled Scanning Performance

Only from Zebra, PRZM resets the bar for imaging by providing features that reduce decode time, enabling lightning fast capture of virtually any barcode in any condition. PRZM turns poor images into instantly useful images, so high quality images are available for decoding faster. PRZM then handles some of the processing typically handled in the decoder, increasing decoding speed, reducing power usage and improving battery cycle times. The result? The faster-than-ever accurate scanning your workers need to improve productivity and reduce cycle times in your operations.

Ambidextrous Operation

With the convenient swivel feature, your workers can easily switch between right and left-handed operation on the fly, allowing users to choose the hand that is most comfortable — and switch hands in seconds.

Wide Field of View

Workers can easily read the large barcodes often found in warehouses, as well as labels that contain multiple barcodes.

SPECIFICATIONS





Models



RS5000 Short Cable version for WT6000 (RS5000-LCFSWR)
RS5000 Long Cable version for WT6000 (RS5000-LCFLWR)
RS5000 Short Cable version for WT41N0 (RS5000-LCBSWR)



Physical Characteristics



Dimensions 2.0 in. L x 1.26 in. W x 1.1 in. D
51.5mm L x 32mm W x 27.5mm D
Weight WT41 version weight: 92 g
WT6000 short cable version: 76 g
WT6000 long cable version: 112 g



Performance Characteristics



Optical Resolution 1280 x 800 pixels
Roll 360°
Pitch Angle ±60° from normal
Skew Tolerance: ±60° from normal
Aiming Element 610nm LED
Illumination One Hyper Red 660nm LED
Field of View Horizontal: 42°, Vertical: 28.0°
Ambient Light Immunity (from total darkness) Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)
Supported 1D Symbologies Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes.



User Interface



LED Two color red/green scan status LED
Scan Triggering Manual ambidextrous trigger



User Environment



Operating Temp. -22°F to +122°F/-30°C to +50°C
Storage Temp. -40°F to +140°F/-40°C to +60°C
Humidity 5% to 95% non-condensing
Drop Rating Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range
Tumble Rating 1,000 tumbles @ 0.5 m at room temperature
Sealing IEC 60529: IP65
Vibration Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
Electrostatic Discharge (ESD) +/-20kVdc air discharge
+/-10kVdc contact discharge

Software Compatibility



DataWedge and select MDM solutions (via Zebra’s MDM toolkit)



Recommended Services



Zebra OneCare



Warranty



Subject to the terms of Zebra’s hardware warranty statement, the RS5000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
https://www.zebra.com/warranty



SE4710 Focus Range*



Symbology Near
5 mil Code 39 2.75 in./6.9 cm
5 mil Code 128 3.5 in./8.89 cm
5 mil PDF417 4.25 in./10.8 cm
10 mil DataMatix 3.75 in./9.5 cm
100% UPCA 1.8 in./4.5 cm
20 mil Code 39 2 in./5.0 cm
Far
5 mil Code 39 12 in./30.4 cm
5 mil Code 128 7.5 in./19.0 cm
5 mil PDF417 7.25 in./18.4 cm
10 mil DataMatix 9 in./22.8 cm
100% UPCA 19.75 in./50.1 cm
20 mil Code 39 25 in./63.5 cm
