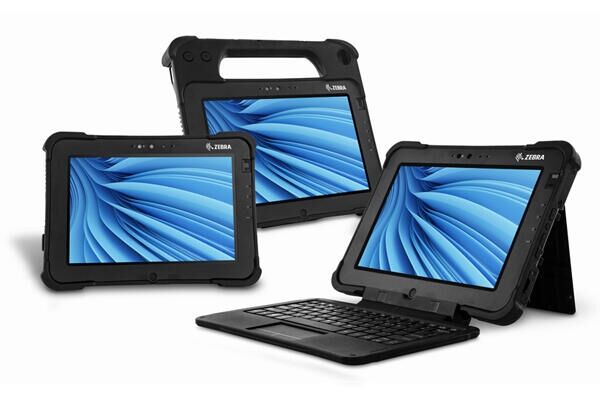

The smallest and lightest of the L10 family for workers who need the ultimate rugged traditional tablet form factor. Roam far and wide, connected to the information and people you need with fast wireless connectivity. A hot-swappable battery is standard, but this tablet will stay powered for over 24 hours with the extended-life accessory battery.
Physical Characteristics
| Dimensions | XSlate: 11.0 in. L x 7.7 in. W x 0.88 in. D 280.8 mm L x 195.2 W mm x 22 mm D XPad: 11.0 in. L x 10.0 in. W x 0.88 in. D 280.8 mm L x 255.9 W mm x 22 mm D XSlate with keyboard: 11.0 in. L x 8.3 in. W x 2.36 in. D 280.8 mm L x 210.8 W mm x 60 mm D |
| Weight | XSlate: 2.8 lbs/1.3 kg2 XPad: 3.1 lbs/1.4 kg2 XSlate with keyboard: 4.63 lbs/2.1 kg2 |
| Frame | Magnesium alloy internal frame with external elastomer corner bumpers |
| Display | 10.1 in. 2K resolution display WUXGA 1920 x 1200 (16:10) – View Anywhere® nominal 1000 Nit capacitive Corning® Gorilla® Glass 3 Capacitive 10-point touch Contrast ratio = 800 to 1000 : 1 Wide viewing angle ±85° Standard user replaceable anti-glare screen protector — 3H hardness User selectable, glove and wet mode Night vision mode supported on Active View Anywhere Display only |
| Graphics | Intel® UHD Graphics 505 |
| Battery Life and Power | Standard battery: up to 9.5 hours3 Extended battery: up to 25 hours3 Battery charge time: – Standard battery: 2.75 hours with system off4 – Extended battery: 3.25 hours with system off4 Standard bridge battery (1 minute swap time) – Hot swap battery feature comes standard Input Voltage: 12-20V, AC Adapter: 19V |
| Ports/Connectivity | Docking connector (2) USB 3.0 ports USB Type-C port (USB 2.0, USB 3.0, Display Port out) 3.5 mm audio output (stereo out, mono in) RJ-45 ethernet port Dual Nano SIM (4FF) Micro-SDXC |
| Expansion Slot | Micro-SDXC |
| Integrated Options | NFC Optional 1D/2D barcode reader (XPad only) Optional True RS232 serial, or Optional HDMI-In, or Optional CAC / Smart Card reader, or Optional UHF RFID reader (AEI) |
| Rugged Keyboard | Optional accessory: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand |
| Security | Integrated fingerprint reader Trusted Platform Module (TPM) 2.0 Optional CAC / Smart Card reader Kensington cable lock slot TAA compliant |
| Status Indicators | System status, battery status, camera active, SSD activity |
| Audio | Intel High Definition audio Realtek® HD Codec RealTek noise cancellation Multi-directional array microphone – 2 microphones (2 front facing array mic) XPad: 1 front facing speaker XSlate: 1 rear facing speaker |
Performance Characteristics
| Operating System | Windows 10 IoT |
| Processor | Intel Pentium® processor N42005; (LPDDR4, 1.10 GHz with turbo frequency to 2.50 GHz) |
| Memory | 8 GB |
| Storage Options | 128 GB SATA SSD 256 GB SATA SSD 512 GB SATA SSD |
User Environment
| Operating Temperature | -4° F to 140° F/-20° C to 60° C; MIL-STD-810G |
| Storage Temperature | -22° F to 158° F/-30° C to 70° C; MIL-STD-810G |
| Thermal Shock | -22° F to 158° F/-30° C to 70° C within five (5) minutes, non-operating; MIL-STD-810G |
| Drop Specification | MIL-STD-810G: 6 ft./1.83 m drops to plywood over concrete; 4 ft./1.22m drops to concrete |
| Sealing | IP65 |
| Hazardous Environments | C1D2 (Class 1 Division 2) for hazardous locations1 |
| Vibration | Minimum integrity non-operating, composite wheel operating; MIL-STD-810G |
| Shock | 40G operating; MIL-STD-810G |
| Humidity | 3% to 95% non-condensing, -22° F to 140° F/-30°C to 60°C, 5 cycles of 48Hr; MIL-STD-810G |
| Water Proofing | Method 506.5 – Procedure I, wind speed 40 mph, 4 inches per hour, 4 sides; MIL-STD-810G |
| Blowing Sand | 20M/S, rate 1.1g/m3 (+/-.3g) at high temperature of 140° F/60° C; MIL-STD-810G |
| Blowing Dust | Velocity 8.9M/s dust concentration 3.9 g/m3 at high temperature of 140 °F/60° C; MIL-STD-810G |
| Fluid Contamination | 50/50 solution of water and bleach, 50/50 solution of water and hydrogen peroxide, diesel fuel, mineral based oil, Lysol disinfectant, denatured alcohol, isopropyl alcohol; MIL-STD-810G |
| Altitude | Operating: 50,000 ft./15,240 m; MIL-STD-810G |
Data Capture
| Camera | 13 MP rear camera with AutoFocus; 2 MP front camera with Flash |
| NFC | Optional |
| RFID | Optional UHF RFID Reader (AEI) |
| Barcode Scanner | Optional on XPad only: SE4710 1D/2D imager |
Wireless WAN/GPS Data (Cellular)
| Radio | Optional internal wireless (one expansion slot with choice of: • Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou) • Sierra Wireless EM7511, LTE-Advanced with GNSS • Discrete GNSS, Navisys u-blox GPS + GLONASS with SBAS AT&T FirstNet Ready & Verizon PNTM certification CBRS Capable (Band 48) – EM7511 only |
Wireless LAN (WiFi)
| Radio | Intel® Dual Band Wireless-AC 8265 Wi-Fi plus |
Wireless PAN (Bluetooth)
| Bluetooth | Class 1, Bluetooth® 4.2 (EDR + BLE) |
Regulatory
| Product Safety | UL/CSA 60950-1 2nd Ed.; UL/CSA 62368-1 2nd Ed.; EN 60950-1 2nd Ed.; IEC 62368-1 2nd Ed.; EN 62368-1 2nd Ed.; AS/NZS 62368.1; NOM-019-SCFI Hazardous Locations: C1D2; ANSI/ISA 12.12.01-2013 |
| SAR | FCC OET 65 Supplement C; CAN/CSA RSS-102 Issue 5, Safety Code 6; EN 62311, EN 62209-2; EN62209-2:201 |
| EMC | FCC Part 15 B, Class B; CAN/CSA ICES-003, Class B; EN55032, Class B; EN 301-489-1; EN 301-489-17; EN 301-489-24; EN 61000-3-2; EN 61000-3-3; EN55024; EN 303 413 |
| Environment | California Proposition 65; Battery Charging Systems; RoHS 2 Directive 2011/65/EU; WEEE Directive 2012/19/EU; Battery Waste Directive 2013/56/EU; NMX -1-122-NYCE-2006 (Mexico Energy Consumption); Energy Star Compliant; EPEAT Silver |
Accessories
| Vehicle dock; industrial dock; office dock; standard and extended batteries; kickstand with extended battery bracket; single bay battery charger; power adapters; companion keyboard; short and long digitizer and passive pens; combination kickstand and rotating hand strap; soft handle; shoulder strap; carry case; screen protectors; screen cleaning cloth |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the L10 is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. For complete warranty statement, go to: https://www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.
Zebra Visibility Services — Asset Visibility Services (AVS) and VisibilityIQTM Foresight options on any Zebra OneCare support contract deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level. |
Footnotes
| 1. Requires a Hazardous Locations certified model. Many XSlate and XPad models are C1D2 certified.
2. Weight represents approximate system weight measured with a 36WHr battery. Actual system weight may vary depending on configuration, component and manufacturing variability. 3. MobileMark 2014 performance testing software. Battery performance will vary by system configuration. Battery life and recharge estimates will vary based on system settings, applications, optional features, environmental conditions, battery conditioning and user preferences. 4. Approximate charging time. Validated charging from 5% to 90% with system on or system off. 5. L10 Pentium supports Windows 10 Pro 64-bit but this is not offered from the factory. |
