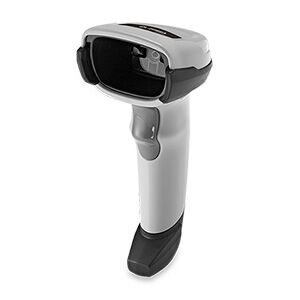

Handheld Scanners DS2200

Zebra Products In Qatar

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to
printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow
down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series,
you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your workers get
best-in-class first-time, everytime scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier to deploy and
manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200
Series — the affordability your budget demands, with the deployment, ease-of-use and management simplicity your business requires.

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to
printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow
down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series,
you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your workers get
best-in-class first-time, everytime scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier to deploy and
manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200
Series — the affordability your budget demands, with the deployment, ease-of-use and management simplicity your business requires.



Dimensions

Corded DS2208: 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D, Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D, Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D

Weight

Corded DS2208: 5.7 oz. / 161.6 g, Cordless DS2278: 7.5 oz. / 214 g, Presentation Cradle: 5.2 oz. / 151 g

Input Voltage

DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

Current

Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image), Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On), Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB

COLOR

Nova White, Twilight Black

Supported Host Interfaces

Keyboard Wedge, RS232, TGCS (IBM) 46XX over RS485, USB

Keyboard Support

Supports more than 90 international keyboards

User Indicators

beeper (adjustable tone and volume), Direct Decode Indicator, Good Decode LEDs, rear view LEDs

Motion Tolerances

Up to 5 in./13 cm per second for 13 mil UPC

Swipe Speed (Hands- Free)

Up to 30.0 in./76.2 cm per second for 13 mil UPC

Light Source

Aiming Pattern: Linear 624nm Amber LED

Illumination

(2) 645nm Super-Red LEDs

Imager Field of View

32.8° H x 24.8° V Nominal

Image Sensor

640 x 480 pixels

Minimum Print Contrast

25% minimum reflective difference

Skew/Pitch/Roll Tolerance

+/- 65°, +/- 65°; 0-360°

Minimum Element Resolution

Code 39 – 4.0 mil; Code 128 – 4.0 mil, Data Matrix – 6.0 mil; QR Code – 6.7 mil

Operating Temperature

DS2208/DS2278 Imagers: 32.0° to 122.0° F/0.0° to 50.0° C, Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C

Storage temperature

-40.0° to 158.0° F/-40.0° to 70.0° C

Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete

Tumble Specification

Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler

Environmental Sealing

IP52

Electrostatic Discharge (ESD)

DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles/0 to 107,600 Lux

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle

Battery Capacity/ Battery Type

2,400 mAh Li-Ion Battery

Scans Per Battery Charge

110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minut

Operating Time Per Full Charge

84.0 Hours

Charge Time (from Empty)

14 Hour Shift Hours / Full Charge Hours

Standard USB

14 Hour Shift Hours: 4, Full Charge Hours: 17

BC1.2 USB

14 Hour Shift Hours: 1, Full Charge Hours: 5

External 5V Source

14 Hour Shift Hours: 1, Full Charge Hours: 5

Micro USB

14 Hour Shift Hours: 1, Full Charge Hours: 7

BC1.2 Micro USB

14 Hour Shift Hours: 1, Full Charge Hours: 4

Electrical Safety

CAN/ CSA-C22.2 No. 60950-1-07, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1

Environmental

RoHS EN 50581

LED Safety

IEC 62471

IT Emissions

EN 55032 (Class B)

IT Immunity

EN 55024

Harmonic Current Emissions

EN 61000-3-2

Voltage Fluctuation and Flicker

EN 61000-3-3

Radio Frequency Devices

47 CFR Part 15, Class B, Subpart B

Digital Apparatus

Class B, ICES-003 Issue 6

Cordless Accessories

CR2278 Presentation Cradle, Spare Battery, USB Cable

Input Voltage Range

4.5 to 5.5 VDC External Power Supply, DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered

1D

Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN

2D

Aztec, Composite Codes, DataMatrix, Han Xin, MaxiCode, Micro QR, PDF417, Postal Codes, QR code, TLC-39
