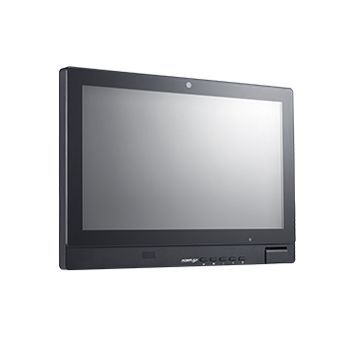

Infotainment Terminal HC-1021P

Posiflex Products

The HC-1021P is an infotainment terminal with 21.5″ PCAP touch screen display. Well-suited to meet durability and aesthetic requirements, the HC-1021P of fers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions.

The HC-1021P is an infotainment terminal with 21.5″ PCAP touch screen display. Well-suited to meet durability and aesthetic requirements, the HC-1021P of fers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Braswell N3160 CPU, up to 2.24 GHz, 2M Cache

System Memory

DDR3L SO-DIMM x 2, max. 8GB in 2 slots

Storage Device

SATA x 1 + micro SD x 1

Power Supply

12V/80W

OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

21.5" TFT LCD

RESOLUTION

1920 x 1080

TOUCH

True-flat PCAP touch with multi-touch support (optional AG glass)

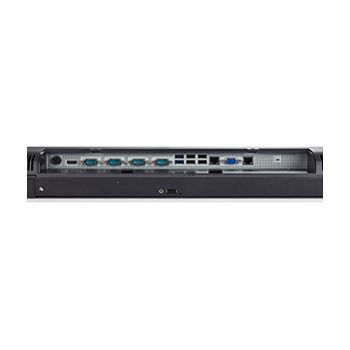

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

4, DB9 x 4, 5V/12V support on all COM ports

STANDARD USB PORT

USB 2.0 x 5

LAN PORT

10/100/1000 Mb x 2

DISPLAY PORT

VGA x 1 + HDMI x 1, 12V support on VGA port for Posiflex monitors

Audio

Internal 3W speaker x 2 + Mic-in/Line-out

EXPANSION SLOT

M.2 slot x 1

HOTKEYS

Volume up, volume down, brightness up, brightness down, power (hotkeys lockable)

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

547 x 61 x 377

Weight

6.6

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

M.2 WiFi/BT module

Scanner

2D barcode scanner

CAMERA

Front facing, 1MP wide angle, auto focusing

• • ATTACHMENT OPTIONS

• • • • • • • • • •

PERIPHERALS

iButton, MSR, MSR + optional 3G dongle + optional Fingerprint Sensor, MSR + optional RFID +optional iButton, MSR+optional RFID+optional Fingerprint Sensor, Price Checker Kit – wall mount bracket + 2D barcode scanner

STANDALONE OPTION

TV tuner
