HC50 Mobile Computer


Zebra HC50 mobile computer Perfectly Designed with Premium Features for Today’s Healthcare Workers

Zebra HC50 mobile computer elevates healthcare technology by combining the foundational features of the HC20 with advanced capabilities, setting a new standard for healthcare mobile computing. This device is engineered to meet the dynamic needs of medical professionals, offering a robust suite of features that enhance patient care and operational efficiency.

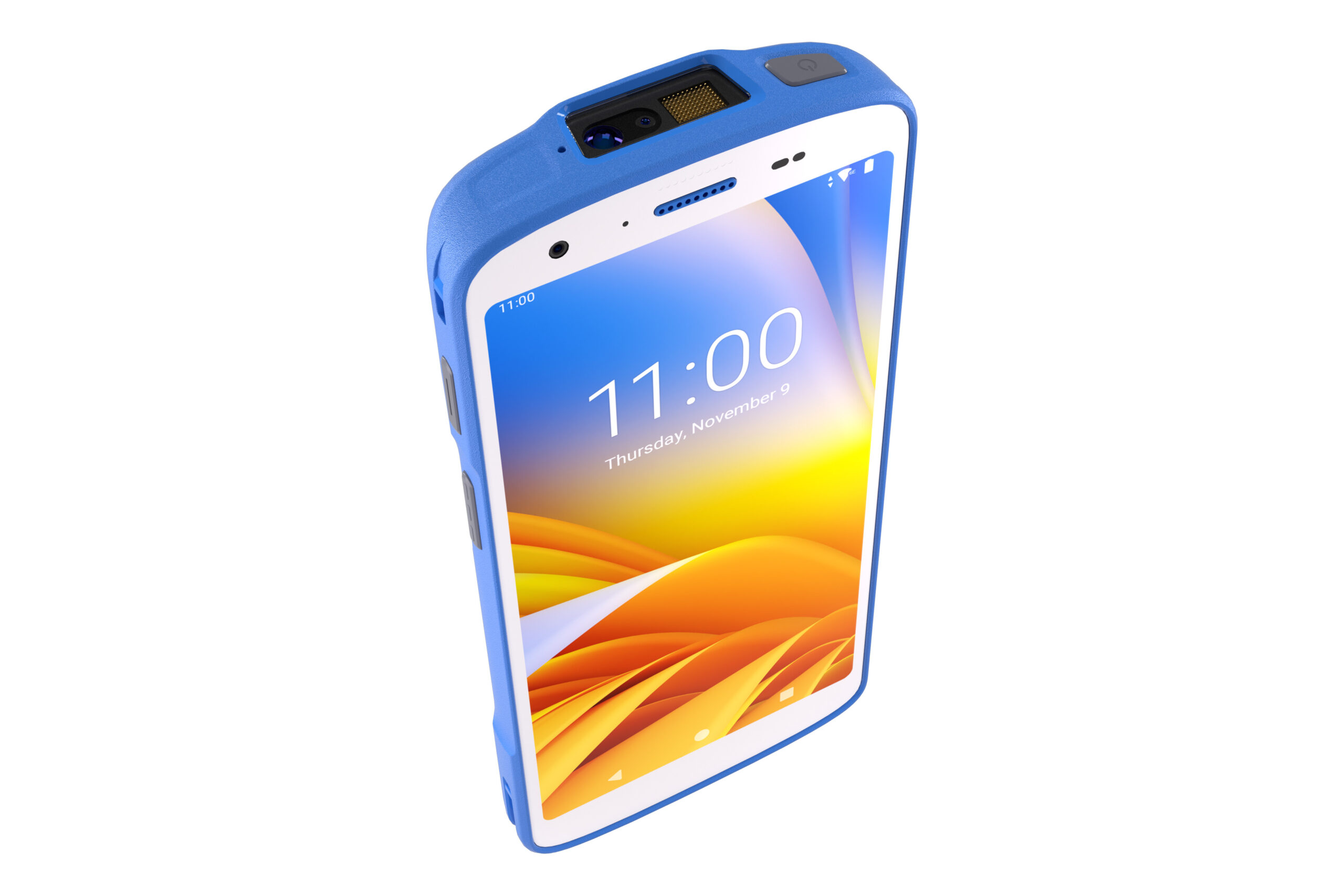

Equipped with a front-facing 5 MP camera, the HC50 is perfectly suited for telehealth applications, enabling high-quality video calls for remote consultations and patient monitoring. This feature is increasingly vital in modern healthcare settings, where telehealth has become a cornerstone of patient care.

The HC50’s integrated scanner is a standout feature, designed to capture a wide array of barcodes on various surfaces, ensuring seamless and accurate data collection. This capability is enhanced by the device’s patient-friendly design, featuring white illumination and a green aimer to minimize discomfort during scanning.

With expanded memory and support for Wi-Fi 6E, the HC50 delivers exceptional application performance and wireless connectivity, ensuring that healthcare professionals have fast and reliable access to critical information. Additionally, the device’s true hot swap functionality guarantees uninterrupted power, a crucial feature for healthcare environments where every second counts.

Overall, the HC50 represents Zebra’s commitment to advancing healthcare mobile computing, offering a powerful, efficient, and user-friendly solution that supports the complex needs of healthcare professionals and patients alike.

Physical Characteristics



Dimensions6.5 in. L x 3.0 in. W x 0.49 in. D
165 mm L x 76.3 mm W x 12.5 m D
WeightHC20: 8.4 oz./239 g
HC50: 8.5 oz./242 g
Display6.0 inch color Full High Definition+ (1080 x 2160), 450 NITS
Imager WindowCorning® Gorilla® Glass
Touch PanelMulti mode capacitive touch with bare or light gloved fingertip input
BacklightLED backlit
PowerUser removable; rechargeable Li-Ion; 3800mAh/14.63Wh; standard capacity with BT BLE; PowerPrecision for real-time battery metrics; fast charge; true hot swap (HC50)
Expansion SlotSupports up to 2TB MicroSD
Network ConnectionsWLAN, WPAN, USB 3.1 (Bottom Type C) – Super Speed (host and client)
NotificationsAudible tone; multi-color LEDs; vibration
KeypadOn-screen keypad
Voice and AudioThree microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; HD Voice, including Superwideband (SWB), Wideband (WB) and Fullband (FB)
ButtonsDual dedicated scan buttons; programmable button for PTT or other use; volume up/down
Safety/AlertRed Alert Button with emergency dialer feature



Performance Characteristics



CPUQualcomm® 5430 hex-core, 2.1 GHz
Operating SystemUpgradeable to Android 16
MemoryHC20: 6 GB RAM/64 GB UFS Flash
HC50: 8 GB RAM/128 GB UFS Flash
SecurityProduct supports Secure Boot and Verified Boot



User Environment



Operating Temperature14°F to 122°F/-10°C to 50°C
Storage Temperature-40°F to 158°F/-40°C to 70°C
Humidity5%-95% non-condensing
Drop SpecificationMultiple 4 ft./1.25 m drops to tile over concrete over operating temperature range per MIL-STD 810H
Tumble Specification500 tumbles, 1.6 ft./0.5 m
SealingIP68 and IP65, with battery per applicable IEC sealing specifications
Electrostatic Discharge (ESD)+/- 15 kV air discharge; +/- 8 kV direct discharge;
+/- 8 kV indirect discharge



Interactive Sensor Technology (IST)



Light SensorAutomatically adjusts display backlight brightness
MagnetometereCompass automatically detects direction and orientation
Motion Sensor3-axis accelerometer with MEMS Gyro
Proximity SensorAutomatically detects when the user places the handset against head during a phone call to disable display output and touch input



Data Capture



ScanningHC20: SE4720 1D/2D Scan Engine with White Illumination / Green Aimer6
Occasional barcode scanning available via camera; barcode decoding software included7
HC50: SE4720 1D/2D Scan Engine with White Illumination / Green Aimer
CameraRear: 16 MP
HC50 only: Front 5 MP
NFCISO 14443 Type A and B; Sony FeliCa and ISO 15693 cards8; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified



Voice



VOIP CommunicationsWorkcloud Communication PTT Express simple push-to-talk calls over Wi-Fi (optional).

Workcloud Communication PTT Pro enables instant push-to-talk calls over Wi-Fi and cellular (optional).

Workcloud Communication Enterprise Voice allows HC20/HC50 devices to double as fully-featured and customizable PBX mobile handsets (optional).

Wireless LAN



RadioIEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc;
2×2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz);
Wi-Fi CERTIFIED 6™ (Wi-Fi 6E2); Dual Band Simultaneous; IPv4, IPv6
Data Rates6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160MHz – up to 2402 Mbps;
5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz – up to 2402 Mbps;
2.4 GHz: 802.11b/g/n/ax — 20 MHz – up to 286.8 Mbps
Operating ChannelsChannel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
Channel 1-233 (5925-7125 MHz);
Channel Bandwidth: 20, 40, 80, 160 MHzActual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency
Security and EncryptionWPA3 Enterprise 192-bit mode, GCMP256 — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD;
WPA3 Personal (SAE), AES-CCMP-128;
WPA/WPA2 Enterprise, TKIP and AES-CCMP-128;
WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128;
WEP 40 bit and 104 bit
Fast Roam802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
CertificationsWi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint



Wireless PAN



Bluetooth
Class 2, Bluetooth v5.2 with BLE beaconing



Disinfecting and Cleaning



Highly disinfectant ready; Healthcare plastics — supports 30+ wipes and disinfectants. For information on Zebra-approved disinfectants and guidelines on cleaning HC20/HC50 devices, please visit:
https://connect.zebra.com/DeviceDisinfection_us



Warranty



Subject to terms of Zebra’s hardware warranty statement, the HC20 and HC50 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty
