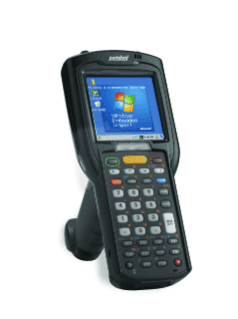

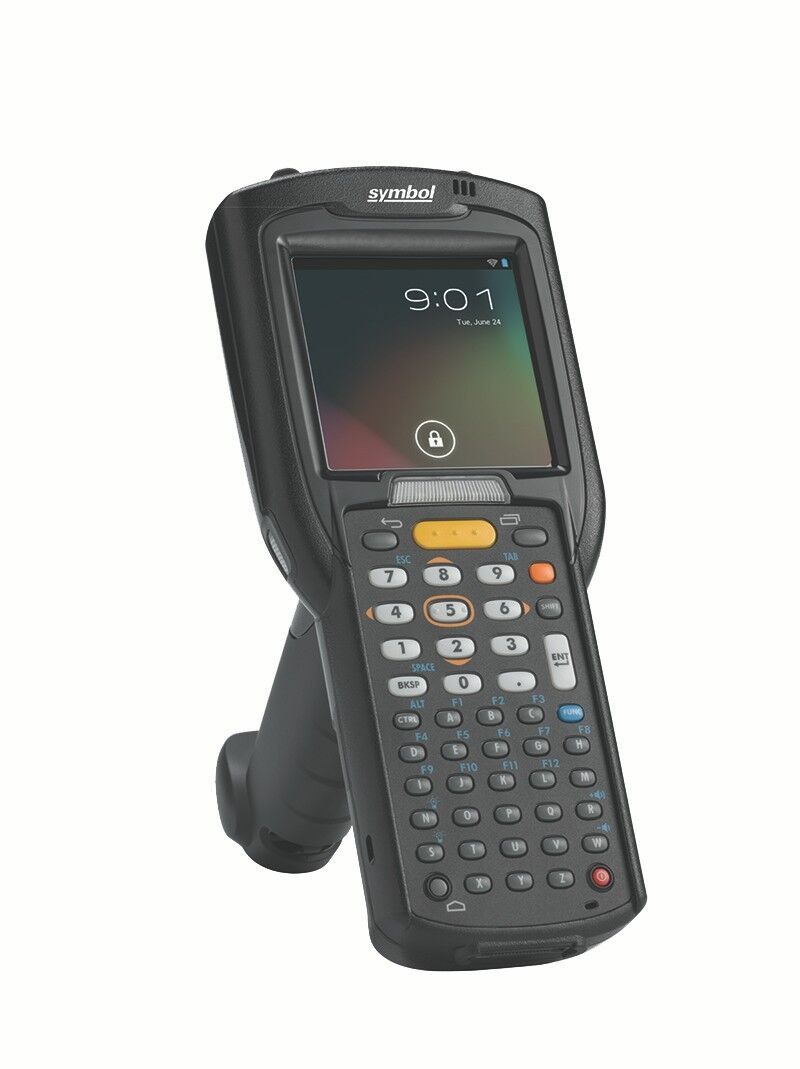

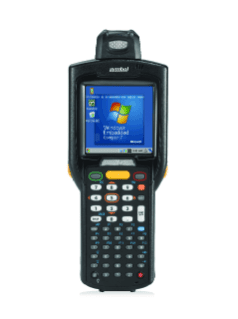

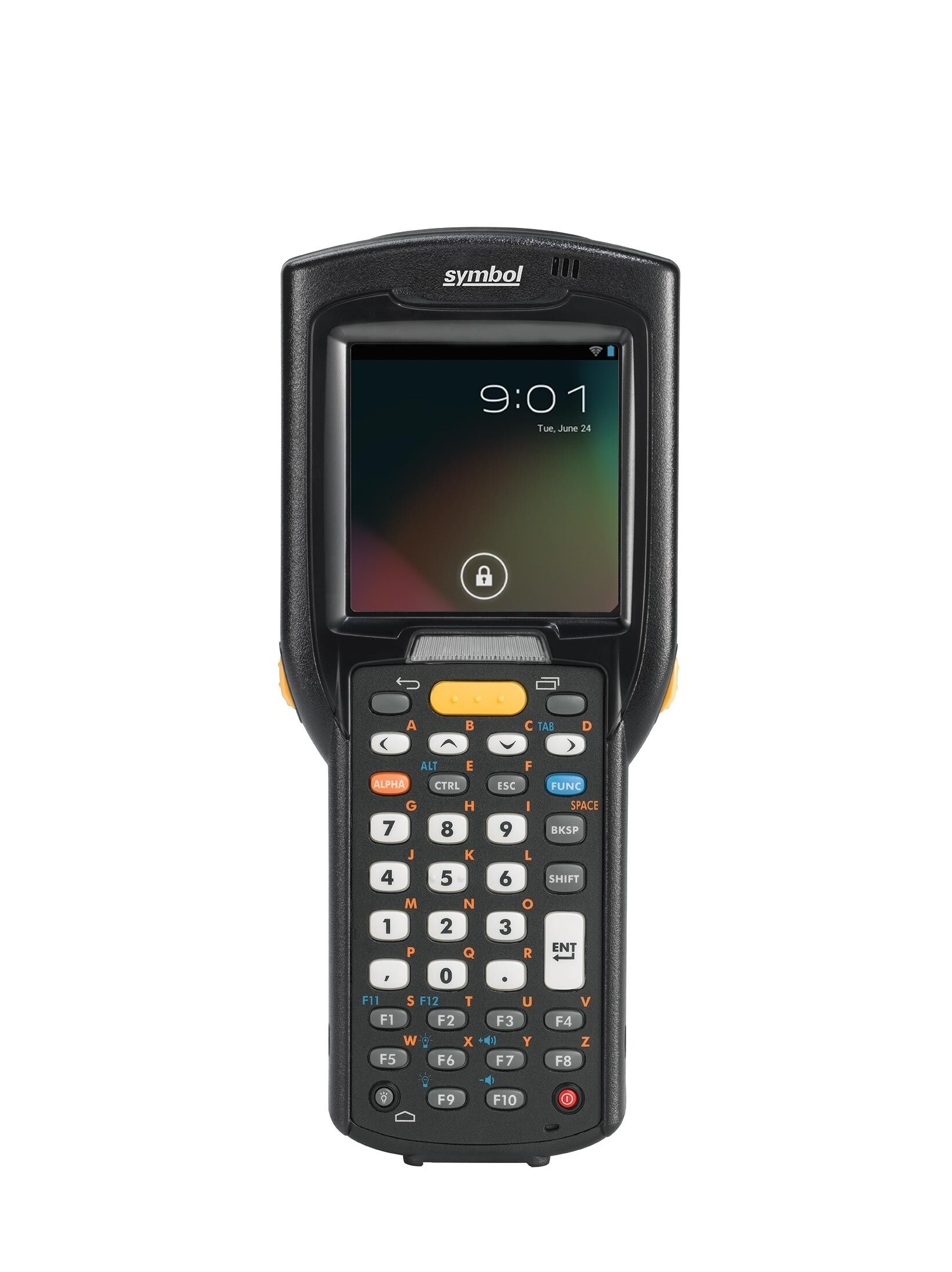

Mobile Computer MC3200

Zebra Products In Qatar

RE-SET THE BAR FOR PRODUCTIVITY IN INVENTORY MANAGEMENT WITH THE NEXT GENERATION IN THE CLASS LEADING MC3000 SERIES. Customer satisfaction and the success of your business are tightly tied to how efficiently and accurately you can manage your inventory. You need to know what you have on hand at all times to prevent costly out-of stocks, while your workers need to rapidly and accurately pick orders to ensure that customers receive the right items, on time. Now with more options, this cost-effective, lightweight and rugged mobile computer provides the tools your workers need to complete inventory-related tasks in seconds, from the store sales floor to the loading dock.

RE-SET THE BAR FOR PRODUCTIVITY IN INVENTORY MANAGEMENT WITH THE NEXT GENERATION IN THE CLASS LEADING MC3000 SERIES. Customer satisfaction and the success of your business are tightly tied to how efficiently and accurately you can manage your inventory. You need to know what you have on hand at all times to prevent costly out-of stocks, while your workers need to rapidly and accurately pick orders to ensure that customers receive the right items, on time. Now with more options, this cost-effective, lightweight and rugged mobile computer provides the tools your workers need to complete inventory-related tasks in seconds, from the store sales floor to the loading dock.



Dimensions

Gun: 7.59 in. L x 3.18 in. W x 6.5 in. D 192.7 mm L x 80.8 mm W x 166 mm D, Rotating Turret: 8.37 in. L x 3.22 in. W x 1.57 in. D 212.6 mm L x 81.9 mm W x 40.0 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D, Straight Shooter: 7.49 in. L x 3.22 in. W x 1.78 in. D 190.4 mm L x 81.9 mm W x 45.2 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D

Weight

Gun: 18.0 oz./509 g (with extended battery), Rotating Turret: 13.13 oz./372 g (with standard battery, Straight Shooter: 12.88 oz./365 g

Display

3.0 in. color (TFT) (320 x 320) display

Touchpanel

Chemically strengthened glass

Backlight

LED backlight

Keypad Options

28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric

EXPANSION SLOT

User accessible Micro SD slot; (supports up to 32 GB microSDHC)

Notification

audio, LEDs

Audio

microphone and headset connector (2.5 mm jack), speaker

CPU

Dual core 800 MHz OMAP4 Processor (Standard) or Dual core 1 GHz OMAP4 processor (Premium

Operating System

Choice of Windows Embedded Compact 7.0 (Standard or Premium) or Android 4.1 (Premium)

Memory

1 GB RAM/4 GB Flash (Premium), 512 MB RAM/2 GB Flash (Standard)

Power

PowerPrecision Li-Ion batteries, Two options: High Capacity 4800 mAh or Standard Capacity 2740 mAh (not available on gun form factor)

Operating Temperature

-4° F to 122° F/-20° C to 50° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Battery Charging Temp

32° F to 104° F/0° C to 40° C

Humidity

10 – 95% non-condensing

Sealing

IP54 per IEC specification

Drop Specification

Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G

Tumble Specification

500 1.64 ft./0.5 m tumbles (1,000 drops) at room temperature per IEC 68-2-32 tumble specifications

Electrostatic Discharge (ESD)

± 10kV direct discharge, ± 10kV indirect discharge, EN61000-4-2; ± 20kV Air discharge

Scanning

1D Laser(1): SE965 Standard Range with Adaptive Scanning (all models), 1D/2D Imager: SE4750-SR, 4750-MR (Straight Shooter and Gun models only)

Motion Sensor

Android: 3-axis accelerometer that detects screen rotation, CE7.0/Premium model: 3-axis accelerometer that enables motion-sensing applications on dynamic screen orientation, power management and free-fall detects

Radio

IEEE® 802.11a/b/g/n

Security

Authentication:TLS; TTLS (CHAP(3), MSCHAP, MSCHAPv2, PAP or MD5(3)); PEAP (TLS(3), MSCHAPv2, GTC); LEAP; FAST (TLS(3), MSCHAPv2, GTC), Encryption:WEP40/WAP104, TKIP and AES, Other: Wi-Fi CCXv4 certified; supports IPv6; FIPS 140-2 certified (Android), Q4-2014 (WinCE), Security Modes:Legacy(3), WPA and WPA2 (Personal or Enterprise); 802.1X

Antenna

Internal antenna w/diversity

Data Rates

802.11a/g: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11n: up to 65 Mbps (72 Mbps w/SGI)

Operating Channels

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Chan 1-13 (2412-2472 MHz), Chan 36-165 (5180 – 5825 MHz)

Bluetooth¹

Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna

Voice and Audio

High-quality speakerphone, PTT (client included), PTT will support headset and speakerphone mode, wireless (Bluetooth) and wired headset support

I/O

USB 1.1 Full Speed Host/ Client or RS232
