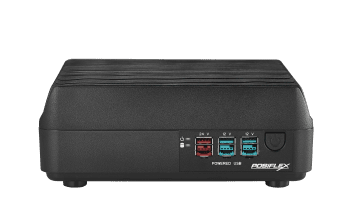

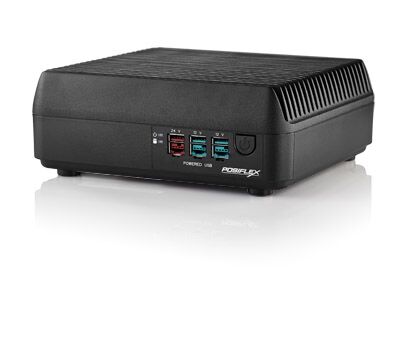

POS Box TX-5300E

Posiflex Products

TX-5500 and TX-5300 Series are the latest high-end fan-free POS Boxes. Incorporating leading CPU Technology – 8th generation Intel® Coffee Lake processor, TX-5500 and TX-5300 series provide unmatched performance while juggling multiple program with ease.

TX-5500 and TX-5300 Series are the latest high-end fan-free POS Boxes. Incorporating leading CPU Technology – 8th generation Intel® Coffee Lake processor, TX-5500 and TX-5300 series provide unmatched performance while juggling multiple program with ease.



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel Coffee Lake Core i3-8100T (default)

System Memory

DDR4 SO-DIMM x 2, max. 32 GB

Storage Device

SATA III x 2 + M.2 x 1 (supporting SATA)

Power Supply

12V / 150W

SERIAL PORT

6, DB9 x 4, COM5/COM6 via optional cable from service window, 5V/12V support on all COM ports

PARALLEL PORT

1

STANDARD USB PORT

4, USB 3.0 x 4

POWERED USB PORT

3, 24V x 1 + 12V x 2

LAN PORT

10/100/1000 Mb x 2

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors ; HDMI x 1; optional 2nd VGA

CR PORT

1, control 2 CR via optional Y-cable, support 24V

Audio

1 x 2W speaker + Mic-in/Line-out

EXPANSION SLOT

M.2 x 1 for WIFI

• • BUILT-IN OPTIONS

• • • • • • • • • •

WIFI

Optional M.2 WiFi/BT module

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

220 x 202 x 83

Weight

2.75

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
