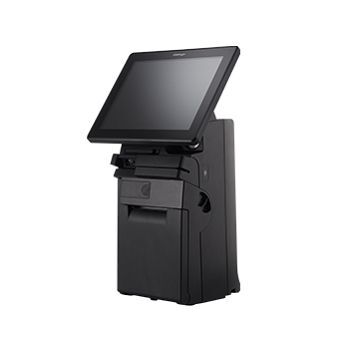

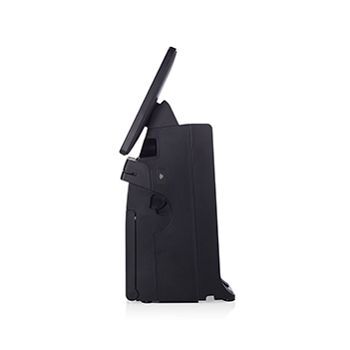

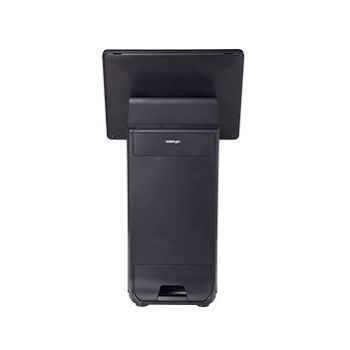

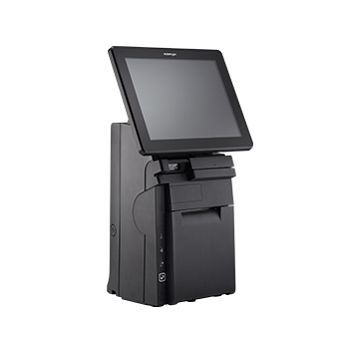

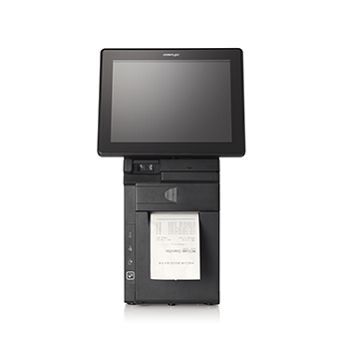

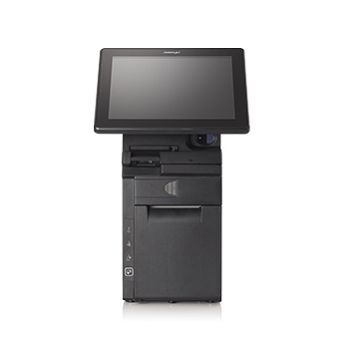

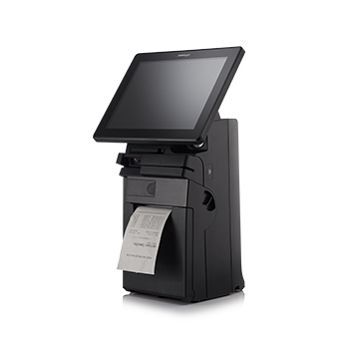

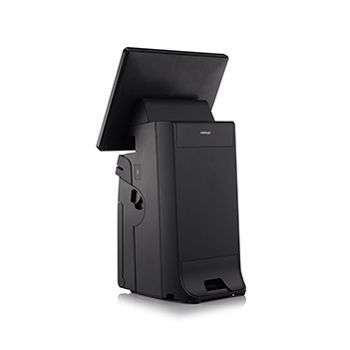

HS-3310A

Posiflex Products

HS-3310A/HS-3314A are the best value options for Mom & Pop stores where the counter space needed to be maximized smartly. They are Android based all-in-one POS featuring a detachable printer for easy maintenance, and can be integrated the most widely used peripheral options in daily POS operation.

HS-3310A HS-3314A are the best value options for Mom & Pop stores where the counter space needed to be maximized smartly. They are Android based all-in-one POS featuring a detachable printer for easy maintenance, and can be integrated the most widely used peripheral options in daily POS operation.HS-3310A



• • SPECIFICATION

• • • • • • • • • •

Processor

Rockchip RK3399

System Memory

DDR4 2GB, upgradable to 4 GB

Storage Device

16 GB eMMC + micro SD slot x 1, upgradable to 32 GB

Power Supply

24V/60W

Built In Printer

3” detachable printer w/auto cutter, 250 mm/sec (max.)

OS Support

Android 9.0

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

9.7" TFT LCD

RESOLUTION

1024 x 768

TOUCH

PCAP touch with multi-touch support

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

2, DB9 x 2

STANDARD USB PORT

3, USB 3.0 x 1 + USB 2.0 x 2

OTG USB

1 x micro USB

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

1 x HDMI, SDK available for software integration

CR PORT

1, control 2 CR via optional Y-cable (printer driven)

Audio

2W speaker x 1+ lineout x 1

EXPANSION SLOT

Mini-PCIe slot x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

224.5 x 198 x 434

Weight

4.2

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 50°C, 20%RH – 90%RH

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

MSR

3 tracks ISO or JISII (HID/VCOM selection)

Finger Print Sensor

Optical type

WIFI

Mini-PCIe WiFi/BT module

Scanner

2D barcode scanner

iBUTTON

Yes (cannot coexist with FPU)

4G COMMUNICATION

Single SIM slot, selected band support
