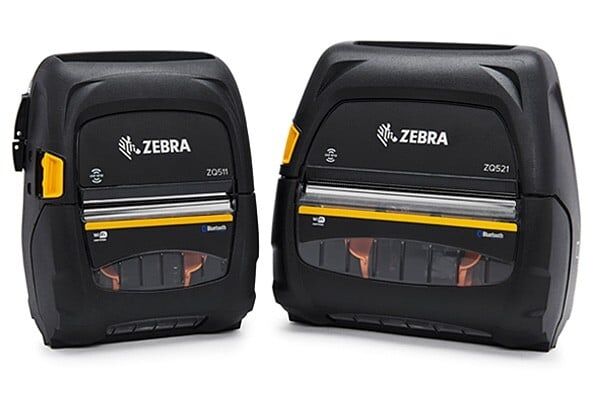

ZQ511/ZQ521 Plus RFID Printer

Zebra Products In Qatar

ON-DEMAND, ON-THE-GO UHF RFID PRINTING ENGINEERED FOR THE TOUGHEST ENVIRONMENTS



Zebra’s ZQ500 Series just got tougher. The premium ZQ511 and ZQ521 printers — both available in RFID models — pair best-in-class mobile printing with a military-grade design that is rugged to the max. Print and encode Ultra High Frequency (UHF) RFID labels on-demand, anywhere. Experience extreme durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and unmatched battery capacity mean this printer will work as hard and long as you do.

TOUGH. RELIABLE. BUILT TO ENDURE.

The Most Rugged Printers on the Market

You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3 ft./1 m, the ZQ511 and ZQ521 RFID printers can withstand more than the average mobile printer.

Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.

If this isn’t enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6 ft. to 10 ft. and improves the IP rating to IP65.

Built to Last

New over-molding helps increase the longevity and keeps your ZQ500 RFID Series looking good over the life of the printer.

• • SPECIFICATION

• • • • • • • • • •

Operating System

Link-OS®

Print Method

Direct Thermal

RESOLUTION

203 dpi/8 dots per mm

Memory

128MB RAM, 256MB Flash (48 MB User Available)

Battery

Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Maximum Print Width

ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in.

Maximum Print Speed

Up to 4 ips (100 mm/s)

Media Sensors

BlackBar, Gap, Media Door Open, Media Out

Programming Languages

CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers.

Cutter

Tear bar

Print Direction

Horizontal and vertical

Dimensions

ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H

Volume

ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in.

Weight

ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs

Media Width

ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in.

Maximum Roll Outside Diameter

40 mm/1.57 in.

Media Holder

Drop-in fixed media width (clamshell)

Media Thickness

0.06 mm/0.0023 in. to 0.16 mm/0.0063 in.

Media Type

Direct thermal: receipt paper, labels, linerless labels

Minimum Receipt Length

12.5 mm/0.49 in.

Maximum Receipt Length

Unconstrained in line mode

Label Counter

Odometer

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

-15° to +50° C/5° to +122° F

Storage temperature

-20° to 60° C/-4° to +140° F

Charging Temperature

0° to 40°C/0° to +104° F

Operating Humidity

10% to 90% non-condensing

IP Rating

IP54

Drop Specification

1.5 m/5 ft. tested over operating temp. range

Tumble Specification

500 free falls from 1 m/3.3 ft.

Vibration

MIL STD 810

COMMUNICATION AND INTERFACE CAPABILITIES

• • • • • • • • • •

WLAN¹

802.11ac

WLAN Security

801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2

WLAN Features Supported

802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode

Internet Protocols over WLAN

DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP

Bluetooth¹

Dual Radio (802.11ac + BT BR/EDR LE4.0)

USB 2.0

Client, Type- C™ connector

NFC

Passive NFC tag

Host OS Supported

Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)

User Interface

LEDs

Barcode Symbologies

• • • • • • • • • •

Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E

2D

Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL

BRAND

RFID Features

• Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
• Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
• RFID job-monitoring tools track RFID performance
• RFID ZPL commands provide compatibility with existing Zebra RFID printers
• Support for industry standard multi-vendor chip-based serialization (MCS)
• Supports block permalocking of user memory compatible with ATA Spec 2000
• Integrated RFID Reader/Encoder
• Prints and encodes tags with a minimum pitch of 16 mm

Standard Features

• Android, Apple iOS, Windows® Mobile connectivity
• Bluetooth specification 4.1 EDR + LE
• WLAN 802.11ac
• Fast roaming 802.11r supported
• 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
• USB On-The-Go ports (with optional strain relief)
• Power Smart Print Technology—anticipates upcoming printing to optimize battery consumption and print speed
• Direct thermal printing of barcodes, text and graphics
• IP54 rated for protection against solid and liquid ingress
• MIL-STD 810G certified for drop and shock
• Tolerance of multiple drops from 6.6 ft./2 m to concrete
• Tumble testing per the IEC68-2-32 spec with 1300 free falls from 3.3 ft./1 m
• Simple easy-to-read LCD with large icons for battery and wireless status
• Dual-sided tear bar which allows for clean tears in either direction
(not available with linerless SKUs)
• Supports vertical and horizontal printing
• Printer can be used in any orientation
• Center loading, adjustable for variable roll widths
• “Clamshell” design for easy media loading
• Label odometer
• XML support
• Resident fixed and scalable fonts
• Mark media sensing using fixed center position sensors
(Note: RFID models do not support gap sensing.)
• Cold Temperature Compensation mode-optimizes/balances print speeds to allow for better print performance at lower temperatures
• PPME, Mirror, SNMP, WebServer, AirWatch® and Soto Connectors and
Wavelink Avalanche®
• NTP (Network Time Protocol) support via Wi-Fi
• Sleep mode supported. Wake on Bluetooth, Wi-Fi and Touch
• Real time clock (RTC) supported for time stamp certificates in WLAN SKU’s only
• QR code links to web-based help pages; not displayed on LCD
• Zebra® Print Touch simplifies Bluetooth pairing and launches web-based pages with Near Field Communication (NFC) enabled devices

Physical Characteristics

Dimensions ZQ511: 5.9 in. L x 4.7 in. W x 2.4 in. H
150 mm L x 120 mm W x 62 mm H

ZQ521: 6.2 in. L x 6.1 in. W x 2.6 in. H
158 mm L x 155 mm W x 67 mm H

Weight with Battery ZQ511: 1.39lbs/0.63 kgs
ZQ521: 1.73lbs/0.79 kgs

Printer Specifications

Operating System Link-OS®
Resolution 203 dpi resolution (8 dots per mm)
Memory 256MB RAM; 512MB Flash (standard)
8MB RAM; 64MB Flash (user available)
Maximum Print Width ZQ511: 2.83 in./72mm
ZQ521: 4.09 in./104mm
Maximum Print Speed    Up to 5 in./127 mm per second (with Draft Mode enabled)
Media Sensors Black mark media sensing using fixed center position sensors
Print Length  Maximum: 39 in.
Power 3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery, with optional 6500 mAh extended battery

Media Characteristics

Minimum / Maximum Media Width ZQ511: 1.38 in./35 mm to 3.15 in./80 mm+1 mm
ZQ521: 2.0 in./50.8 mm to 4.45 in./113 mm+1mm
Maximum Media Roll Size ZQ511: 2.0 in./51 mm
ZQ521: 2.24 in./57 mm
Maximum Media Thickness 0.0063 in. (0.1600 mm) for labels and 0.0055 in.
(0.1397 mm) for tag/receipt
Minimum Media Thickness 0.05842mm (0.0023 in.) for all media
Media Types Black-mark RFID Label, Receipt, Tag

Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing

Operating Characteristics

Environment Operating Temperature: -4°F to 131°F/-20°C to 55°C
Operating Humidity: 10% to 90% non-condensing
Charging Temperature: 32°F to 104°F/0°C to 40°C
Cradle Temperature: 32°F to 122°F/0°C to 50°C
Storage Temperature: -22°F to 150°F/-30°C to 66°C
Storage Humidity: 10% to 90% non-condensing
Agency Approvals Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN55024, ICES- 003, EN55032, and EN301489
Security FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information

Firmware

CPCL and ZPL® programming languages

ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Options

• Non-RFID encoding
• Linerless printing (with silicone platen roller only)

Barcode Symbologies

CPCL Barcode Symbologies
• Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
• Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
• 2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39

ZPL Barcode Symbologies
• Barcode Ratios: 2:1, 3:1, 5:2, 7:3
• Linear Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Planet Code, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (RSS)
• 2D Barcodes: PDF417, MicroPDF-417, Code 49, TLC39, Maxicode, Codablock, Data Matrix, QR code, Aztec

Fonts and Character Sets

Standard Fonts 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed, contains UFST® from Agfa Monotype Corporation)
Included in All Models and Part Numbers Scalable Fonts: Swiss721 (supporting Latin, Cyrillic, Hebrew and Arabic characters)
Additional Asian Fonts Supported Group A: Part Numbers supporting Indonesia, Taiwan, Korea, Malaysia, Australia, New Zealand, Sri Lanka, India include: Scalable Traditional Chinese Characters: NotoMono, Bitmap: 24×24 MKai, 16×16 New Sans MT, Scalable Korean Characters: NotoMono

Group B: Part Numbers supporting, Singapore, Thailand, Philippines, HongKong and Vietnam include: Scalable Traditional Chinese characters: NotoMono and Bitmap 16×16 NewSans MT. Scalable Thai Characters: Angsana, Scalable Vietnamese Characters: SourceCodePro and Bitmap 16×16 Utah

Group C: Part Numbers supporting China include: Scalable Simplified Chinese Characters: Hans and Bitmap 24×24 Msung, 16×16 SimSun

Group J: Part Numbers supporting Japan include: Scalable NotoMono and Square Gothic J MT, Bitmap 16×16, 24X24 Square Gothic J MT

Communication and Interface Capabilities

ZebraNet® 802.11ac radio with support for:
• WPA and WPA2 with AES encryption
• 802.1x (with WEP, WPA, or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d, 802.11i, 802.11r
• Simultaneous Bluetooth 4.2 dual radio
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

Bluetooth 4.1 (Classic and BLE) radio
• Security models 1-4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding

Cabled Communications Specifications
• USB 2.0 full-speed on-the-go interface (12 Mbps)
• Micro-AB Connector with optional strain relief
