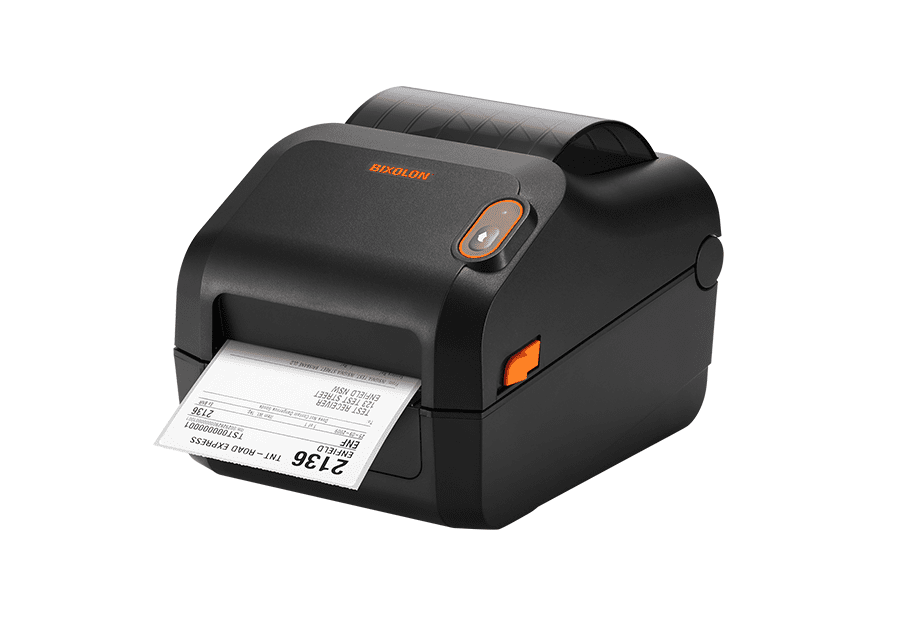

Desktop Label Printer XD3-40
The orange and black style of the new XD3-series allows you to immediately recognise its BIXOLON origin. Offering a colour scheme aligned to new Mobile and Industrial printers, the 4-inch (118mm) Direct Thermal XD3-40d and Thermal Transfer XD3-40t encompass the durable, easy-to-use design as its other Desktop models, but advances the feature set whilst responding to budget needs. The optional peeler adds to the standard tear-off media handling option of a printer capable of handling receipts, tags and labels in either roll or fanfold formats. Interface connectivity choices of locally wired USB and Serial or wired 10/100 Ethernet. A consistent look across portfolios, the 4-inch (118mm) XD3 series offer common control with seamless handling of BIXOLON’s own command language alongside other leading programming languages and can be used in direct or standalone mode of operation.
The orange and black style of the new XD3-series allows you to immediately recognise its BIXOLON origin. Offering a colour scheme aligned to new Mobile and Industrial printers, the 4-inch (118mm) Direct Thermal XD3-40d and Thermal Transfer XD3-40t encompass the durable, easy-to-use design as its other Desktop models, but advances the feature set whilst responding to budget needs. The optional peeler adds to the standard tear-off media handling option of a printer capable of handling receipts, tags and labels in either roll or fanfold formats. Interface connectivity choices of locally wired USB and Serial or wired 10/100 Ethernet. A consistent look across portfolios, the 4-inch (118mm) XD3 series offer common control with seamless handling of BIXOLON’s own command language alongside other leading programming languages and can be used in direct or standalone mode of operation.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Print Method | XD3-40d : Direct Thermal, XD3-40t : Thermal Transfer or Direct Thermal |
| Print Speed | Up to 5 ips (127 mm/sec) |
| PRINT RESOLUTION | 203 dpi |
| PRINT WIDTH | Up to 104 mm |
| PRINT LENGTH | Up to 1,000 mm |
| SENSOR | Head open, Reflective (adjustable), Ribbon-End (XD3-40t), Transmissive(Fixed) |
| Media Type | Black Mark, Continuous, Fan-Fold, Gap, Notch |
| Media Width | 15 ~ 118 mm |
| Media Roll Size | Up to 127 mm |
| Media Thickness | 0.06 ~ 0.20 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 25.4 ~ 38.1mm |
| Ribbon Type | Outside, Resin, Wax, Wax/Resin |
| Ribbon Width | 33 ~ 110 mm |
| Ribbon Length | Up to 300 m |
| Core Inner Diameter | 25.4 mm, 12.7 mm |
| DIMENSION (W X D X H IN MM) | XD3-40d : 181 x 222 x 168 mm, XD3-40t : 210 x 284 x 186 mm |
| Weight | XD3-40d : 1.7kg (3.75 lbs.), XD3-40t : 2.6kg (5.73 Ibs.) |
| Electrical | 50/60Hz, EnergyStar Certified, External Power Adaptor 100-240V AC |
| Memory | 64 MB SDRAM, 128 MB Flash |
| Interface | • • • • • • • • • • |
| Standard Interface | USB |
| Optional Interface | USB + Serial + Ethernet |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Storage: -20 ~ 60℃ (-4 ~ 140℉), XD3-40d: 0 ~ 40℃ (32 ~ 104℉), XD3-40t: 5 ~ 40℃ (41 ~ 104℉) |
| • •Fonts/Graphics/Symbologies | • • • • • • • • • • |
| Fonts | Bitmap Fonts (SLCS , BPL-Z, BPL-E), Scalable Fonts (SLCS, BPL-Z), Unicode supported (UTF-8, UTF-16LE,UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | • • • • • • • • • • |
| 1D | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS-14), IMB, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, UPC-A, UPC/EAN extensions |
| 2D | Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 |
| Optional Accessories | External Paper Supply, Peeler |
| BRAND |
