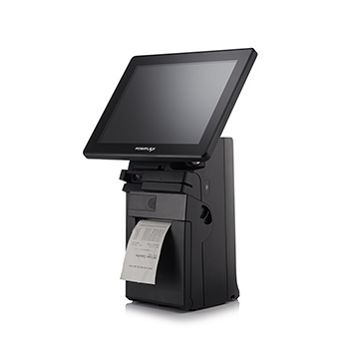

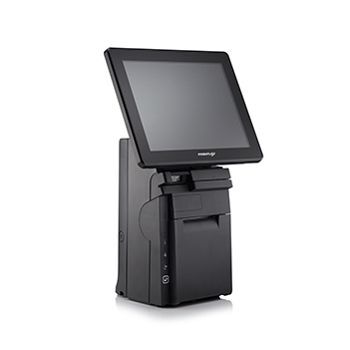

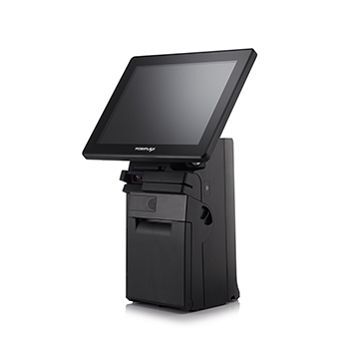

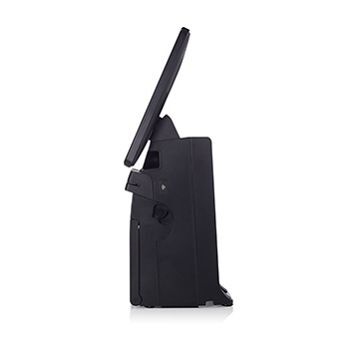

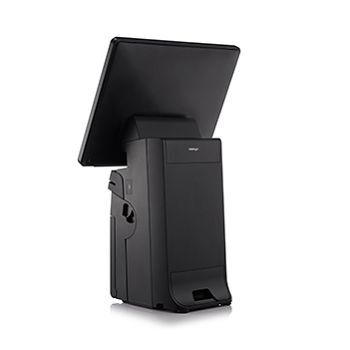

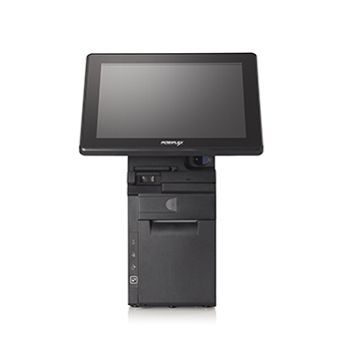

All-In-One JIVA HS-6512W

Posiflex Products

The HS-6512 Series is the new high-end all-in-one POS terminal that runs on Intel Skylake-U Core i3 processor. It packs innovativeness and functionality in compact design with stylish look, which is ideal for retail businesses where space is at premium.

The HS-6512 Series is the new high-end all-in-one POS terminal that runs on Intel Skylake-U Core i3 processor. It packs innovativeness and functionality in compact design with stylish look, which is ideal for retail businesses where space is at premium.HS-6512W



• • SPECIFICATION

• • • • • • • • • •

Processor

Intel 7th Generation Kaby Lake-U Core i3 Processor

System Memory

DDR4 SO-DIMM slot x 1, max 16 GB

Storage Device

SATA Storage x 1

Power Supply

24V/100W

Built In Printer

3” detachable printer w/auto cutter, 250 mm/sec (max.)

OS Support

Windows 10 IoT 64 bit

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

12” TFT LCD

RESOLUTION

1024 x 768

TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)

• • I/O & EXPANSION

• • • • • • • • • •

SERIAL PORT

3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports

STANDARD USB PORT

USB 2.0 x 4

PARALLEL PORT

Yes

LAN PORT

10/100/1000 Mb x 1

DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors

CR PORT

1, control 2 CR via optional Y-cable (printer driven)

PS/2 PORT

Yes

Audio

Line-out x 1

EXPANSION SLOT

M.2 x 1

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

297 x 198 x 473

Weight

5.3

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

• • BUILT-IN OPTIONS

• • • • • • • • • •

MSR

3 tracks ISO or JISII (HID/VCOM selection)

Finger Print Sensor

Optical type

WIFI

M.2 WiFi/BT module

RFID READER

Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)

Scanner

2D barcode scanner

iBUTTON

Yes (cannot coexist with FPU)

4G COMMUNICATION

Single SIM slot
