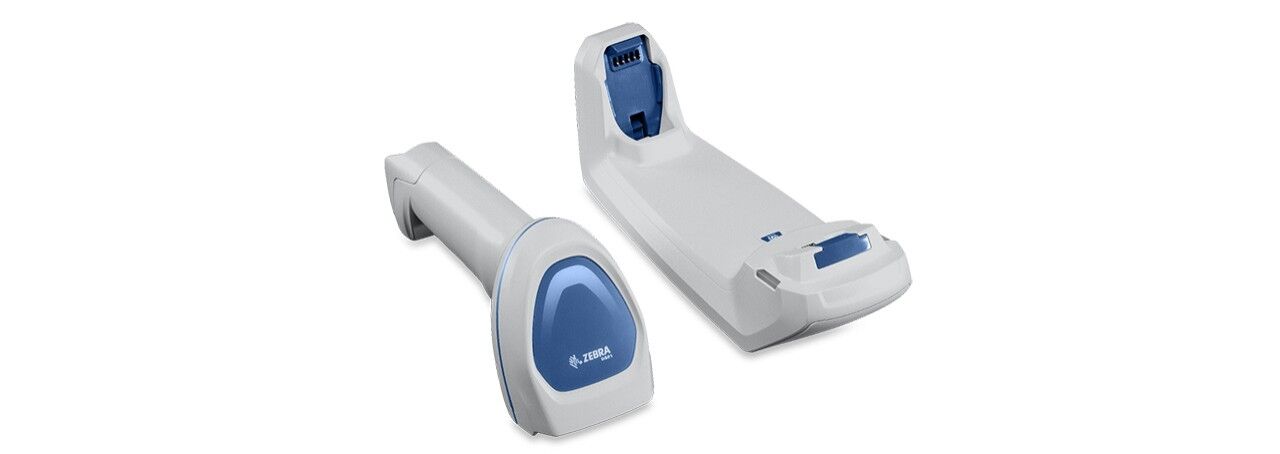

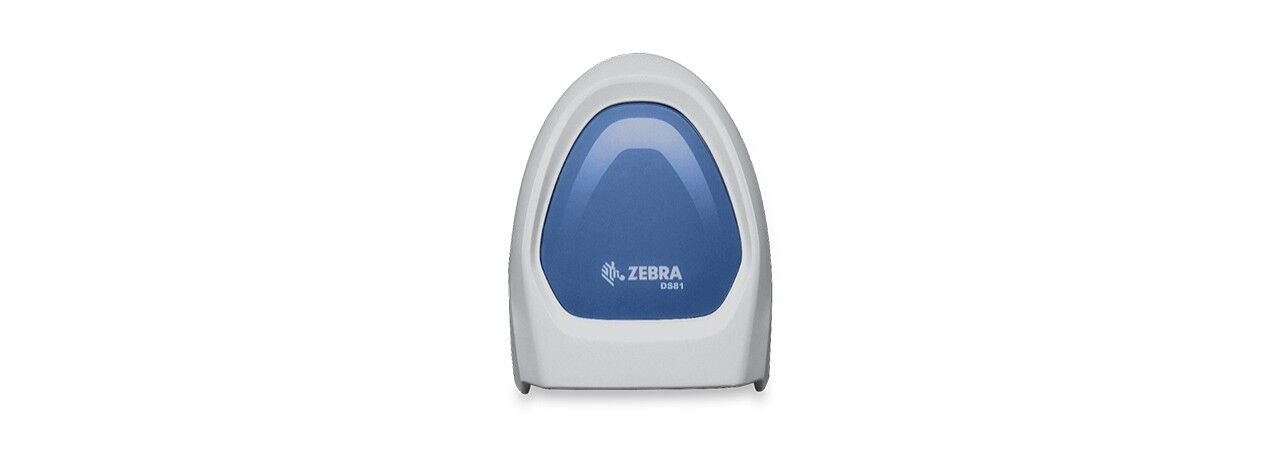

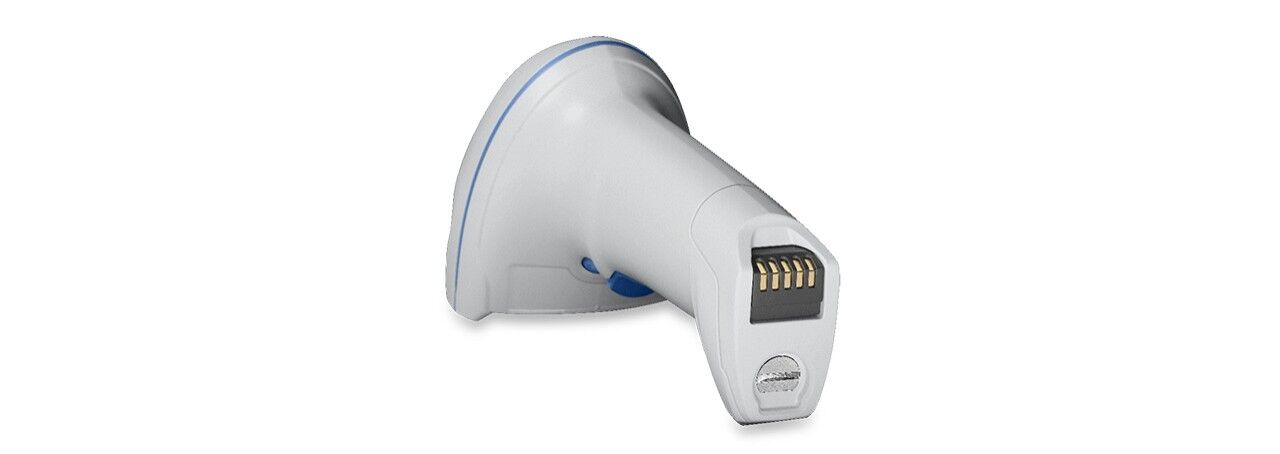

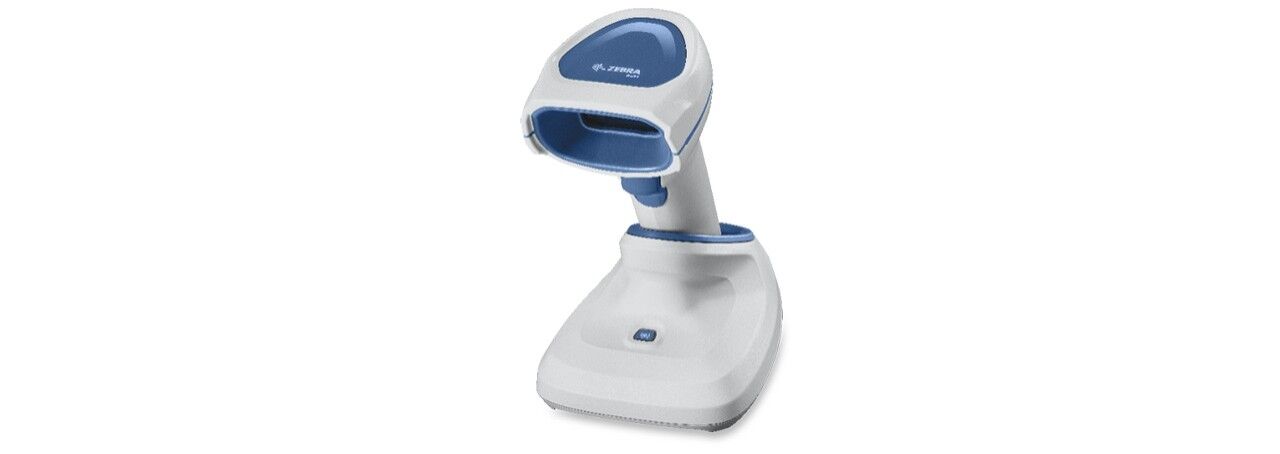

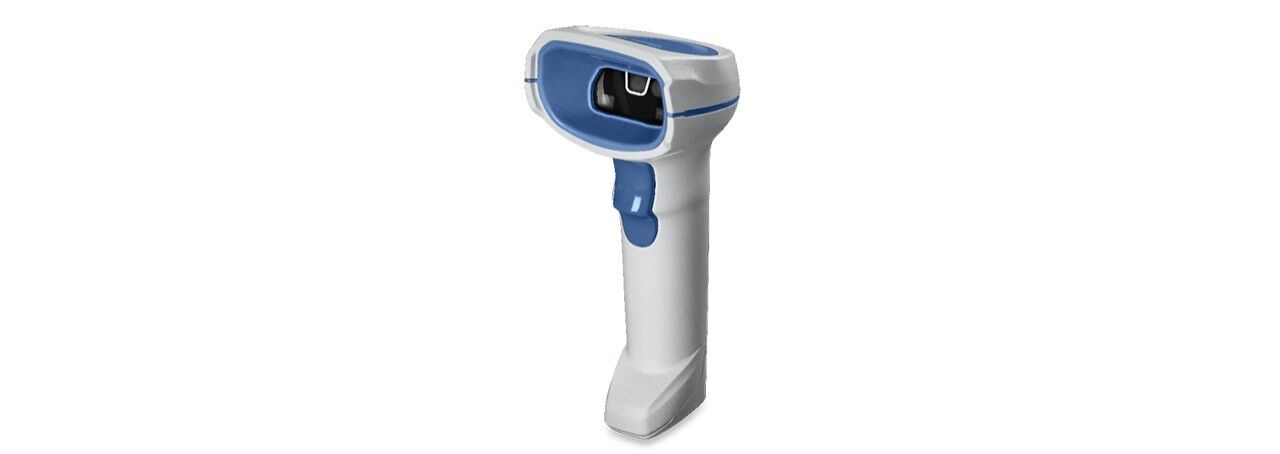

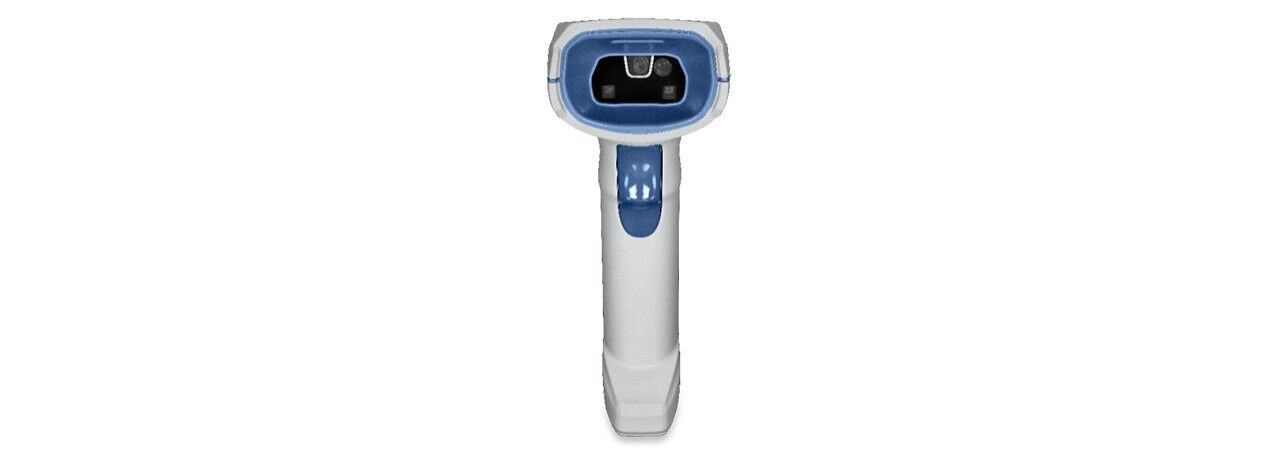

Healtcare Scanner DS8100-HC

Zebra Products In Qatar

As a healthcare provider, you need to deliver the very best in care, every second of every day. That means giving your healthcare professionals the tools they need to improve patient outcomes, increase productivity and streamline everyday processes. With the purpose-built DS8100 Series for Healthcare, you can. With the ability to instantly capture the most difficult to read barcodes, an industry-first housing that offers maximum protection against the spread of bacteria, Night Mode with Vibrate for can’t miss feedback on decodes and a built-in lamp, the DS8100-HC Series can seamlessly integrate into existing healthcare workflows to boost process efficiencies and ensure that patients are left undisturbed until necessary. Combined with swappable power sources — a PowerPrecision+ battery or PowerCapTM capacitor1 — and unrivaled manageability tools to keep your scanners up, running and in the hands of your staff, the DS8100-HC Series is the ideal solution to enhance patient safety and the efficiency of point-of-care operations.

As a healthcare provider, you need to deliver the very best in care, every second of every day. That means giving your healthcare professionals the tools they need to improve patient outcomes, increase productivity and streamline everyday processes. With the purpose-built DS8100 Series for Healthcare, you can. With the ability to instantly capture the most difficult to read barcodes, an industry-first housing that offers maximum protection against the spread of bacteria, Night Mode with Vibrate for can’t miss feedback on decodes and a built-in lamp, the DS8100-HC Series can seamlessly integrate into existing healthcare workflows to boost process efficiencies and ensure that patients are left undisturbed until necessary. Combined with swappable power sources — a PowerPrecision+ battery or PowerCapTM capacitor1 — and unrivaled manageability tools to keep your scanners up, running and in the hands of your staff, the DS8100-HC Series is the ideal solution to enhance patient safety and the efficiency of point-of-care operations.



Dimensions

Corded DS8108-HC and Cordless DS8178-HC: 6.6 in. H x 2.6 in. W x 4.2 in. D 16.8 cm. H x 6.6 cm. W x 10.7 cm. D, Presentation Cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D 7.4 cm. H x 9.4 cm. W x 12.2 cm. D, Standard Cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D 7.1 cm. H x 8.4 cm. W x 21.1 cm. D

Weight

Corded DS8108-HC: 5.4 oz./154 g, Cordless DS8178-HC: 8.3 oz./235.3 g, Desk/Wall Cradle: 7.1 oz./202 g, Presentation Cradle: 6.5 oz./182 g

Input Voltage

DS8108-HC: 4.5 to 5.5VDC, DS8178-HC Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC

Current

Corded DS8108-HC Operating Current at Nominal Voltage (5.0V): 450 mA Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V

COLOR

Healthcare White

Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support

Supports over 90 international keyboards

FIPS Security Certification

Certified Compliant with FIPS 140-2

Apple MFi Certification

MFi certified for use with iPhones and iPads (cordless DS8178-HC)

User Indicators

beeper (adjustable tone and volume), dedicated Power Charge Gauge, Direct Decode Indicator, Good Decode LEDs, rear view LEDs

Light Source

Aiming pattern: True Green (528 nm) Circular

Illumination

Two (2) warm white LEDs

Imager Field of View

48° H x 37° V nominal

Image Sensor

1,280 x 960 pixels

Minimum Print Contrast

16% minimum reflective difference

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° – 360°

• • Imaging Characteristics

• • • • • • • • • •

Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

109 PPI on an A4 document

Minimum Element Resolution

Code 39 – 3.0 mil; Code 128 – 3.0 mil; Data Matrix – 5.0 mil; QR Code – 5.0 mil; PDF – 4.0 mil

Operating Temperature

Presentation Mode: 32° to 104° F/0° to 40° C, Scanner: 32° to 122° F/0° to 50° C

Charging Temperature

32° to 104° F/0° to 40° C

Storage temperature

-40° to 158° F/-40° to 70° C

Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Tumble Specification

Designed to withstand 2,000 1.5 ft./0.5 m tumbles3

Sealing

IP52

Approved Cleaners

Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.

Electro-Static Discharge

DS8108-HC/DS8178-HC and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient light

0 to 9,000 Foot Candles/0 to 96,840 Lux

• • Radio Specifications

• • • • • • • • • •

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles

Adjustable Bluetooth Power

Class 1: Output power adjustable down from 4 dBm in 8 Steps Class 2: Output power adjustable down from 2 dBm in 8 Steps

Power

• • • • • • • • • •

PowerPrecision+ Li-Ion Battery

Capacity: 2500 mAh, Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB, Charge time from empty to full: 9 hours over USB, Number of scans from full charge: 65,0004

PowerCap Capacitor

Capacity: 440 F, Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB, Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB, Charge time from empty to full: 30 min over USB, Number of scans from full charge: 2,0004, Number of scans from Ready-To-Scan at 15% of full charge: 100, Number of scans from Ready-To-Scan at 20% of full charge (default): 200

Decode Capability

• • • • • • • • • •

1D

Base 32 (Italian Pharma), Codabar/NW-7, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI/Plessey, UPC/EAN

2D

Aztec, Composite Codes, Data Matrix, DotCode, Dotted DataMatrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Postal Codes, QR code, SecurPharm, TLC 39
