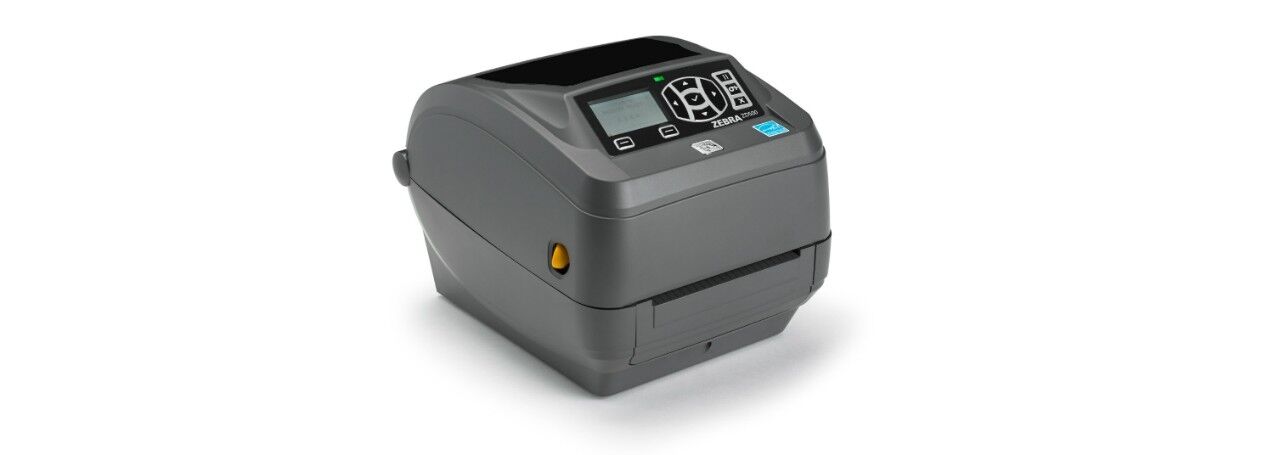

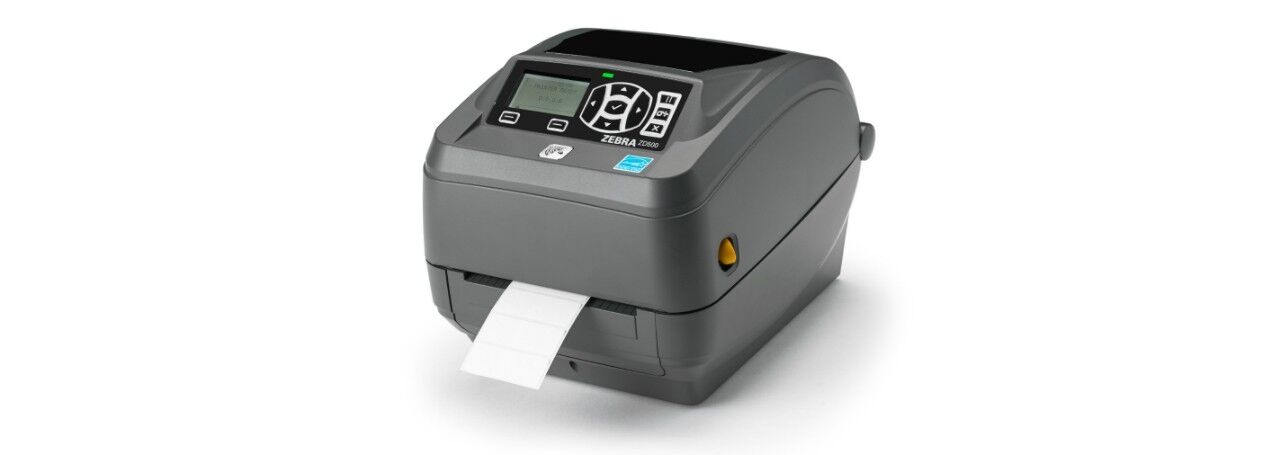

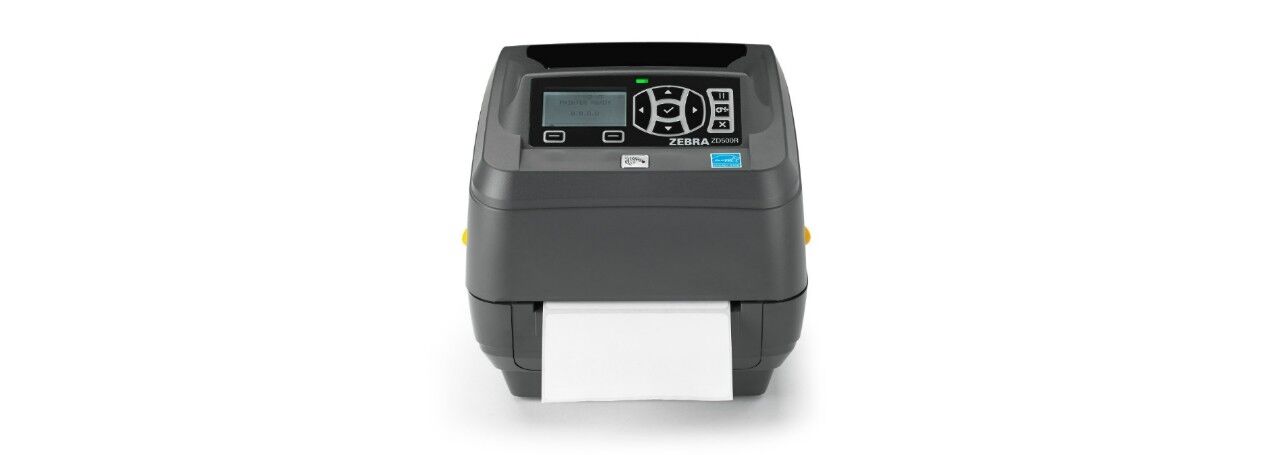

RFID Printers ZD500R

Zebra Products In Qatar

Extending Zebra’s broad range of RFID printers, the ZD500R™ delivers UHF RFID printing and encoding right to your desktop. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration. Intuitive to use, it is an ideal choice for applications where technical support staff is not available, such as retail in-store exception tagging.

Extending Zebra’s broad range of RFID printers, the ZD500R™ delivers UHF RFID printing and encoding right to your desktop. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration. Intuitive to use, it is an ideal choice for applications where technical support staff is not available, such as retail in-store exception tagging.



• • SPECIFICATION

• • • • • • • • • •

RFID

Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines, Integrated ThingMagic® RFID Reader/Encoder, Prints and encodes tags with a minimum pitch of 0.6"/16 mm, RFID job monitoring tools track RFID performance, RFID ZPL commands provide compatibility with existing Zebra RFID printers, Support for industry standard multi-vendor chip-based serialization (MCS), Supports block permalocking of user memory compatible with ATA Spec 2000, Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

RESOLUTION

203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional)

Memory

128 MB SDRAM memory, 256 MB on-board Flash memory

Maximum Print Width

4.09"/104 mm

Maximum Print Speed

4"/102 mm per second (300 dpi), 6"/152 mm per second (203 dpi)

Media Sensors

Multi-position transmissive and full-width reflective sensors

Maximum Print Length

39.0"/991 mm

Media Width

0.75"/19 mm – 4.25"/108 mm

Media Roll Size

Core inner diameter: 0.5"/12.7 mm, 1.0"/25.4 mm, 1.375"/35 mm, 1.5"/38 mm, 3"/76 mm, Maximum outside diameter: 5"/127 mm

Media Thickness

.003"/0.075 mm to .012"/0.305 mm

Media Type

, die-cut or ccontinuous direct thermal or thermal transfer labels with or without black line, continuous receipt paper, Roll-fed or fan-fed, tag stock, wristbands

Label Liner and Length

Maximum non-continuous: 39"/991 mm, Minimum with cutter: 1"/25.4 mm, Minimum with label present sensor used: 0.5"/12.7 mm, Using tear off mode: 0.25"/6.35mm

Ribbon Width

1.33"/33.8 mm to 4.3"/110 mm

Core I.D.

0.5"/12.7 mm (inner diameter)

• • OPERATING CHARACTERISTICS

• • • • • • • • • •

Environmental

Operating Humidity: 10% to 90% non-condensing, Operating Temperature: 40°F to 105°F/4.4°C to 40°C, Storage Humidity: 5% to 95% non-condensing, Storage/Transportation Temperature: -40°F to 140°F/ -40°C to 60°C

Electrical

Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz, ENERGY STAR qualified

Length

10.0"/254 mm

Width

7.6"/193 mm

Height

7.5"/191 mm

Weight

4.9 lbs/2.2 kg

COMMUNICATION AND INTERFACE CAPABILITIES

Centronics® Parallel (standard), Ethernet — 10/100 internal (standard), RS-232 auto-sensing Serial interface, DB-9, USB V2.0, bi-directional (standard), Wireless — 802.11 a/b/g/n and Bluetooth 3.0 (optional)

Software

Developer Tools, Device Integration, Device Management, Document Design

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime.

FIRMWARE

ZBI 2.0, ZPL and ZPL II®

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-14, EAN-8, GS1 Databar (formerly RSS), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2D

Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code

FONTS AND GRAPHICS

16 resident expandable ZPL II bitmap fonts, 4 MB user-available SDRAM, 56 MB user available non-volatile memory storage for downloadable objects, native open-type font support, Supports user-defined fonts and graphics — including custom logos, two resident scalable ZPL fonts, Unicode® Standard compliant for multi-language, on-demand thermal printing, ZPL II drawing commands — for boxes and lines

Optional Features

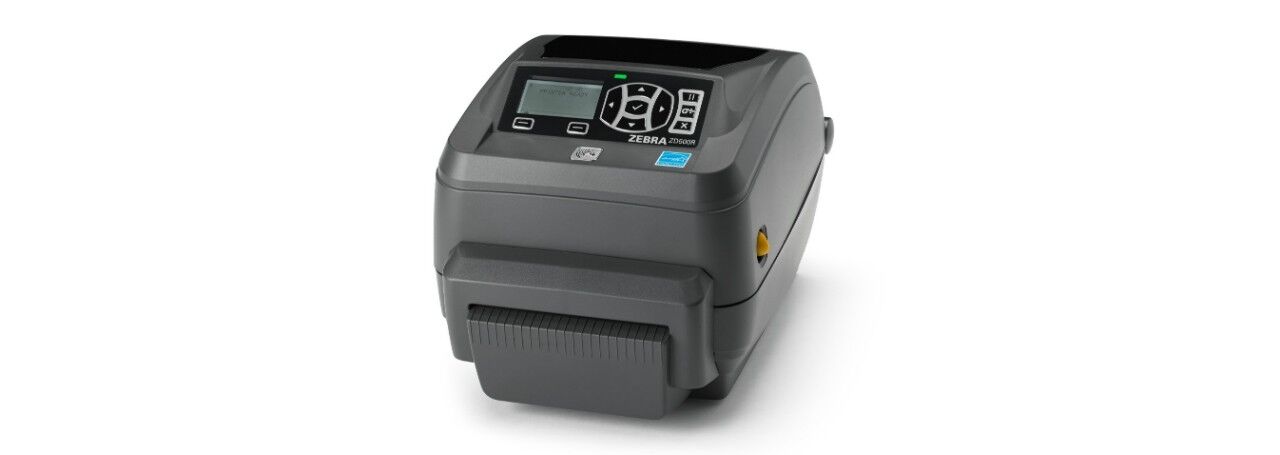

300 dpi for high-resolution printing, Cutter for various media types, Dispenser — label peel and present with present sensor, Keyboard Display Unit — ZKDU™ keyboard display units for stand-alone printing applications, Wireless — 802.11 a/b/g/n and Bluetooth 3.0
