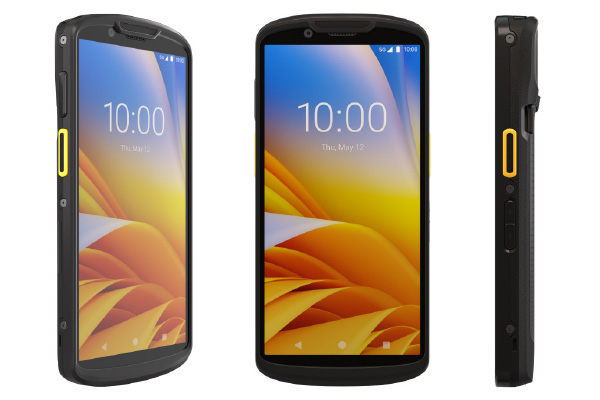

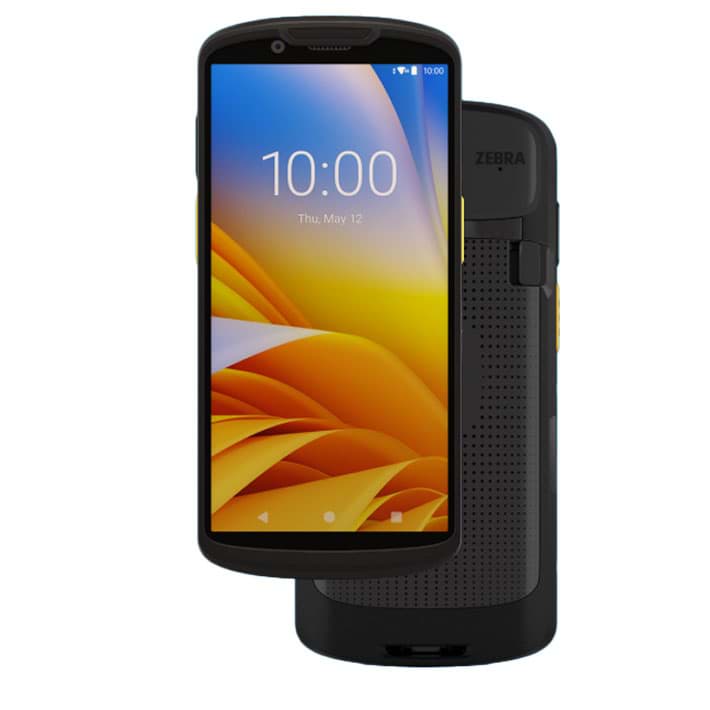

TC53 TC58 MOBILE COMPUTER


TC53 TC58 MOBILE COMPUTER  Zebra’s advanced mobile computers with cutting-edge hardware, 5G, Wi-Fi 6E, and innovative solutions for enhanced data collection, operational efficiency, and workforce productivity.

TC53 TC58 MOBILE COMPUTER INDUSTRY-BEST INNOVATIONS FROM THE CASING TO THE PROCESSOR

Blazing speed

TC53/TC58 MOBILE COMPUTER Get virtually instant response times in the most demanding applications with class-leading processing power, memory and storage — the next-generation Qualcomm 6490 octa-core processor, up to 8 GB of RAM and 128 GB of Flash, plus a 2 TB MicroSD card slot.

All the latest wireless connections

Give your workers the fastest speeds with Wi-Fi 6E and 5G. And support for CBRS private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities.

Industry-leading 6-inch advanced display

Get the largest, highest resolution and brightest display in this product class. Screens are easy to read indoors and outside. Edge-to-edge technology means more information and less scrolling. It works when wet. And workers can use a stylus or finger, with or without a glove — no need to change modes.

Thinner and tougher

An ergonomic design and advanced manufacturing and materials technology make the TC53 and TC58 thinner, yet rugged.

Unmatched battery technology

Get full shift power and the intelligence to better manage batteries with Zebra’s PowerPrecision+ standard 4400 mAh and extended 6600 mAh batteries.

Hear every word on every call

With three integrated microphones, two speakers and support for wireless and wired headsets, collaboration is easy.

Capture ultra-high resolution photos and video intelligence

The 16 MP integrated camera offers the highest resolution in its class. And with optional Optical Image Stabilization (OIS), it’s easy to capture sharp, detailed photographs to document proof of condition, proof of delivery and more.

Physical Characteristics



Dimensions 6.48 in. L x 3.04 in. W x 0.66 in. H
164.8 mm L x 77.35 mm W x 16.75 mm H
Weight 10.3 oz./293 g with standard battery
Display 6.0 in. Full High Definition; 1080x 2160; LED back-light; 600 NITS; optically bonded to touch panel
Imager Window Corning® Gorilla® Glass 5
Touch Panel Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately), Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
Power Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; 17.71 Watt hours; Standard capacity: 4400 mAh; Extended capacity: 6600 mAh; BLE battery: 4400 mAh; Qi compatible Wireless charge battery: 4400 mAh; fast charging Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs)
Expansion Slot User accessible MicroSD card supports up to 2 TB
SIM TC58 only: 1 nano SIM; 1 eSIM
Network Connections TC53: WLAN, WPAN (Bluetooth)
TC58 only: WWAN 5G
Notifications Audible tone; multi-color LEDs; haptic feedback
Keypad On-screen keypad and enterprise keyboard
Voice and Audio Three microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (3.5 mm and Zebra USB-C) support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Fullband (FB) audio; 3.5 mm audio jack only on WLAN SKUs
Buttons Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger button of trigger handle via Back I/O.
Interface Ports USB 2.0 (Back I/O – Host Only), USB 3.0 (Bottom Type C) – Super Speed (Host and Client)



Performance Characteristics



CPU Qualcomm 6490 octa-core, 2.7 GHz
Operating System Android 11; upgradeable to Android 14
Memory 4GB RAM/64GB UFS Flash;
8GB RAM/64GB UFS Flash;
8GB RAM/128GB UFS Flash
Security FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; Supports Secure Boot and Verified Boot.



User Environment



Operating Temp. -4°F to 122°F/-20°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% non-condensing
Sealing IP68 and IP65 with battery per applicable IEC sealing specifications
Drop Specifications Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with protective boot per MIL STD 810H;
Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C/14°F to 122°F) per MIL STD 810H
Tumble Specification 1000 1.6 ft./0.5 m tumbles at room temperature without protective boot, meets or exceeds IEC tumble specification; 1000 3.2 ft./1.0 m tumbles at room temperature with protective boot, meets or exceeds IEC tumble specification
Electrostatic
Discharge (ESD)
+/- 15 kV air discharge; +/- 8 kV direct discharge;
+/- 8 kV indirect discharge



General Certifications



TAA compliant; ARCore Google certification sustained



Automated Interactive Sensor Technology (IST)



Light Sensor Adjusts display backlight brightness
Magnetometer eCompass to detect direction and orientation (not available in the base LAN model)
Motion Sensor 3-axis accelerometer with MEMS Gyro
Pressure Sensor Detects altitude information for locating
Proximity Sensor Disables display output and touch input when placed against head during a call
Gyro Senses linear orientation



Data Capture



Scanning SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4720 1D/2D Scan Engine
Camera Front—8 MP; Rear—16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only), Time of Flight (ToF) Sensor (premium SKUs only)
NFC ISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support, ECP1.0 and ECP2.0 polling support, Apple VAS certified
