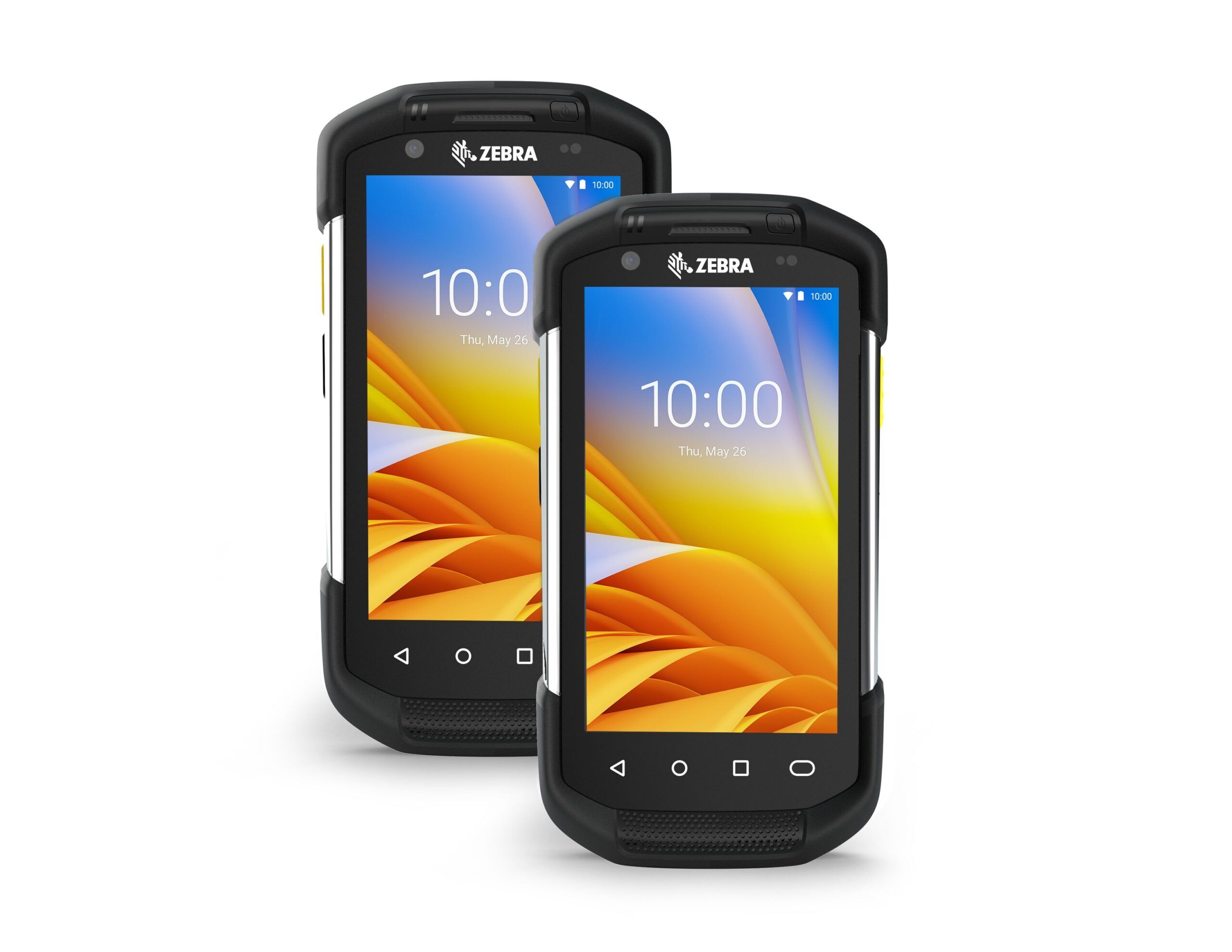

TC72 Mobile Computer

The Ultimate Wi-Fi 5 Ultra-Rugged Mobile Computer

Add to quote

Designed for workers inside your facility, the TC72 builds on the highly successful TC70 Series to deliver the advanced features you need to handle demanding enterprise-class applications. It is built to handle 8 ft./2.4 m drops to concrete and offers Wi-Fi 5, a 4.7 in. HD display, a fast 2.2 GHz processor, 4GB RAM and 32 GB Flash, a 32GB MicroSD slot, and your choice of two scanners to best meet the needs of different workers.

Categories: , Brand: ,

Physical Characteristics

Dimensions 6.3 in. L x 3.3 in. W x 1.1 in. D
161 mm L x 84 mm W x 28 mm D
Weight 13.3 oz / 376 g
Display 4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Imager Window Corning Gorilla Glass
Touchpanel  Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately); Screen Protector and Rain modes; Corning Gorilla Glass
Backlight LED backlight
Power Li-Ion 3.7 V, 4620 mAh. PowerPrecision/ PowerPrecision+: Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management
Expansion Slot User accessible MicroSD with 32 GB SDHC and up to 256 GB SDXC
SIM TC77 only: 2 Nano SIM slots
(Dual SIM, Dual Stand-by – EU Only)
Network Connections TC72: WLAN, WPAN (Bluetooth)
TC77: WWAN (cellular, WLAN (WiFi), WPAN (Bluetooth); USB 2.0 High Speed (host and client)
Notification Audible tone; multi-color LEDs; vibration
Keypad On-screen keypad and Enterprise Keyboard
Voice and Audio Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, high quality speaker phone; PTT headset support; cellular circuit switch voice; HD Voice

Performance Characteristics

CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System TC72: Upgradeable to Android 14
TC77: Upgradeable to Android 14
Memory 4 GB RAM/32 GB Flash pSLC
Internet Protocol IPv4 and IPv6

User Environment

Operating Temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 90% non-condensing
Drop Specifications Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G
Tumble Specifications 2,000 3.3 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications
Sealing IP65 and IP68 per applicable IEC sealing specifications
Vibration 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock -40° F to 158° F/-40° C to 70° C rapid transition
Electrostatic Discharge (ESD) +/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge

Interactive Sensor Technology (IST)

Light Sensor Automatically adjusts display backlight brightness
Motion Sensor eCompass, 3-axis Gyro, 3-axis accelerometer
Atmospheric Pressure Sensor Yes, TC77 only

Data Capture

Scanning SE4770: 1D/2D omnidirectional imager
SE4750: 1D/2D omnidirectional imager
Digimarc Symbology support
Camera Front — 5MP fixed focus
Rear — 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization
Camera supports barcode scanning
NFC ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host
SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU

Wireless WAN Data and Voice Communications

TC77 Only: Radio Frequency Band Supports VoLTE , Carrier Aggregation up to 3DL CA
AT&T FirstNet Ready certification
Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38);
UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900
GPS TC77 only: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou

Wireless LAN

Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
Multimedia Wi-Fi Multimedia™ (WMM) and WMM-PS
Features Soft AP, 2×2 MU-MIMO, 256 QAM Modulation on 5G GHz radio; Maximum Ratio Combining (MRC), Tx/Rx Low-Density Parity Check (LDPC), Transmit Beamforming(TxBF) and Beamformee (BFee) capability, Full IEEE 802.11 a/b/g/n legacy compatibility
Certifications WFA (802.11n, WMM-PS, 801.11ac, PMF)
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC

Wireless PAN

Bluetooth Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)

Communication and Messaging

Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the TC72/TC77 Series to function as a full featured mobile telephone with multi line capability across Wi-Fi networks.

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the TC72/TC77 Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
http://www.zebra.com/warranty

Recommended Services

Zebra OneCare® Essential and Select support services
Zebra Visibility Services – VisibilityIQ™ Foresight or Asset Visibility Service

Footnotes

1. Based on typical user profiles
Specifications subject to change without notice.
For details related to Common Criteria support, please visit:
www.zebra.com/commoncriteria

Environmental Compliance

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance, please visit:
www.zebra.com/environment

Mobility DNA Software

Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit
