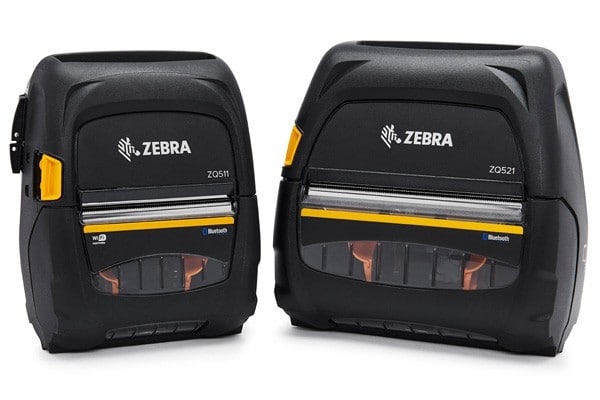

ZQ511/ZQ521 Mobile Printer
EXCEPTIONAL DURABILITY AND RELIABILITY FOR THE TOUGHEST ENVIRONMENTS
Zebra’s ZQ500 Series just got tougher. The premium ZQ511 and ZQ521 printers — both available in RFID models — give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.
TOUGH. RELIABLE. BUILT TO ENDURE.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3 ft./1 m, the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.
If this isn’t enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6 ft. to 10 ft. and improves the IP rating to IP65.
Built to Last
New over-molding helps increase the longevity and keeps your ZQ500 Series looking good over the life of the printer.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Operating System | Link-OS® |
| Print Method | Direct Thermal |
| RESOLUTION | 203 dpi/8 dots per mm |
| Memory | 128MB RAM, 256MB Flash (48 MB User Available) |
| Battery | Li-Ion 2280 mAh, 7.2V, PowerPrecision+ |
| Maximum Print Width | ZQ310 printer: 48 mm/1.89 in., ZQ320 printer: 72 mm/2.83 in. |
| Maximum Print Speed | Up to 4 ips (100 mm/s) |
| Media Sensors | BlackBar, Gap, Media Door Open, Media Out |
| Programming Languages | CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers. |
| Cutter | Tear bar |
| Print Direction | Horizontal and vertical |
| Dimensions | ZQ310: 130 mm L x 93.5 mm W x 49.5 mm H | 5.12 in. L x 3.68 in. W x 1.95 in. H, ZQ320: 130 mm L x 117.7 mm W x 49.5 mm H | 5.12 in. L x 4.63 in. W x 1.95 in. H |
| Volume | ZQ310 printer: 600 cc/36.6 cubic in., ZQ320 printer: 757 cc/46 cubic in. |
| Weight | ZQ310 printer: 0.37 kg /0.81 lbs, ZQ320 printer: 0.43 kg/0.95 lbs |
| Media Width | ZQ310: 58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to support 50.8 mm ±0.75 mm/2 in. ±0.02 in., ZQ320: 80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to support 76 mm ± 0.75 mm/3 in. ±0.02 in. |
| Maximum Roll Outside Diameter | 40 mm/1.57 in. |
| Media Holder | Drop-in fixed media width (clamshell) |
| Media Thickness | 0.06 mm/0.0023 in. to 0.16 mm/0.0063 in. |
| Media Type | Direct thermal: receipt paper, labels, linerless labels |
| Minimum Receipt Length | 12.5 mm/0.49 in. |
| Maximum Receipt Length | Unconstrained in line mode |
| Label Counter | Odometer |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | -15° to +50° C/5° to +122° F |
| Storage temperature | -20° to 60° C/-4° to +140° F |
| Charging Temperature | 0° to 40°C/0° to +104° F |
| Operating Humidity | 10% to 90% non-condensing |
| IP Rating | IP54 |
| Drop Specification | 1.5 m/5 ft. tested over operating temp. range |
| Tumble Specification | 500 free falls from 1 m/3.3 ft. |
| Vibration | MIL STD 810 |
| COMMUNICATION AND INTERFACE CAPABILITIES | • • • • • • • • • • |
| WLAN¹ | 802.11ac |
| WLAN Security | 801.1X (with WEP, WPA or WPA2) EAP- FAST, AES encryption, EAP- TTLS, EAP-TLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2 |
| WLAN Features Supported | 802.11d, 802.11i, 802.11r, EAP Fast Session resumption, Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), Simultaneous WAN & BT 4.0, Support for Ad Hoc mode |
| Internet Protocols over WLAN | DHCP/BootP, FTP/Mirror, HTTP, LPD, SMTP / POP3, SNMP, Telnet, UDP/TCP |
| Bluetooth¹ | Dual Radio (802.11ac + BT BR/EDR LE4.0) |
| USB 2.0 | Client, Type- C™ connector |
| NFC | Passive NFC tag |
| Host OS Supported | Android 2.3, 4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10, Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications) |
| User Interface | LEDs |
| Barcode Symbologies | • • • • • • • • • • |
| Barcode Ratios | 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 |
| 1D | 2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E |
| 2D | Aztec, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 |
| FONTS AND GRAPHICS | CPCL (Bitmap), CPCL/ZPL (Scalable), ZPL |
| BRAND |
Standard Features
| • Android, Apple iOS, Windows® Mobile connectivity • Bluetooth specification 4.1 EDR + LE • WLAN 802.11ac • Fast roaming 802.11r supported • 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion) • USB On-The-Go ports (with optional strain relief) • Power Smart Print Technology — anticipates upcoming printing to optimize battery consumption and print speed • Direct thermal printing of barcodes, text and graphics • IP54 rated for protection against solid and liquid ingress • MIL-STD 810G certified for drop and shock • Tolerance of multiple drops from 6.6 ft./2 m to concrete • Tumble testing per the IEC68-2-32 spec with 1300 free falls from 3.3’/1m • Simple easy-to-read LCD with large icons for battery and wireless status • Dual-sided tear bar which allows for clean tears in either direction (not available with linerless SKUs) • Supports vertical and horizontal printing • Printer can be used in any orientation • Center loading, adjustable for variable roll widths • “Clamshell” design for easy media loading • Label odometer • XML support • Resident fixed and scalable fonts • Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing) • Cold Temperature Compensation mode-optimizes/balances print speeds to allow for better print performance at lower temperatures • PPME, Mirror, SNMP, WebServer, AirWatch® and Soto Connectors and Wavelink Avalanche® • NTP (Network Time Protocol) support via WiFi • Sleep mode supported. Wake on Bluetooth, WiFi and Touch • Real time clock (RTC) supported for time stamp certificates in WLAN SKU’s only • QR code links to web-based help pages; not displayed on LCD • Zebra® Print Touch simplifies Bluetooth pairing and launches web-based pages with Near Field Communication (NFC) enabled devices • RFID is available on both the ZQ511 and ZQ521 as separate products |
Physical Characteristics
| Dimensions | ZQ511: 5.9 in. L x 4.7 in. W x 2.4 in. H 150 mm L x 120 mm W x 62 mm H ZQ521: 6.2 in. L x 6.1 in. W x 2.6 in. H |
| Weight with Battery | ZQ511: 1.39lbs/0.63 kgs ZQ521: 1.73lbs/0.79 kgs |
Printer Specifications
| Operating System | Link-OS® |
| Resolution | 203 dpi resolution (8 dots per mm) |
| Memory | 256MB RAM, 512MB Flash (standard) 8MB RAM, 64MB Flash (user available) |
| Maximum Print Width | ZQ511: 2.83 in./72mm ZQ521: 4.09 in./104mm |
| Maximum Print Speed | Up to 5 in./127 mm per second (with Draft Mode enabled) |
| Media Sensors | Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing) |
| Print Length | Maximum: 39 in. |
| Power | 3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery, with optional extended battery |
Media Characteristics
| Minimum/Maximum Media Width | ZQ511: 1.38 in./35 mm to 3.15 in./80 mm+1 mm ZQ521: 2.0 in./50.8 mm to 4.45 in./113 mm+1 2mm |
| Maximum Media Roll Size | ZQ511: 2.0 in./51 mm ZQ521: 2.24 in./57 mm |
| Maximum Media Thickness | 0.0063 in./0.1600 mm for labels and 0.0055 in./0.1397 mm for tag/receipt |
| Minimum Media Thickness | 0.0023 in./0.05842 mm for all media (ZQ511 Linerless SKU is 0.0021 in./0.05334 mm) |
| Media Types | Receipt, Gap/Black-mark Label, Tag, Linerless, RFID (Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing) Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing |
Operating Characteristics
| Environment | Operating Temperature: -4°F to 131°F/-20°C to 55°C Operating Humidity: 10% to 90% non-condensing Charging Temperature: 32°F to 104°F/0°C to 40°C Cradle Temperature: 32°F to 122°F/0°C to 50°C Storage Temperature: -22°F to 150°F/-30°C to 66°C Storage Humidity: 10% to 90% non-condensing |
| Agency Approvals | Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN55024, ICES- 003, EN55032, and EN301489 |
| Security | FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information |
Firmware
| CPCL and ZPL® programming languages
ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more |
Options
| • RFID encoding • Linerless printing (with silicone platen roller only) |
Barcode Symbologies
| CPCL Barcode Symbologies • Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 • Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on • 2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39 ZPL Barcode Symbologies |
Fonts and Character Sets
| Standard Fonts | 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed, contains UFST® from Agfa Monotype Corporation) |
| Included in All Models and Part Numbers | Scalable Fonts: Swiss721 (supporting Latin, Cyrillic, Hebrew and Arabic characters) |
| Additional Asian Fonts Supported | Group A: Part Numbers supporting Indonesia, Taiwan, Korea, Malaysia, Australia, New Zealand, Sri Lanka, India include: Scalable Traditional Chinese Characters: NotoMono, Bitmap: 24×24 MKai, 16×16 New Sans MT, Scalable Korean Characters: NotoMono
Group B: Part Numbers supporting, Singapore, Thailand, Philippines, HongKong and Vietnam include: Scalable Traditional Chinese characters: NotoMono and Bitmap 16×16 NewSans MT. Scalable Thai Characters: Angsana, Scalable Vietnamese Characters: SourceCodePro and Bitmap 16×16 Utah Group C: Part Numbers supporting China include: Scalable Simplified Chinese Characters: Hans and Bitmap 24×24 Msung, 16×16 SimSun Group J: Part Numbers supporting Japan include: Scalable NotoMono and Square Gothic J MT, Bitmap 16×16, 24X24 Square Gothic J MT |
Communication and Interface Capabilities
| ZebraNet® 802.11ac radio with support for: • WPA and WPA2 with AES encryption • 802.1x (with WEP, WPA, or WPA2) • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP • 802.11d, 802.11i, 802.11r • Simultaneous Bluetooth 4.2 dual radio • Wi-Fi Certification • Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r Bluetooth 4.1 (Classic and BLE) radio Cabled Communications Specifications |
