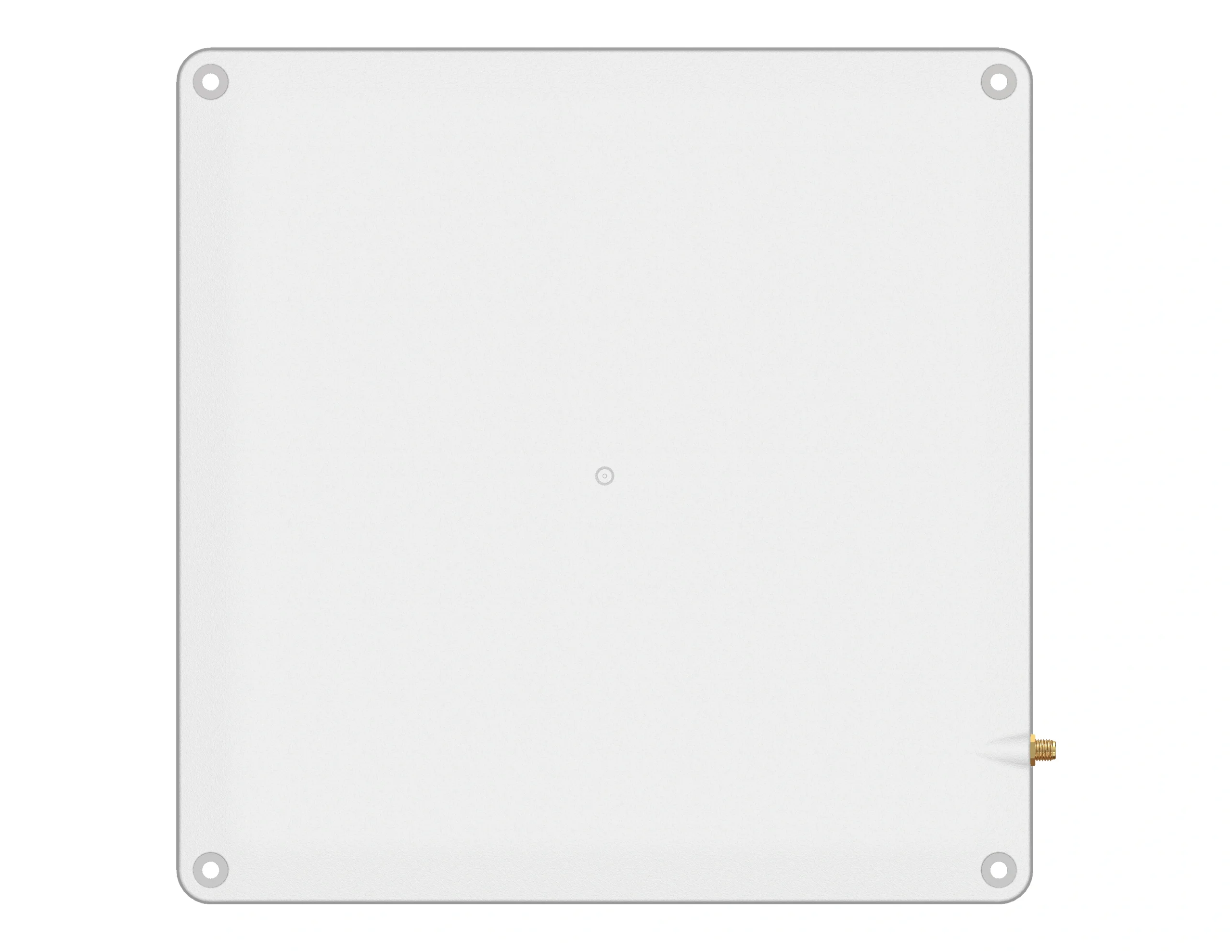

AN510 Ultra-Rugged RFID Antenna
The AN510 is a slim, ultra-rugged UHF RFID antenna built for both indoor and outdoor use. With a low-profile, weather-sealed housing (IP67), it is ideal for docks, warehouses, logistics gates, ceilings or walls — wherever you need a durable and discreet RFID read zone.
The AN510 Ultra-Rugged RFID Antenna combines robustness with compact design. Its rugged housing protects against dust, water, and outdoor elements — making it suitable for harsh industrial and outdoor environments such as loading docks, conveyor belts, cold-chain areas, freezers, tarmacs, and external portals. At the same time, its flat, low-profile form factor allows flush or VESA-mounting on ceilings, walls, or doorways, blending discreetly into the installation site.
Thanks to a circularly-polarized design and solid RF performance, the AN510 delivers reliable UHF RFID tag reads across standard global UHF bands. Its durable build and stable read performance make it a versatile antenna for warehouses, retail logistics, manufacturing facilities, aviation baggage handling, outdoor asset tracking, and other applications where environmental resilience and consistent RFID performance are required.
Because of its IP67 sealing, AN510 can withstand challenging conditions — including humidity, dust, rain, and variable temperatures — without sacrificing read performance. It supports typical fixed-reader setups, providing a dependable read zone for tagged items, pallets, containers, or assets moving through portals or conveyor systems.
| Category | Details |
|---|---|
| Frequency Bands (UHF) | 865–868 MHz (for EU/EMEA) / 902–928 MHz (for US/FCC) |
| Polarization | Right-Hand Circular Polarization (RHCP) |
| Antenna Gain | 8.5 dBiC |
| 3 dB Beamwidth (Horizontal and Vertical) | ~68° × 68° |
| Front-to-Back Ratio | ~20 dB |
| VSWR (Return Loss) | ≤ 1.3:1 |
| Axial Ratio | ~1 dB |
| Connector | SMA female |
| Mounting Options | Flush mount or VESA-stud mount (corner-hole or stud-mount) |
| Physical Dimensions | ~ 250 mm × 250 mm × 14 mm (≈ 9.8″ × 9.8″ × 0.55″) |
| Weight | ~ 0.75 kg |
| Housing / Material | Rugged, UV-resistant ABS — sealed for outdoor & indoor use |
| Environmental Protection (Sealing) | IP67 (dustproof and waterproof) |
| Operating Temperature Range | –20 °C to +55 °C |
| Storage Temperature Range | –30 °C to +65 °C |
| Maximum RF Input Power | ~ 3 Watts (per antenna specifications) |
| Typical Use Cases | Warehouses, loading docks, dock doors, outdoor portals, conveyor systems, cold-chain logistics, shipping/receiving zones, aviation baggage tracking, outdoor retail zones, industrial asset tracking, outdoor storage yards, freezer trucks, tarmac operations |
