RFID Reader Antennas

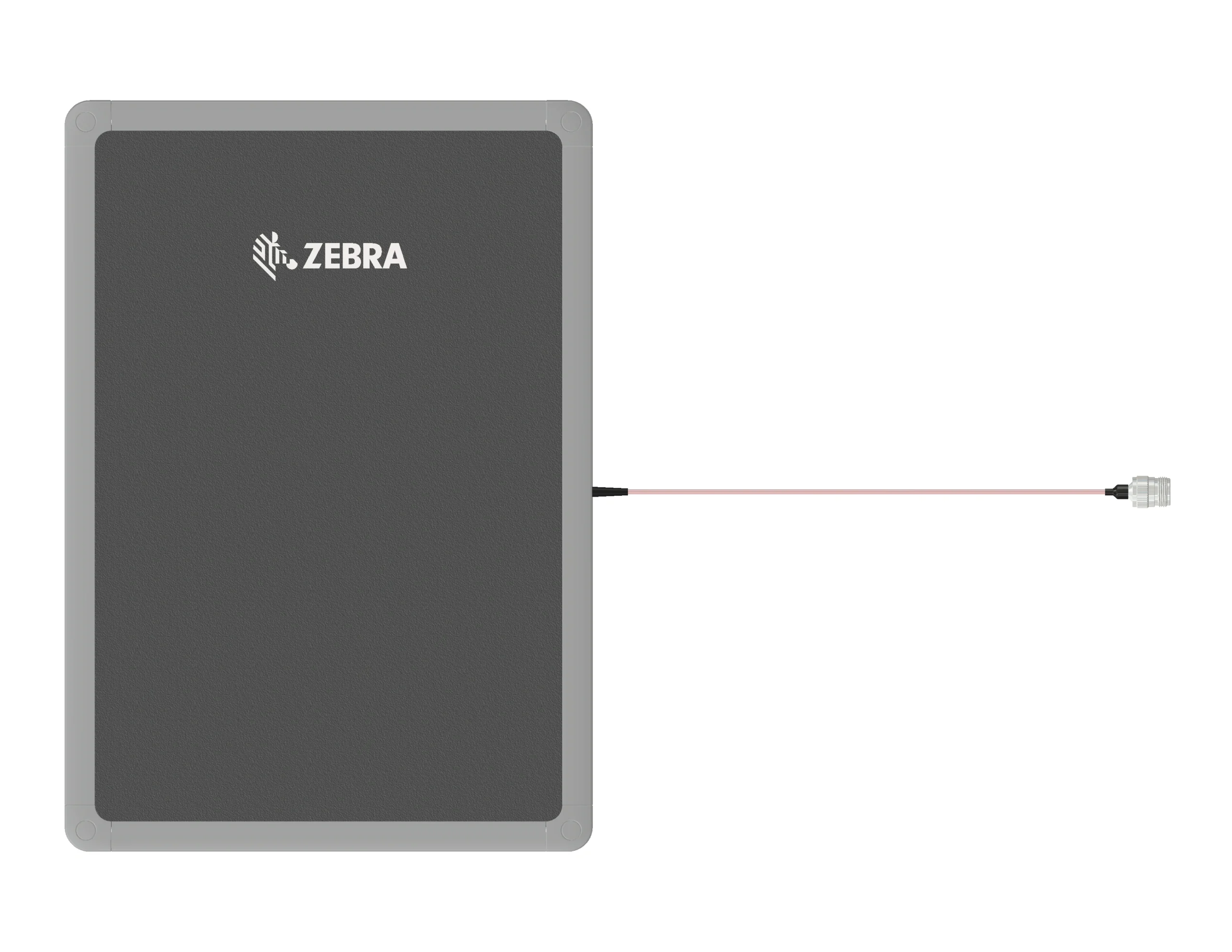

AN620 Slimline RFID Antenna
The AN620 is an ultra-low-profile UHF RFID antenna designed for indoor environments where space is limited. Its slimline design and discreet mounting make it ideal for placement on walls, shelves, counters or under-counters — perfect for retail, office, or controlled-space installations.
The AN620 Slimline RFID Antenna offers a sleek, space-saving solution for RFID deployments where aesthetics or limited space matter. With its very slim profile (≈ 12 mm thick), the antenna can be mounted flush on walls, counters, shelves, or under counters — minimizing visibility and maximizing usability.
Because it’s a full-size but low-profile antenna, AN620 maintains effective RFID performance while blending into environments such as retail stores, offices, data centers, medical cabinets, point-of-sale areas, or storage rooms. Its Left-Hand Circular Polarization (LHCP) and suitable gain make it capable of reliably reading passive UHF RFID tags in standard indoor settings.
Thanks to its simple, integrated mounting system (mounting holes built in), installation is quick and flexible — whether horizontal or vertical mount. AN620 is a good choice when you want discreet RFID coverage without bulky external antennas interfering with space or design.
| Category | Details |
|---|---|
| Antenna Type / Form Factor | UHF, slimline / ultra-low profile, flat-panel antenna |
| Intended Use | Indoor installations — walls, shelves, counters, under-counter, doorways, point-of-sale, storage rooms, retail shelves, data-cabinet racks, etc. |
| Dimensions | 391 mm × 275 mm × 12 mm (≈ 15.4 in × 10.8 in × 0.47 in) RFID.it+2Barcodes Inc.+2 |
| Weight | ~ 1.0 kg (≈ 2.2 lbs) Microless+1 |
| Polarization | Left-hand Circular Polarization (LHCP) Barcodes Inc.+1 |
| Frequency Bands (UHF) | 865–868 MHz (for EU/EMEA), 902–928 MHz (for US/FCC), depending on model/region RFID.it+1 |
| Antenna Gain | ~ 7.0 dBiC (some variants list 4.0 dBiL depending on freq/model) DipoleRFID+2Barcodes Inc.+2 |
| Connector Type | N-Type female (pigtail-side) for connection to RFID reader Microless+1 |
| Mounting System | Integrated mounting holes; flush mount (horizontal or vertical) — stands about 12 mm from the mounting surface Zebra Technologies+2mediatec.com.sg+2 |
| Environmental / Protection Rating | Indoor-rated; IP54 (some sources mention IP54 / IP54-IP65 depending on variant) Microless+2DipoleRFID+2 |
| Operating Temperature | Approximately –20 °C to +55 °C RFID.it+2ITGStore.eu+2 |
| Beam Pattern / Radiation | Azimuth (horizontal) Beamwidth ~ 75°, Elevation (vertical) ~ 48° — suitable for broad coverage in indoor zones. atlasRFIDstore+1 |
| Use-Case / Typical Applications | Retail point-of-sale counters, under-counter installations, shelves/racks, data-center racks, medical cabinets, inventory shelves, doorways / chokepoints, storage rooms, offices, indoor logistics tracking. |
