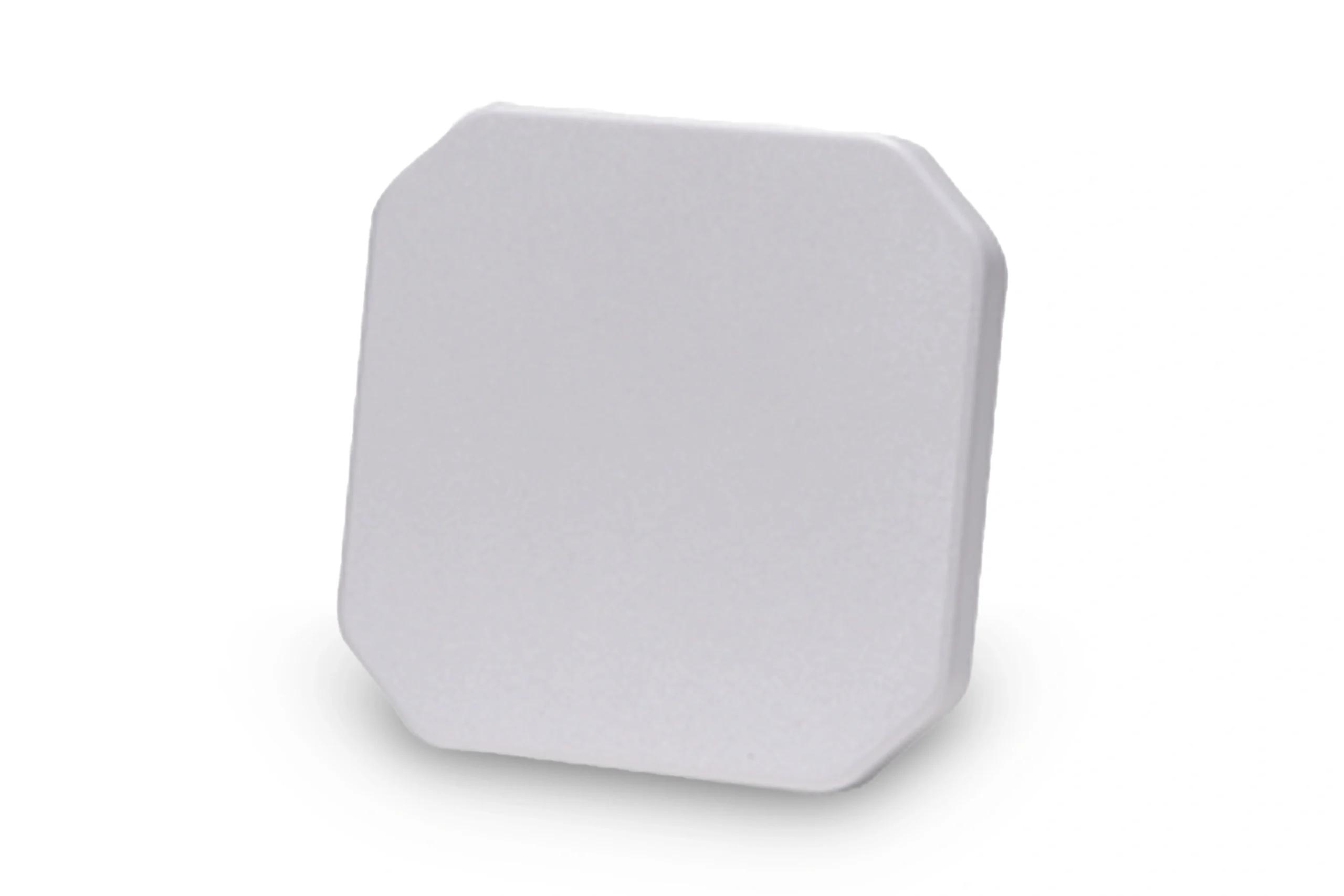

AN720 RFID Antenna
The AN720 is a compact, ultra-rugged UHF RFID antenna with IP67 sealing — suitable for both indoor and outdoor environments. Its small footprint and robust build make it ideal for installations in docks, retail spaces, warehouses, or any location requiring a discrete yet powerful RFID read zone.
The AN720 RFID Antenna delivers reliable RFID performance in a compact, low-profile form factor that remains effective even under harsh environmental conditions (dust, rain, temperature variation). With its sealed housing and sturdy construction, it is built to withstand outdoor installations (e.g. dock doors, outdoor entrances), as well as indoor setups where space is limited or where discreet hardware is preferred (e.g. retail shelves, POS counters, backrooms, compact warehouse zones).
Despite its small size, AN720 provides consistent, circularly polarized UHF signals that work with passive RFID tags — ensuring stable reads even when tag orientation is random. Its wide-beam coverage supports flexible installation angles (walls, ceilings, doorways), making it suitable for portals, chokepoints, conveyor belts, shelves, or storage racks.
Because it’s part of Zebra’s rugged antenna series, AN720 is engineered for high durability and long-term reliability, making it a good match for logistics, retail, manufacturing, and mixed indoor/outdoor deployments where conditions can be unpredictable.
| Category | Details |
|---|---|
| Frequency Range (UHF) | 865–868 MHz (ETSI / EU) or 902–928 MHz (FCC / US), depending on regional model |
| Polarization | Left-Hand Circular Polarization (LHCP) |
| Antenna Gain | ~ 8.0 dBi (typical) |
| Beamwidth / Coverage Pattern | Wide-beam circularly-polarized radiation, suitable for doorways, shelves, small zones |
| Connector Type | N-type female connector |
| Physical Dimensions | ~ 132.8 mm × 132.8 mm × 18.1 mm (≈ 5.2″ × 5.2″ × 0.7″) |
| Weight | ≈ 0.37 kg |
| Environmental / Ruggedness | IP67 dust/water-sealed housing — suitable for outdoor and indoor industrial environments |
| Operating Temperature Range | Roughly –25 °C to +70 °C |
| Recommended Use Cases | Retail point-of-sale shelves, doorway/portal read zones, loading dock entrances, warehouse shelves, conveyor entry/exit areas, compact read zones where larger antennas are impractical |
