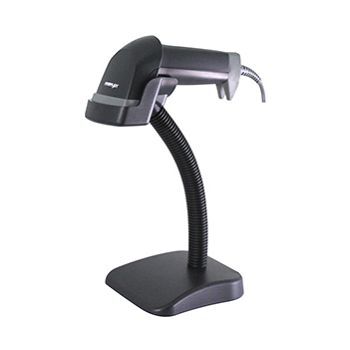

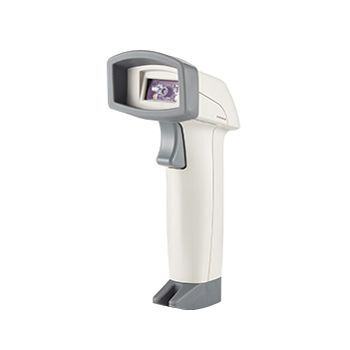

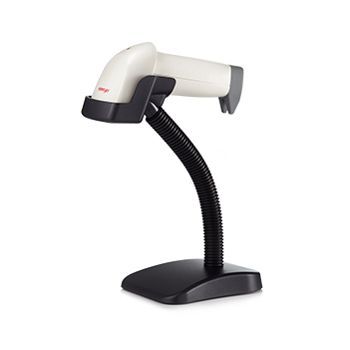

Barcode Scanner CD-3100U
The CD-3100U Series is a handheld barcode scanner featuring a high performance scan engine that makes reading both 1D and 2D barcodes extremely fast, reliable, and more affordable than ever.
The CD-3100U Series is a handheld barcode scanner featuring a high performance scan engine that makes reading both 1D and 2D barcodes extremely fast, reliable, and more affordable than ever.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Light Source | White LED |
| RESOLUTION | 648 (H) x 488 (V) pixels |
| Reading Pitch Angle | -65 to 0°, 0 to +65° |
| Reading Skew Angle | -60 to 0°, 0 to +60° |
| Min. PCS value | >30% UPC/EAN 13 (13 mil) |
| Scan Method | CMOS array sensor |
| Scan Angle | Horizontal: 34°; Vertical: 26° |
| Min. Resolution | 1D: 5 mil, 2D: 10 mil |
| Interface | USB (CD-3100U) |
| DIMENSION (W X D X H IN MM) | 71.1 x 62.6 x 169.3 |
| WEIGHT (N. W. IN KG) | 120 g (body only) |
| Input Voltage | DC +3.3V ± 5% |
| Operating current | 135 mA (typ) |
| Operating Temperature | -20°C to 60°C |
| Storage temperature | -40°C to 80°C |
| Ambient light | Direct Sun light: 80,000 Lux max., Fluorescent light: 1600 Lux max. |
| Drop resistance | 120 cm |
| Barcode support (1D) | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, Interleaved 2 of 5, Matrix 2 of 5, MSI, UPC/EAN |
| Barcode support (2D) | Data Matrix, PDF417, QR code |
| BRAND |
