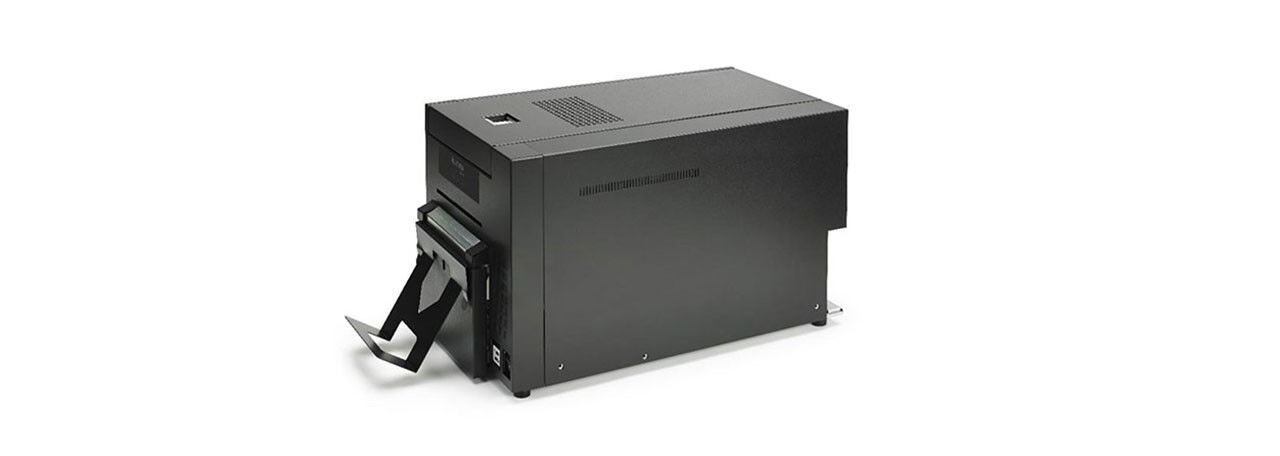

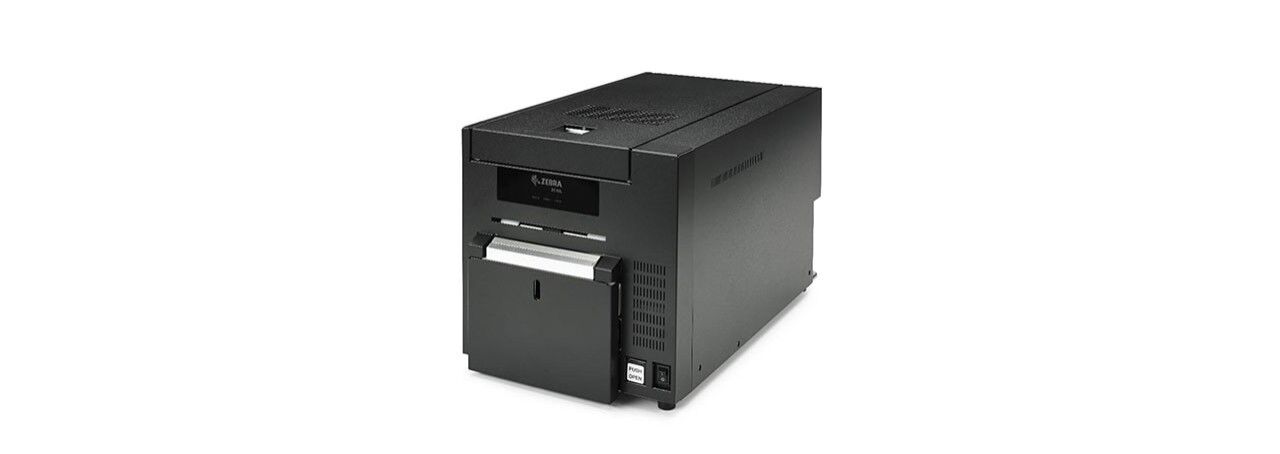

Card Printer ZC10L Designed especially to meet the needs of the Hospitality market, Zebra’s ZC10L™ is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Produce custom, oversized badges, sporting event and concert tickets/passes, special event and festival badges/passes on the spot in full color—in one print pass. Avoid the hassle of ordering and inventorying pre-printed cards for various levels of guest access at events. Instead, print photo-quality cards edge-to-edge at the point of entry. Since cards are printed on demand, you can customize them for individual guest needs. This adds personalization, reduces waste and eliminates the risk of running out of a specific type of card should attendance change. And, with 300 dpi print quality, the ZC10L enables you to produce cards with exceptional photo-quality images, rich colors and crisp text.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Printing | Direct to card — dye diffusion, Edge-to-edge printing, Full color or monochrome printing, Max print speed single-side YMCKO 195 cph*, Max print speed single-sided K mono 360-410 cph*, Photo-quality images, Single-sided printing |
| STANDARD FEATURES | 2 year / 20,000 card warranty on printer, 200 card (24 mil) capacity feeder, 300 dpi print resolution, 64 MB memory standard, 70 card capacity output hopper, Microsoft® Windows® drivers, Multi-status LED operator display, USB connectivity, Zebra CardStudio 2.0 card design and issuance software (30 day trial) |
| Options and Accessories | 10/1000 Ethernet connectivity External Print Server, Zebra OneCare Service program |
| Software | CardStudio Classic version 1.3 or later card design and issuance software — single user license key, Windows 10, Windows 7, Windows 8.1 |
| Driver Features | Auto sensing of ribbon type, Remaining card count on ribbon |
| Supplies | Intelligent technology uses RFID tags to authenticate and automate color ribbon and monochrome ribbon. |
| Ribbon | Monochrome black: 2000 images/roll, YMCO 4-panel: 400 images/roll |
| Card Thickness | 24 mil |
| Card Size | 5.5" x 3.46" (140 mm x 88 mm) |
| Card Material | PVC |
| Smart Cards | HF, UHF, Dual HF/UHF |
| Interface | 10/100 Ethernet connectivity (External Print Server Option), USB 2.0, USB supports plug-and-play printer identification |
| Power Supply | 90V~264V AC and 48 – 62 Hz, Auto-switching AC power |
| Height | 11.42" / 290 mm |
| Width | 10.94" / 278 mm |
| Depth | 19.09" / 485 mm |
| Weight | 46.3 lbs. / 21 kg |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Operating: 50º F / 10º C to 95º F / 35º C, Shipping: -40º F / -40º C to 140º F / 60º C, Storage: -4º F / -20º C to 131º F / 55º C |
| Operating Humidity | Operating: 20% to 80% inclusive, non-condensing, Shipping: 10% to 95% inclusive, non-condensing, Storage: 10% to 95% inclusive, non-condensing |
