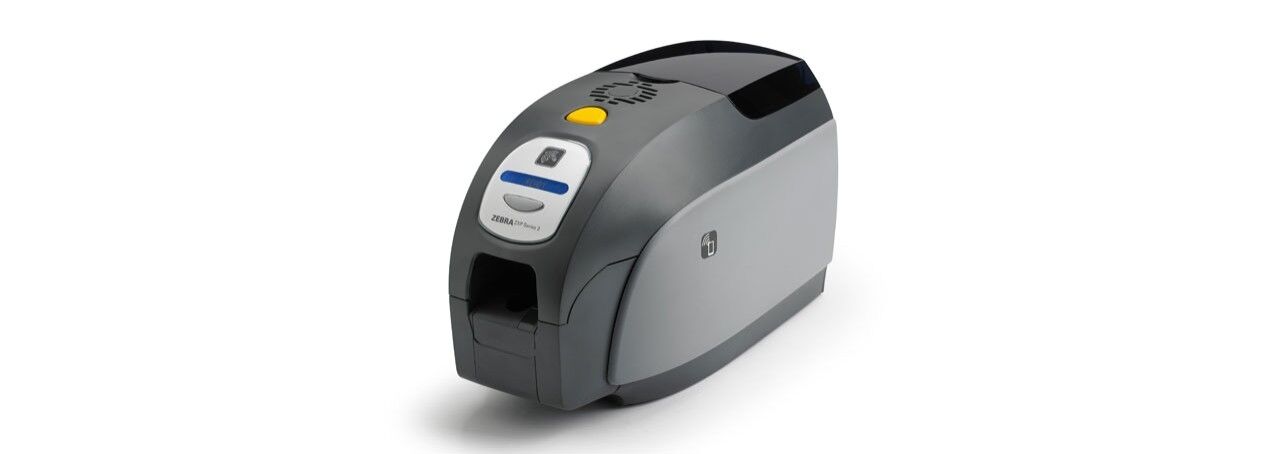

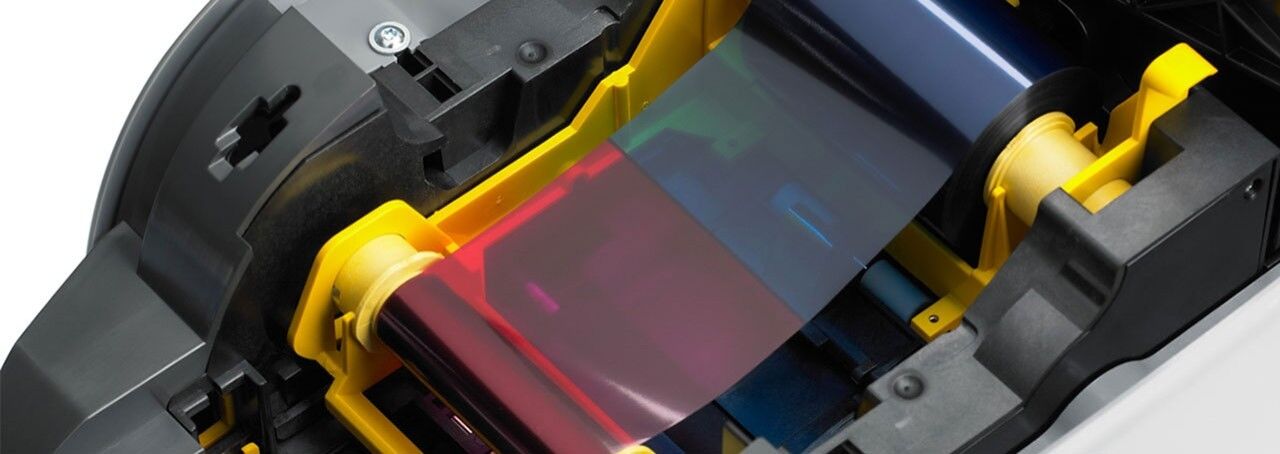

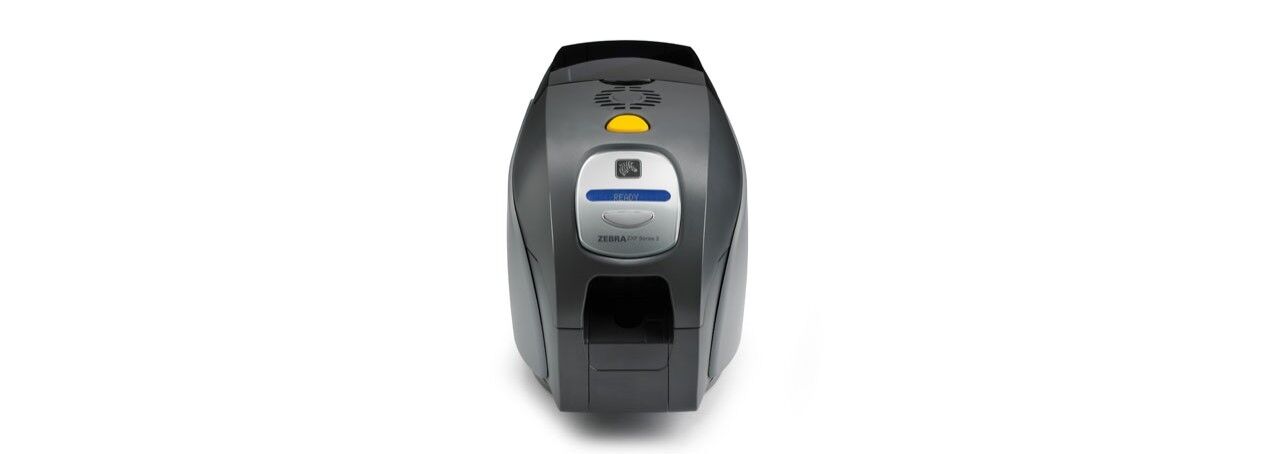

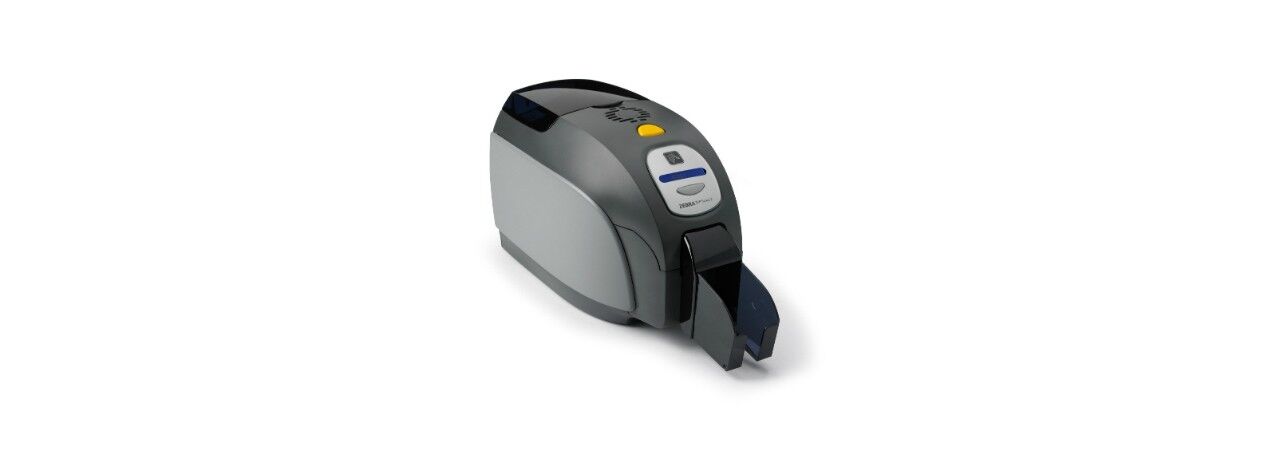

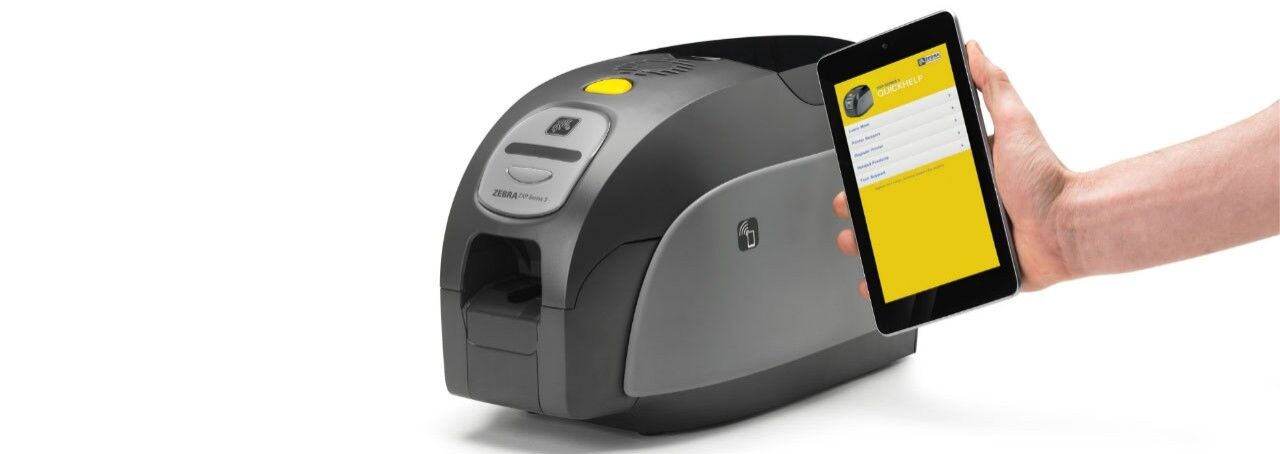

Zebra’s ZXP Series 3 direct-to-card printer provides an array of features, outstanding print quality, and a low cost of ownership. The ZXP Series 3 offers a wide range of high capacity ribbon options, along with the capability to select the card thickness that is right for the application. And, when paired with Zebra’s eco-friendly media, the ZXP Series 3 is the most cost-effective printing solution in its class.
| Printing Specifications | 140 cards / hour dual-sided YMCKOK, 195 cards / hour single-sided YMCKO, 700 cards / hour monochrome single-sided, Dye-sublimation thermal transfer direct to card print method, Edge-to-edge printing on standard CR-80 media, Full color or monochrome printing, Single- or dual-sided printing |
|---|
| • • OPERATING CHARACTERISTICS | • • • • • • • • • • |
|---|
| Operating Temperature | 60ºF to 86ºF/15ºC to 30ºC |
|---|
| Operating Humidity | 20% to 65% non-condensing |
|---|
| Storage temperature | 23ºF to 131ºF/-5ºC to 55ºC |
|---|
| Storage Humidity | 20% to 70% non-condensing |
|---|
| Media Storage | Do not store in direct sunlight, Humidity: 35% to 65% non-condensing, Temperature: 41ºF to 77ºF/5ºC to 25ºC |
|---|
| Electrical | Auto-switching single-phase AC power, FCC Class A, Frequency range: 47-63 Hz, Operating range: 90-132VAC and 190-264VAC RMS |
|---|
| • • PHYSICAL CHARACTERISTICS | • • • • • • • • • • |
|---|
| Length | 14.5″ (368 mm) |
|---|
| Height | 9.3″ (236 mm) |
|---|
| Width | 7.9″ (200 mm) |
|---|
| Weight | 11.6 lbs (5.3 kg) |
|---|

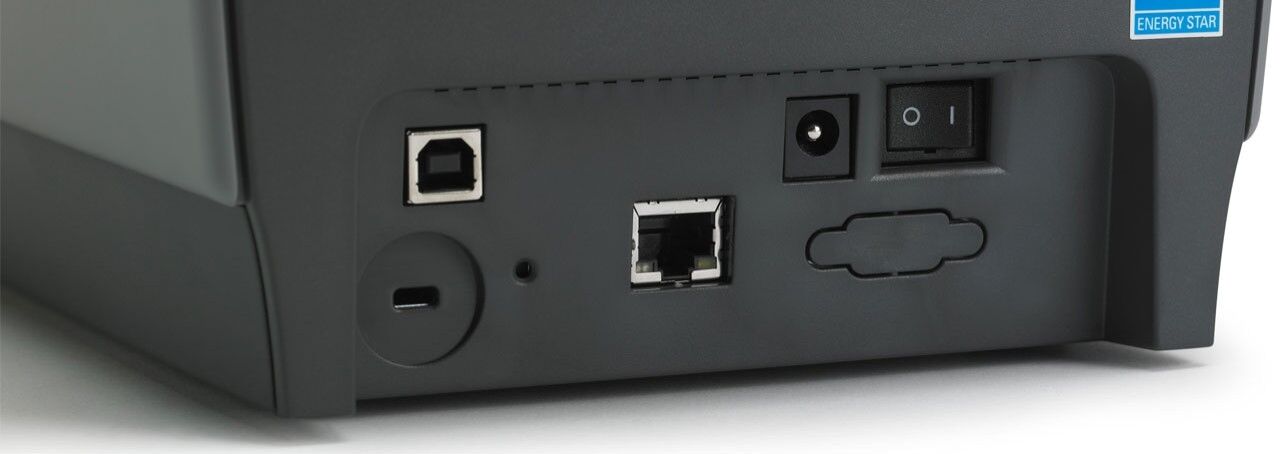

| COMMUNICATION AND INTERFACE CAPABILITIES | Built-in 10/100 Ethernet — optional, USB V2.0 (cable included) — standard |
|---|
| Software | CardStudio card design and issuance software |
|---|
| BRAND | ZEBRA |
|---|
