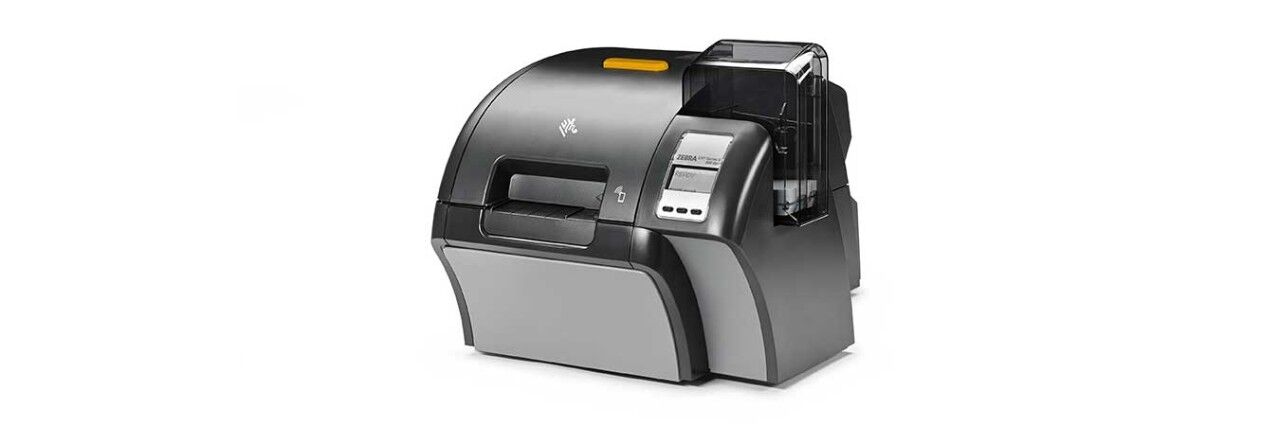

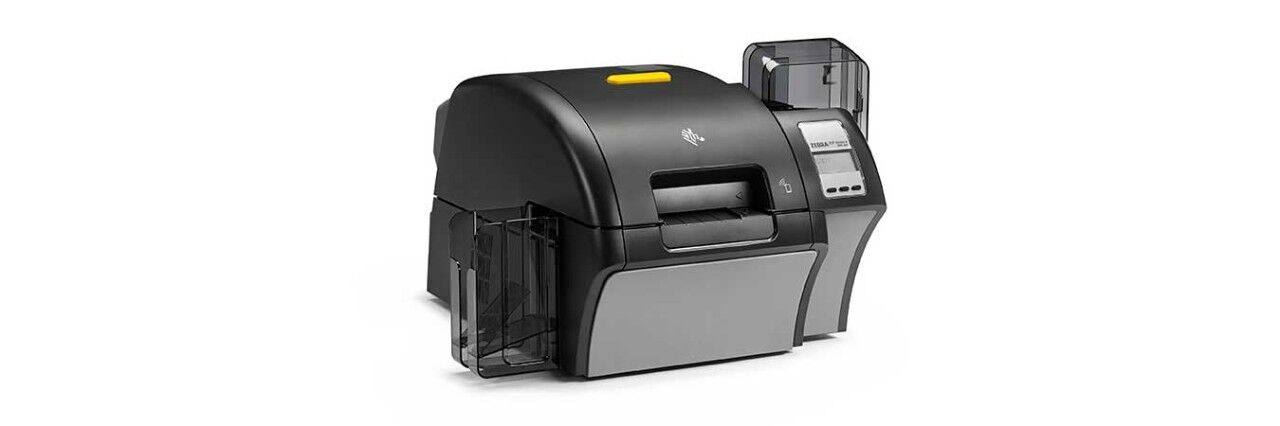

Card Printer ZXP Series 9 Pairing outstanding print quality with fast print speeds Extending Zebra’s line of card printers, the ZXP Series 9™ is a retransfer card printer specifically engineered for high-security applications. With industry-leading throughput enabling you to print more cards faster and with outstanding quality. Take control with the printer’s user-selectable print quality mode, allowing you to optimize for print speed or sharpen print quality. And the dual-sided, simultaneous retransfer process provides best-in-class printing, encoding and laminating throughput.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| Printing | Dye diffusion retransfer, Full color or monochrome retransfer printing, Max Print Speed Dual-Sided*: 190 cph (with 300 dpi) 140 cph (with 600 dpi), Max Print Speed Single-Side*: 180 cph (with 300 dpi) 125 cph (with 600 dpi), Over-the-edge printing on standard CR80 media, Photo-quality images, Single- and dual-sided printing |
| STANDARD FEATURES | 100 card capacity output hopper (30 mil), 15 card capacity reject hopper (30 mil), 150 card capacity feeder (30 mil), 2-year limited warranty on printer, 21-character, 6 line LCD operator display, 2GB memory standard, Auto-calibration of media, i Series™ intelligent media technology, Kensington physical lock capable, Lifetime warranty on printhead, Microsoft® Windows Certified drivers, Print Resolution: 300 dpi or 600 dpi, Single-card feed capabilit, USB and Ethernet connectivity |
| Options and Accessories | 802.11b/g wireless connectivity, Card input hopper (150 cards 30 mil), Laminator—single-sided and dual-sided, Lockable enclosure/card feeder, Zebra OneCare service programs |
| Encoding Options and Specifications | Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless, ISO 7816 Contact Encoder PC/SC compliance (supported over USB and Ethernet), Encoding over Ethernet, ISO 7816 Smart Card Contact Station for third-party external contact encoders, Magnetic stripe encoder—AAMVA and ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity) |

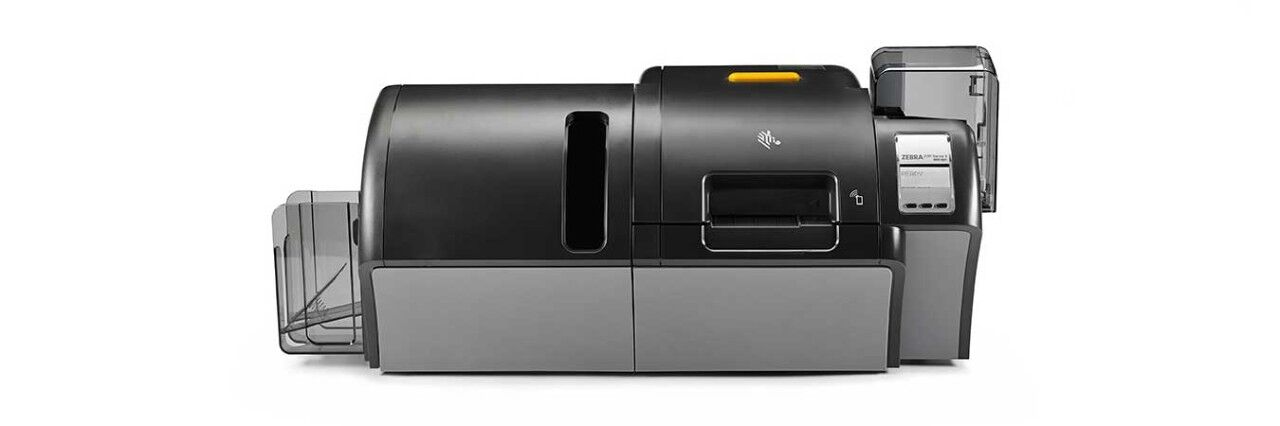

| Laminator Specifications | 180 cards per hour dual-sided printing and dual-sided lamination, Custom holographic laminates available, Custom-coded laminates available, GSA FIPS 201 approved (dual-sided lamination), Laminate for the top and bottom sold separately, Single-or dual-sided lamination option (with dual-sided printer only), Uses Zebra True Secure i Series laminates only |
| Zmotif Software | CardStudio card design and issuance software, Microsoft Windows Certified Printer Drivers with toolbox utility features, ZMotif SDK support and sample code |
| Driver Features | Auto sensing of ribbon type, laminator and smart card encoding options, Card source and card type selection, Complete graphical control over area and element selection of black extraction parameters, Graphical card orientation setting to visualize card printing setup and configuration |
| Toolbox Utility Features | • Complete technology card management enables setup and testing of all printer and encoder features and functionality, Optional password protection settings and user role-based security settings prevent accidental or unauthorized driver or printer configuration changes, Printer configuration tools and utilities for complete control over all printer functions and features, Printer test cards and diagnostics utilities ensure error-free printing and fast troubleshooting capabilities |
| ZMOTIF SDK | Capabilities include direct access to PC/SC Smart Card encoder driver and job control over print job specifications, Downloadable SDK for custom applications, SDK enables third parties to quickly add advanced print and encoding features to the ZXP Series 9 printer, Support for Uv and inhibit ribbon panel features and capabilities |
| Supplies | Specially designed cleaning supplies simplify preventative maintenance, Zebra i Series intelligent technology uses RFID tags to authenticate and automate color ribbons, transfer film and laminate |
| True Colours ix Series Ribbons | Monochome black: 2500 images/roll, YMC 3 panel: 800 images/roll, YMCK 4 panel: 625 images/roll, YMCKI 5 panel: 500 images/roll, YMCKK 5 panel: 500 images/roll, YMCKKI 6 panel: 415 images/roll, YMCUvK 5 panel: 500 images/roll |
| True Colours i Series Transfer Film | Clear: 1250 single-sided/625 dual-sided cards/roll |
| True Secure i Series Laminates | Custom laminate with registered or wallpaper holographic images available on request, Laminate types: clear, magnetic stripe, smart card, and holographic designs, Linerless, waste-free 1.0 mil top and bottom laminate: 625 images/roll |
| Card Thickness | 30 – 40 mil |
| Card Size | CR-80, ISO 7810 format, Type ID-1 |
| Card Material | ABS cards, PET, PET-G, PVC and composite, Teslin® composite |
| Specialty cards | : transparent (IR-blocked) or translucent card 30 mil (clear and colored)* |
| Technology Cards | contact and contactless smart cards, UHF cards |
| COMMUNICATION AND INTERFACE CAPABILITIES | 10/100 Ethernet, 802.11b/g wireless option, USB 2.0, USB supports plug-and-play printer identification |
| Electrical | 100V~240V AC and 50-60 Hz, Auto-switching single-phase AC power |
| Height | (w/ card hoppers): 13.2”/334 mm |
| Width | (w/ card hoppers, w/ laminator): 30.75”/781 mm, (w/ card hoppers): 18.75”/476 mm |
| Depth | 20.4”/519 mm |
| Weight | (printer only): 27.5 lbs./12.5 kg, (printer, laminator): 44 lbs./20 kg |
| Environmental | Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours, Operating Humidity: 20% to 80% inclusive, non-condensing, Operating Temperature: 59º F/15º C to 95º F/35º C, Shipping Humidity: 10% to 90% inclusive, non-condensing, Shipping Temperature: -40º F/-40º C to 140º F/60º C, Storage Humidity: 10% to 90% inclusive, non-condensing, Storage Temperature: 23º F/-5º C to 131º F/55º C |
| BRAND |
