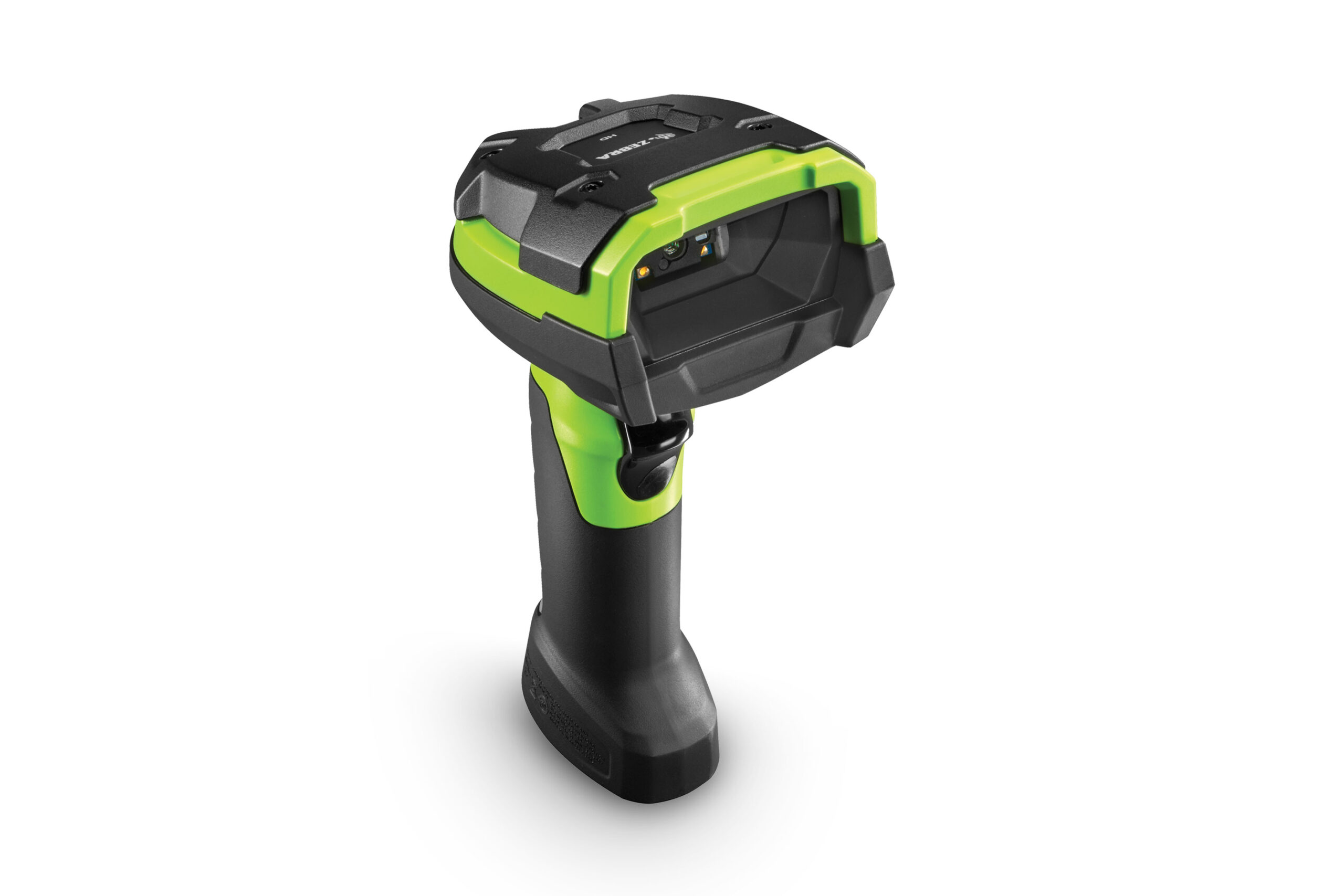

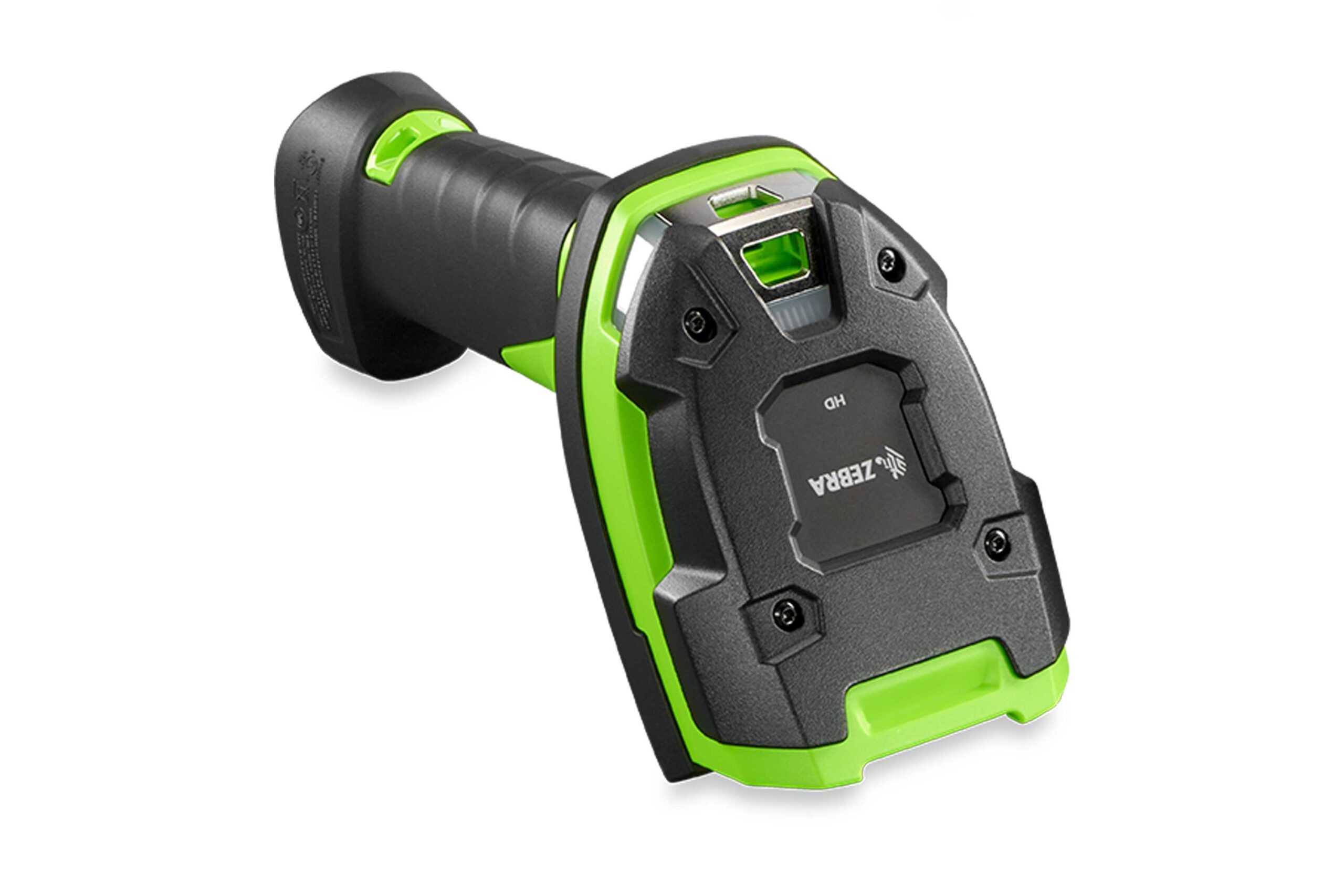

DS3600‑HD


Ultra‑rugged scanner optimized for high‑density 1D and 2D barcode capture in electronics, healthcare, logistics and manufacturing environments.

The DS3600‑HD is engineered to reliably capture even ultra‑small, high‑density barcodes—as small as approximately 3 mil—across labels or directly on components. Its PRZM Intelligent Imaging technology ensures first‑pass capture, even under harsh conditions like shrinkwrap, low-contrast printing, damage, or dirt. It also handles standard-density barcodes for full-spectrum traceability—from production lines to shipping bays.

Built ultra‑rugged: survives 10 ft (3 m) drops to concrete, withstands 7,500 tumbles, and features dual IP65/IP68 sealing against dust, water jets, and submersion. It operates across extreme temperature and humidity ranges, including freezer environments.

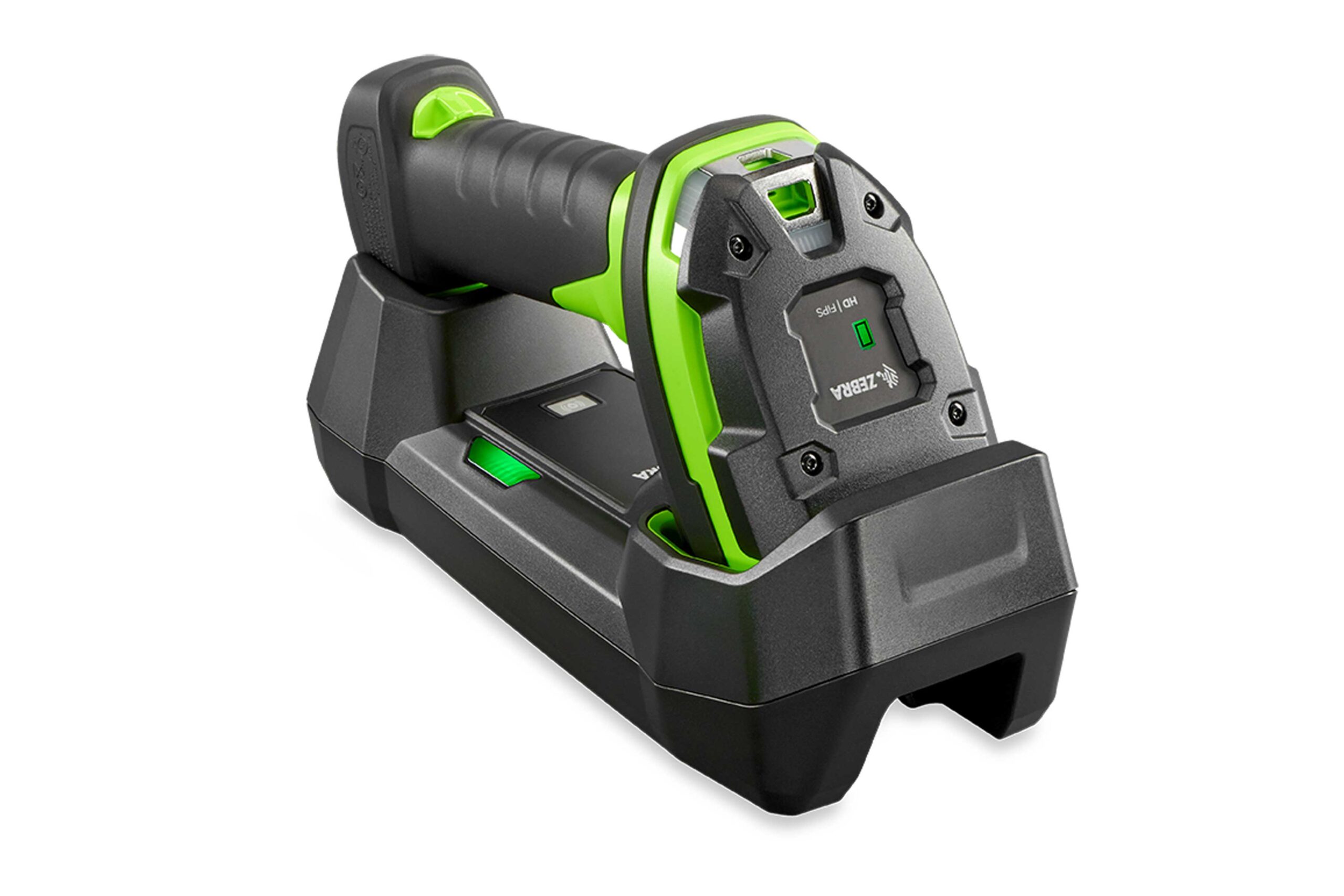

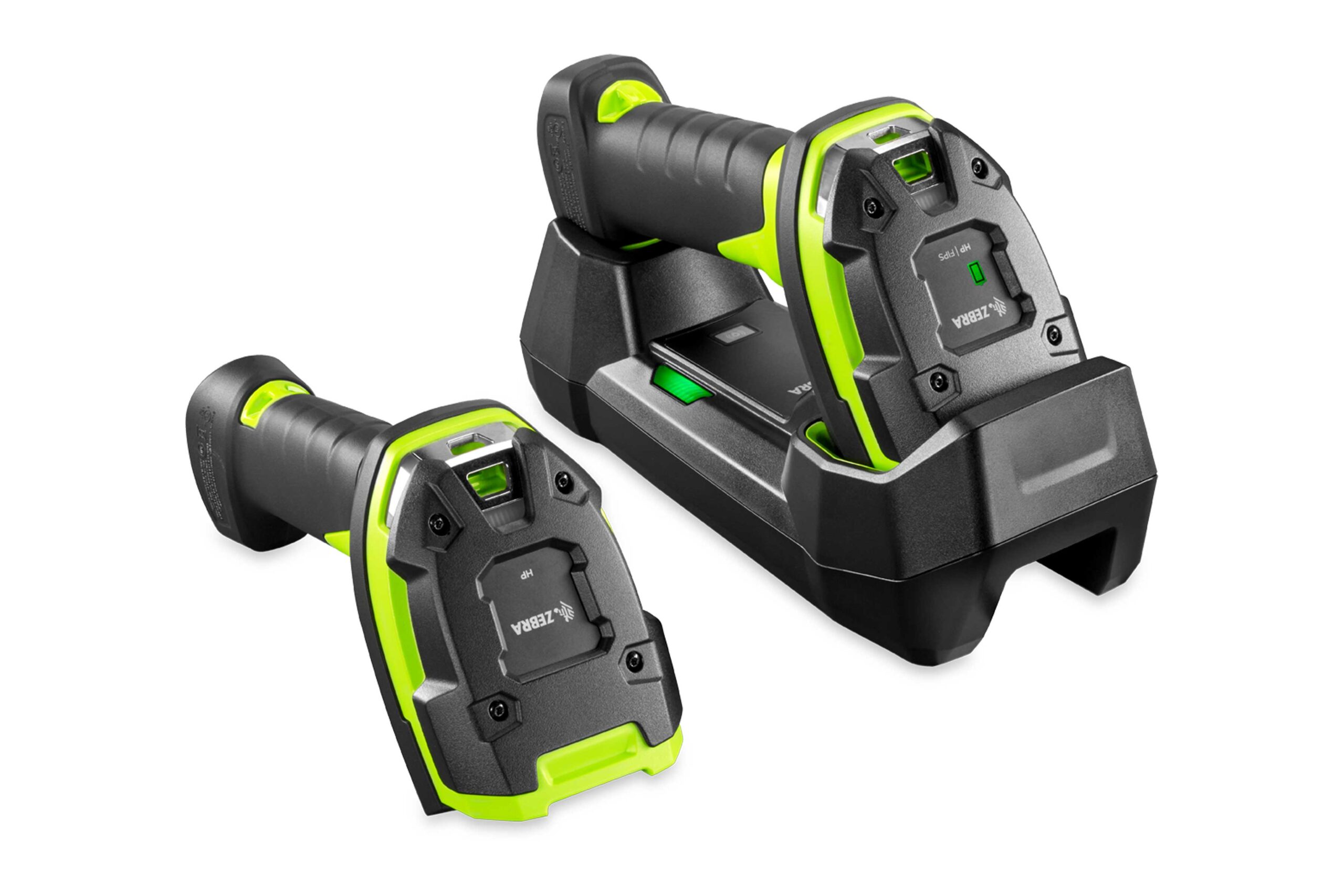

The scanner includes Zebra’s rugged cradle with IP65 sealing and industrial-grade Connect+ charging contacts rated for over 250,000 insertions.

Full enterprise manageability is offered via Zebra’s DataCapture DNA platform, with tools such as Label Parse+ (GS1 barcode parsing), Multi‑Code Data Formatting (MDF), AutoConfig, Virtual Tether, Wi‑Fi Friendly Mode, ScanSpeed Analytics, remote diagnostics, and a range of feedback modes including vibration, wraparound LEDs, beep tones, and Direct Decode Indicator. The cordless models deliver over 100,000 scans per charge.

Scanning Capabilities

  • Captures high-density 1D and 2D barcodes (down to ~3 mil), as well as standard-density codes

  • PRZM Intelligent Imaging technology for reliable decode across conditions

Durability & Environmental Resistance

  • Drop tolerance: up to 10 ft (3 m) onto concrete

  • Tumble rating: 7,500 drops

  • Sealing: IP65/IP68 for dust, water jets, and submersion

  • Operates in extreme heat, cold, humidity, and freezer conditions

Cradle & Connectivity

  • Cradle sealed to IP65; Connect+ charging contacts rated for 250,000 insertions

  • Supports corded (USB/serial) or cordless (Bluetooth 4.0 / BLE) operation

Software & Feedback Features

  • Zebra DataCapture DNA ecosystem: includes Label Parse+, MDF, AutoConfig, Virtual Tether, Wi‑Fi Friendly Mode, ScanSpeed Analytics, and remote diagnostics

  • Feedback options: vibration, wraparound LEDs, beep tones, Direct Decode Indicator

Power Performance

  • Cordless variants powered by PowerPrecision+ Li‑Ion battery, offering over 100,000 scans per charge with visible battery status and health indicators

Warranty

  • Standard limited warranty of 36 months from shipment or date of purchase (whichever is later)
