DS3600‑XR

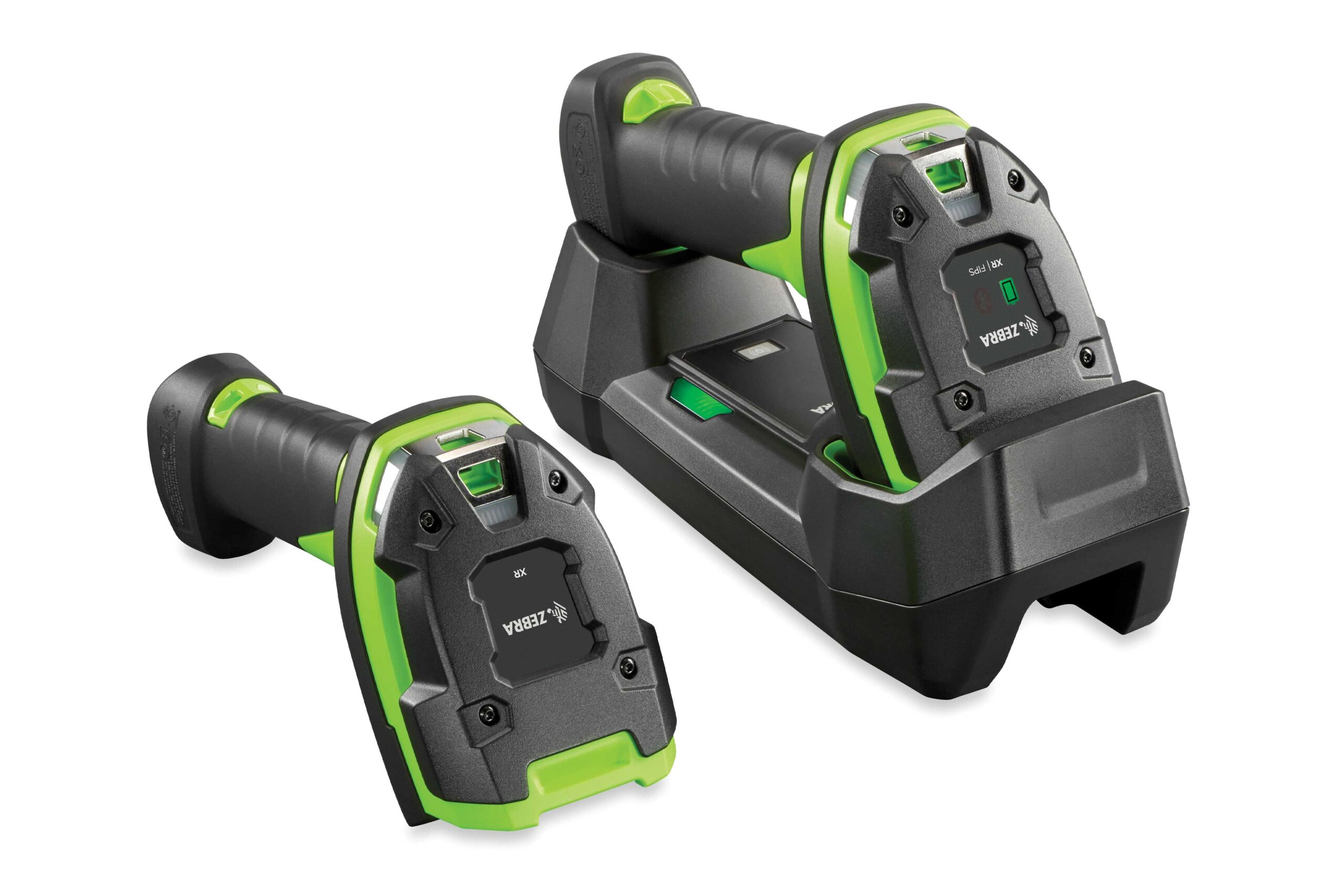

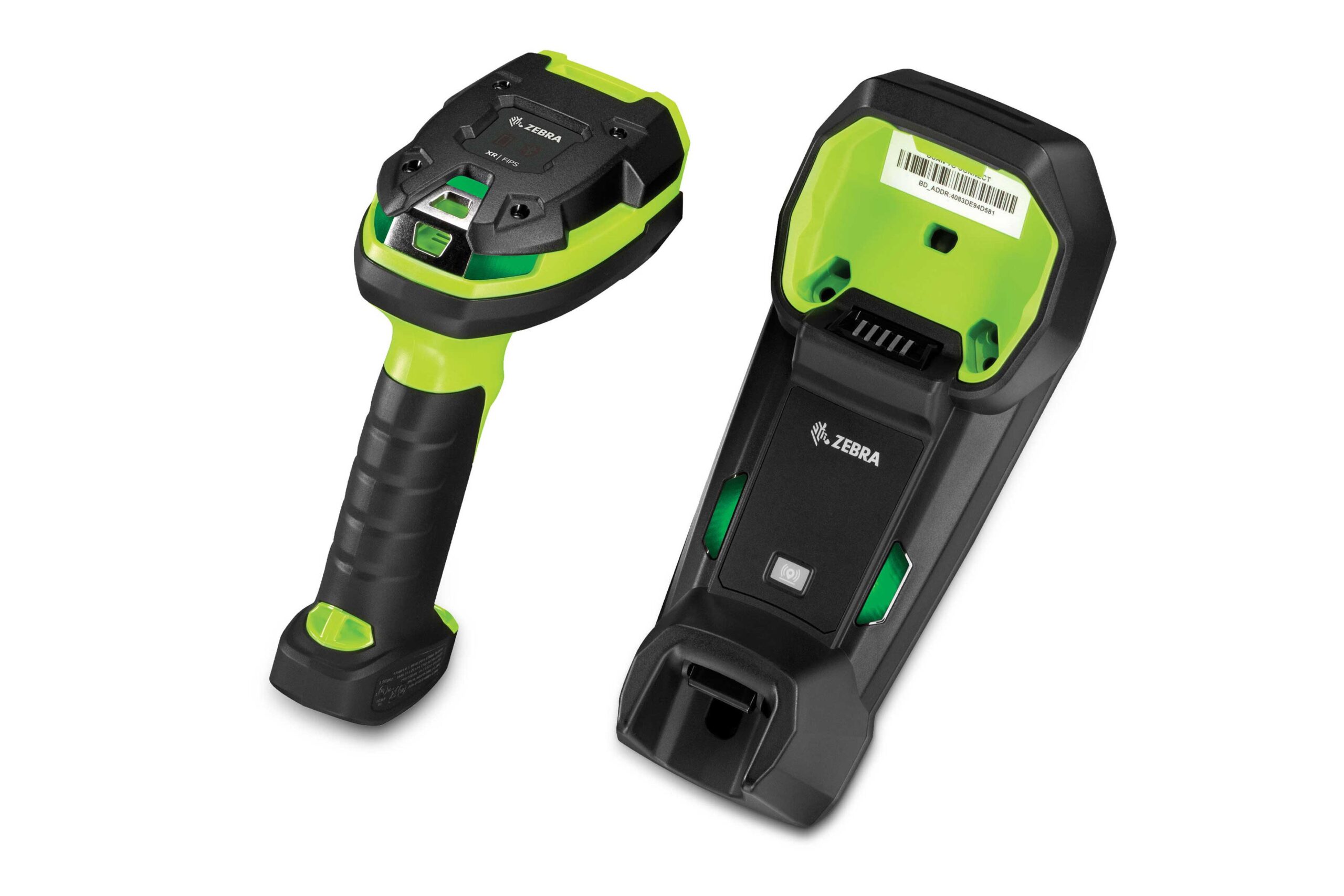

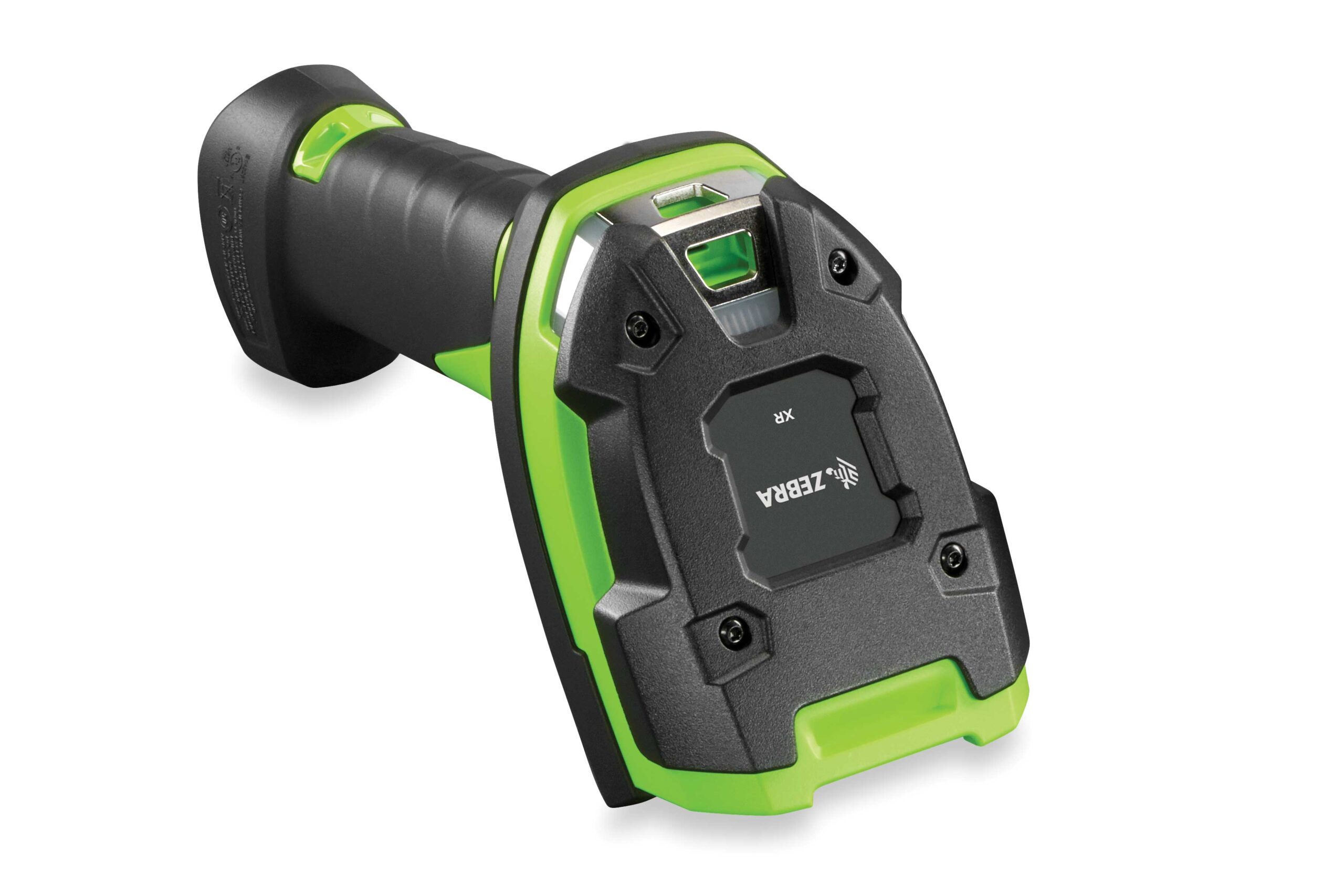

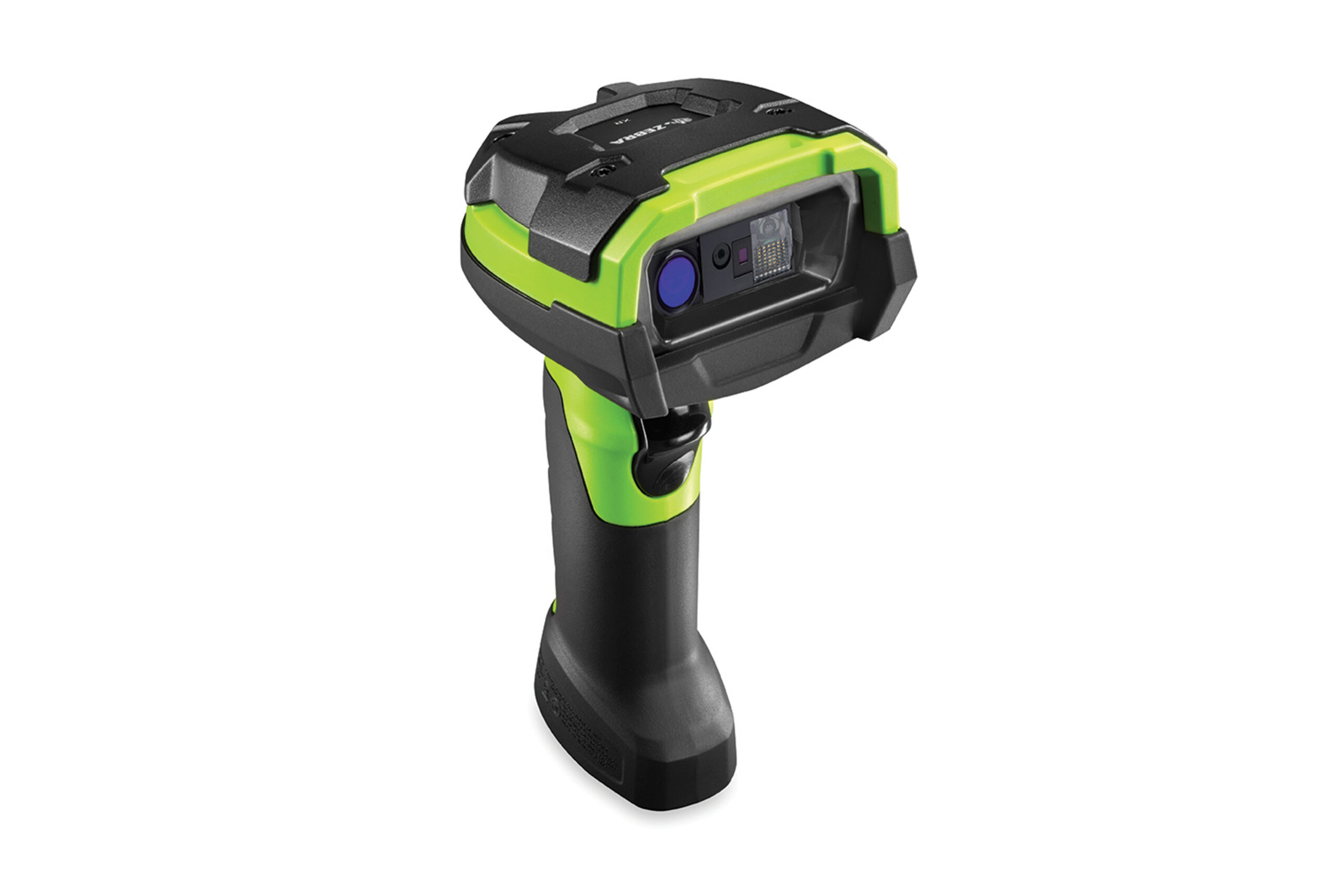

The DS3600‑XR is an ultra‑rugged barcode scanner designed for extended-range scanning of 1D, 2D, and Digimarc codes. It features a high‑visibility green laser aimer and is built to withstand extreme industrial environments with best‑in‑class durability. It delivers superior scan range and precision while being lighter than prior XR-generation models.
The DS3600‑XR raises the bar for extended‑range scanning performance, building on the DS3600‑ER’s rugged design while offering:
-
Class-leading scan range: Reads barcodes from as close as 2 inches (5 cm) up to over 105 feet (32 m), surpassing competing models by more than 25%.
-
Improved visibility: A bright green laser aimer with crosshair overlay offers up to 7× visibility compared to a red dot, enhancing aiming in various lighting conditions, both indoors and outdoors.
-
Ultra‑rugged construction: Withstands drops up to 10 feet (3 m) to concrete, survives 7,500 tumbles, and features dual IP65/IP68 sealing to resist dust, water spray, and submersion. It’s built to endure extreme temperatures, humidity, and even freezer environments.
-
Advanced scanning technology: PRZM Intelligent Imaging and IntelliFocus™ deliver reliable reading of barcodes in challenging conditions—damaged, poorly printed, dense, reflective, or under shrinkwrap.
-
Enterprise-grade manageability: Powered by Zebra’s DataCapture DNA platform, offering firmware, software utilities, and tools like Label Parse+ (for GS1 label data capture) and Multi‑Code Data Formatting (MDF) to streamline workflows.
-
Flexible feedback and configuration: Choose from vibration, wraparound LEDs, beep tones, and Zebra’s Direct Decode Indicator. Cordless models include AutoConfig, Virtual Tether alerting when out of Bluetooth range or left off-cradle.
| Feature | Specification |
|---|---|
| Scan Types Supported | 1D, 2D, Digimarc |
| Image Sensor | 1280 × 800 pixels |
| Scan Range | Approximately 2 inches (5 cm) up to 105 feet (32 m) |
| Aimer | High‑visibility green laser with wide crosshair (≈7× visibility vs. red dot) |
| Durability | 10 ft (3 m) drop to concrete; 7,500 tumbles; IP65/IP68 sealed |
| Operating Conditions | Extreme — including heat, cold, humidity; suitable for freezer use |
| Battery (cordless) | PowerPrecision+ Li‑Ion (≈23 hours / ~80,000 scans per charge) |
| Connectivity | Corded USB; Cordless (Bluetooth 4.0 / BLE) |
| Manageability Platform | Zebra DataCapture DNA |
| Advanced Features | Label Parse+, Multi‑Code Data Formatting, Direct Decode Indicator, IntelliFocus |
| Cradle Durability | IP65-rated; charging contacts rated for 250,000 insertions (Connect+) |
