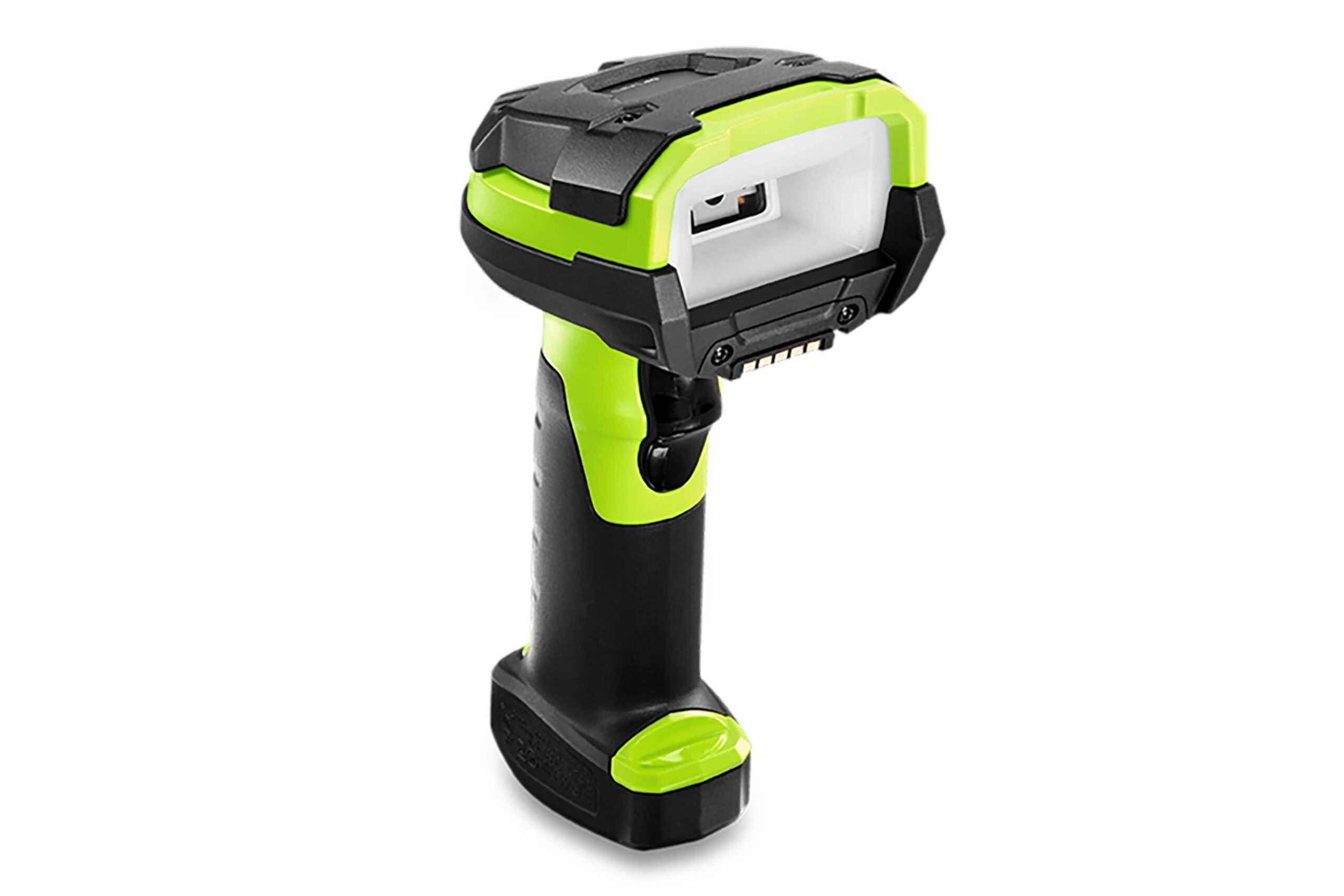

DS3600-DP


DS3600-DP Ultra‑rugged scanner that reads direct part marks and printed 1D/2D barcodes with speed and precision in industrial environments

DS3600-DP Designed specifically for demanding industrial applications, the DS3600‑DP captures virtually every type of Direct Part Mark (DPM)—such as laser-etch, dot peen, chemical-etch, inkjet mold, thermal spray—and printed barcodes including high‑density, damaged, dirty, or under shrinkwrap. It uses Zebra’s PRZM Intelligent Imaging and advanced illumination system to ensure accurate first‑pass capture on even reflective, low‑contrast, or curved surfaces. Built to endure the harshest environments, it withstands 10 ft (3 m) drops to concrete, 7,500 tumbles, and features dual IP65/IP68 sealing for dust, spray, and submersion. Zebra’s DataCapture DNA suite provides powerful tools such as Label Parse+, Multi‑Code Data Formatting, Virtual Tether, AutoConfig, Wi‑Fi Friendly Mode, ScanSpeed Analytics, Network Connect for Automation, and remote diagnostics for efficient management and seamless fleet-wide deployment.

Feature Specification
Scan Capability Direct Part Marks (DPM) + 1D & 2D barcodes
Image Sensor 1280 × 960 pixels
Durability Survives 10 ft (3 m) drops; 7,500 tumbles; IP65/IP68 sealing
Environment Designed for extreme heat, cold, humidity, dust, water spray, or freezer
Illumination System Diffuser and glancing light modes to handle reflective, curved, low‑contrast marks Zebra Technologies+6Zebra Technologies+6Zebra Technologies+6Zebra Technologies+3barcodescannerdeals.com+3Zebra Technologies+3
Scanning Engine Zebra PRZM Intelligent Imaging
Manageability Software Zebra DataCapture DNA (Label Parse+, MDF, AutoConfig, Virtual Tether, ScanSpeed Analytics, Network Connect) InspectNTrackZebra Technologies
Battery (cordless) 3,100 mAh PowerPrecision+ Li‑Ion; over 100,000 scans per charge Zebra TechnologiesInspectNTrack
Connectivity Corded USB or Cordless Bluetooth 4.0 / BLE

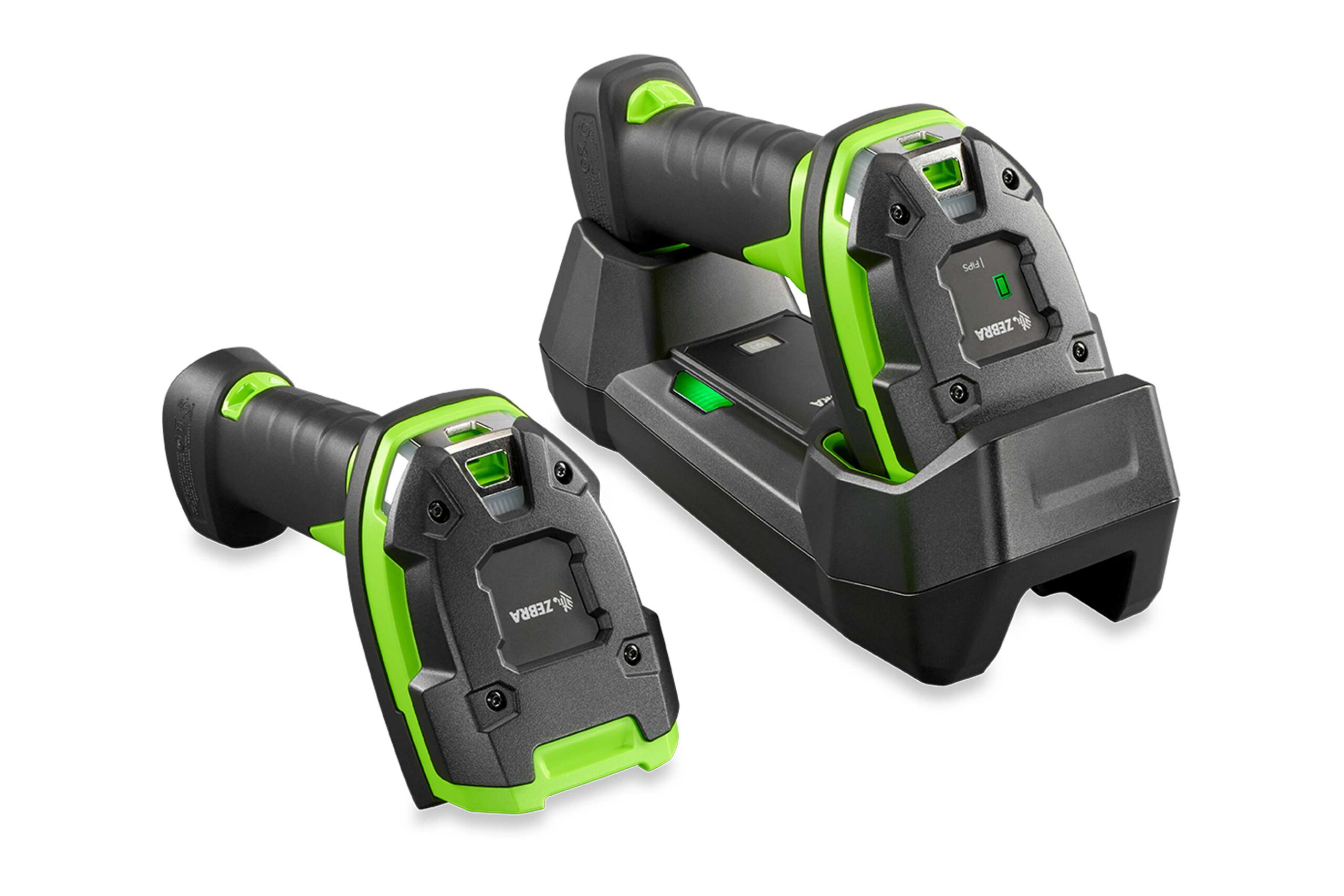

Charging Cradle IP65‑sealed; industrial contacts rated to 250,000 insertions using Connect+ Contact technology Zebra TechnologiesZebra Technologies
Warranty 36 months against defects under proper use
