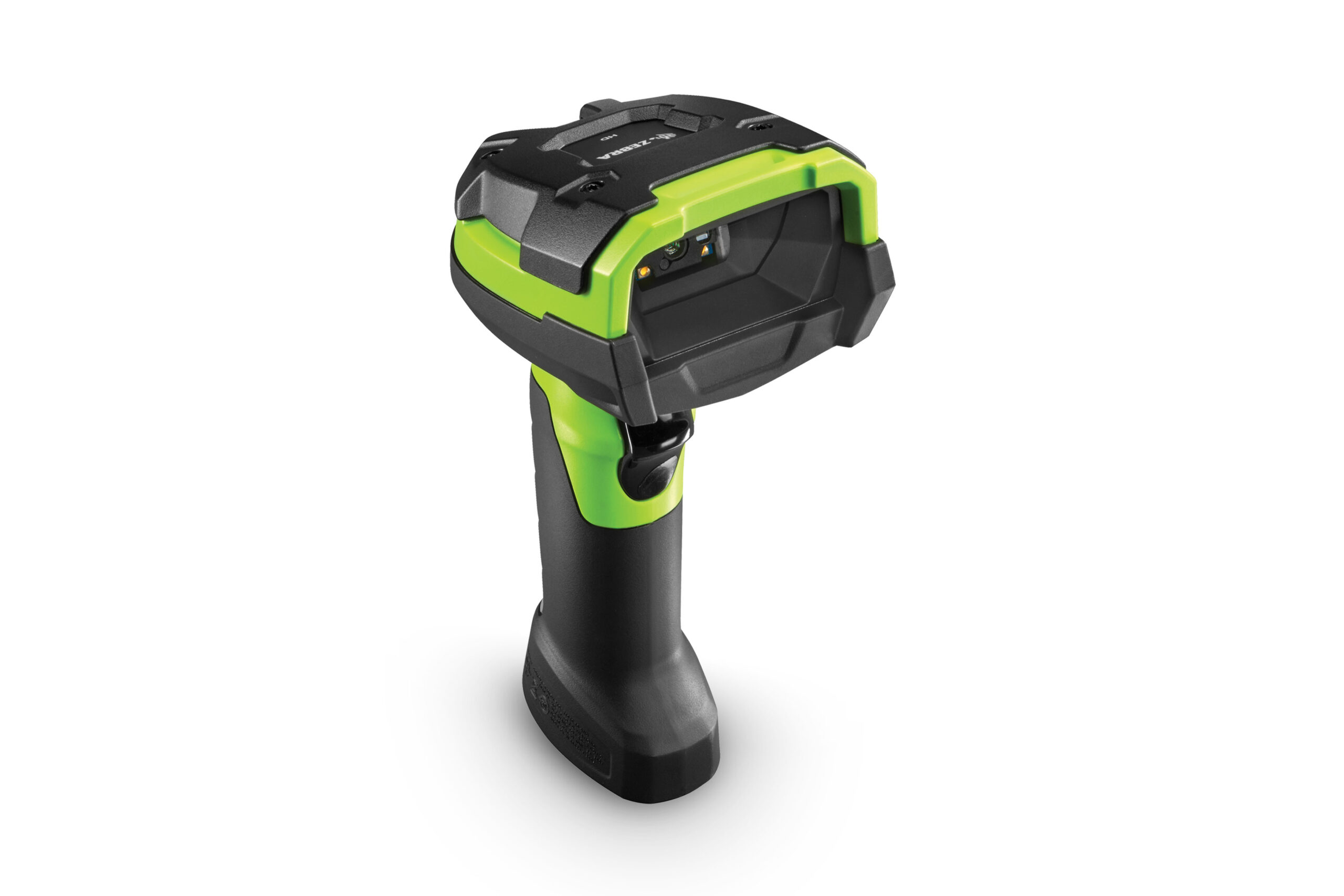

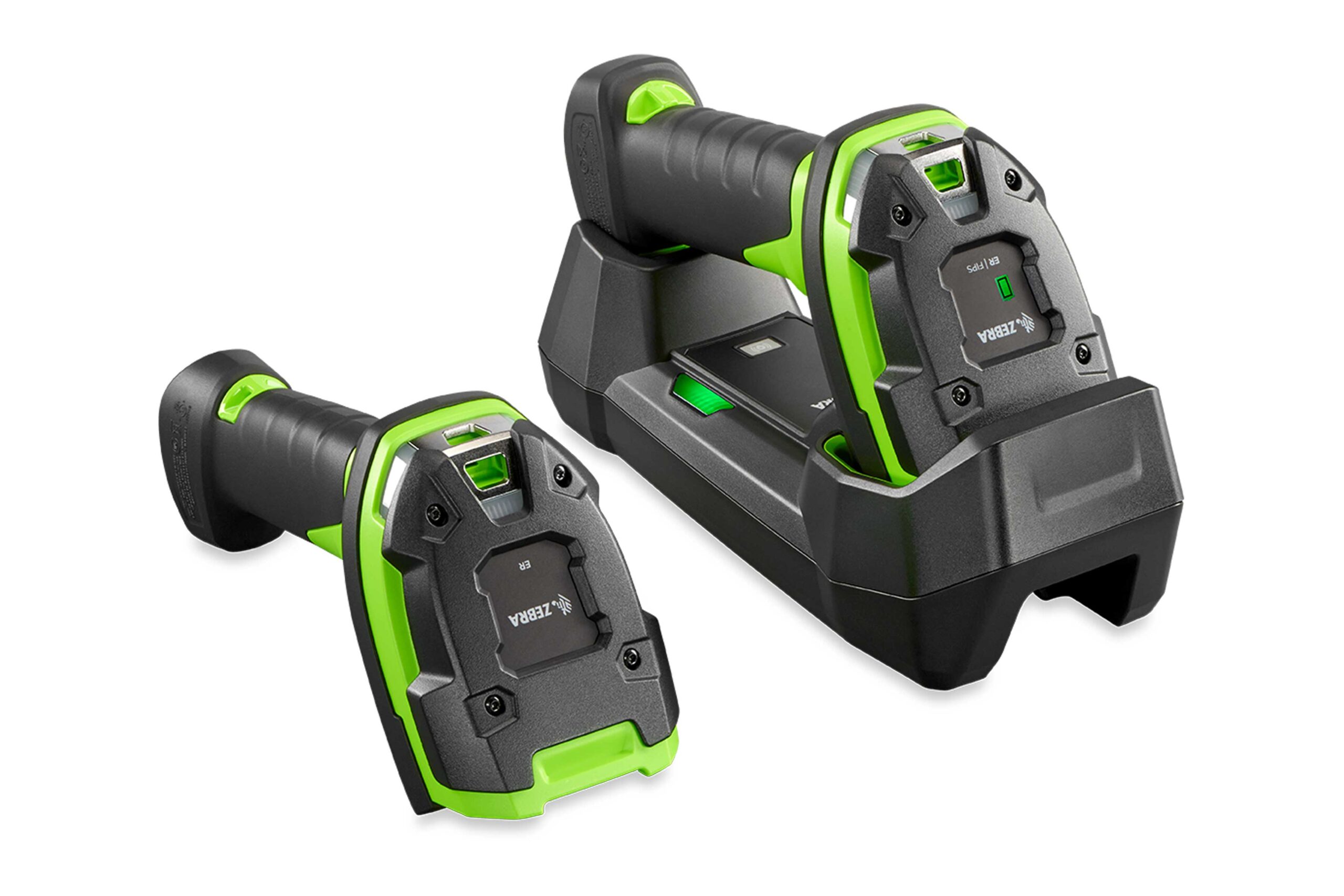

The Zebra DS3600-ER Ultra-Rugged Scanner is engineered to provide reliable and high-speed capture of 1D and 2D barcodes, including those that are dirty, damaged, poorly printed, or under shrinkwrap. It offers scanning capabilities from near contact up to nearly 70 feet (21.4 meters) away, making it ideal for various applications such as shipping and receiving, small item pick and pack, and manufacturing work-in-process.
Built to withstand the harshest conditions, the DS3600-ER features an ultra-rugged design with a 10-foot (3-meter) drop specification to concrete and 7,500 tumbles. It also boasts dual IP65/IP68 sealing, ensuring protection against dust and water ingress, and can operate in extreme temperatures, including freezer environments.
The scanner is equipped with Zebra’s PRZM Intelligent Imaging technology, delivering fast and accurate barcode capture. It also supports Multi-Code Data Formatting (MDF), allowing users to capture multiple barcodes with a single scan and transmit only the necessary data.
• • Performance Characteristics |
• • • • • • • • • • |
Skew Tolerance |
±65° |
Pitch Tolerance |
±65° |
Roll Tolerance |
±45° |
Scan pattern |
Single bright aiming line |
Scan Angle |
Horizontal 35° |
Scan Speed |
547 scans per second |
Motion Tolerance |
25 in./ 63.5 cm per second |
Light Source |
LED Class 1 device 617nm (amber) |
Minimum Print Contrast |
15% MRD |
Scan Per Charge |
Up to 57,000 |
Hours of Operation |
Per full charge: 72 hours |
Utilities |
123Scan, Remote Scanner Management (RSM), Scanner Management Services (SMA), Zebra Scanner SDK |
• • USER ENVIRONMENT |
• • • • • • • • • • |
Ambient Light Immunity |
Max 108,000 lux |
Operating Temperature |
32° F to 122° F/ 0° C to 50°C |
Storage temperature |
-40° F to 158° F/-40° C to 70° C |
Humidity |
5% to 85% RH, non-condensing |
Drop Specification |
Over 100 drops at 5 ft./1.5 m at room temperature, survives 6 ft./ 1.8 m drops to concrete |
Environmental Sealing |
IP53; Gasket sealed housing withstands dust and can be sprayed clean |
Bar Code Symbologies |
Bookland EAN, Bookland ISBN Format, Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 ( ITF), Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Discrete 2 of 5 (DTF) Codabar (NW – 7) MSI Chinese 2 of 5 IATA Inverse 1-D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, EAN-13/ JAN 13, EAN-8/JAN 8, GS1 DataBar Expanded, GS1 DataBar Limited, ISBT 128, ISBT Concatenation, ISSN EAN Code 128 Including GS1-128, UCC Coupon Extended Code, UPC-A, UPC-E, UPC-E1 |
• • WIRELESS CONNECTIVITY |
• • • • • • • • • • |
Radio |
Bluetooth v2.1 Class 2 Radio |
Data Rates |
3.0 Mbit/s (2.1 Mbit/s), Bluetooth v2.1 |
Radio Range |
330 ft./100 m (line of sight) |
• • Physical Characteristics |
• • • • • • • • • • |
Dimensions |
3.84 in. H x 2.75 in. W x 7.34 in. L, 9.8 cm H x 7 cm W x 18.6 cm L |
Weight |
7.9 oz./224 grams |

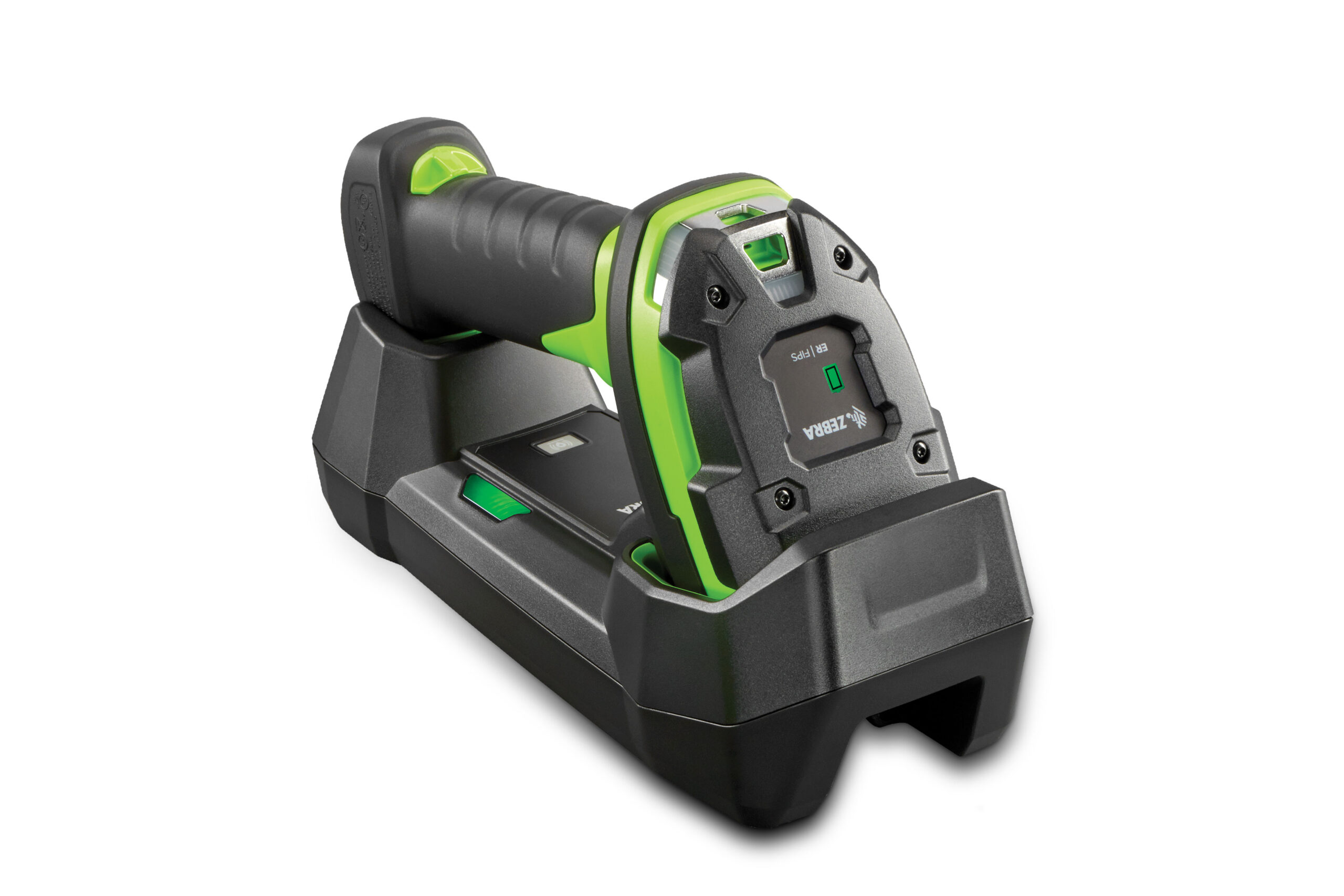

Cradle Interface |
Keyboard Wedge, RS232, RS485 (IBM), USB |
COLOR |
Black, White |
Battery |
Rechargeable replaceable battery with ‘green sustainability’ |
• • DECODE RANGE |
• • • • • • • • • • |
3 mil |
Minimum resolution |
4 mil |
4-10 in./10.2-25.4 cm |
5 mil |
3-13 in./7.6-33 cm |
7.5 mil |
1.5-19 in./ 3.8-48.3 cm |
13 mil (100% UPC-A) |
1-31 in./2.5-78.7 cm |
20 mil |
1-42 in./2.5-106.7 cm |
26 mil (200% UPC-A) |
3-55 in./7.6-140 cm |
100 mil (paper) |
>20 ft./6 m |
• • REGULATORY |
• • • • • • • • • • |
Technical Requirements |
EMC FCC Part 15 Class B, EN 60950- 1, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/ EEC Electrical Safety C22.2 No. 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1 |
Environmental |
RoHS compliant |
BRAND |
ZEBRA |
