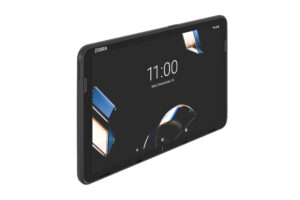

ET40-HC


The Dependable Healthcare Tablet for Caregivers Inside Your Facilities

The ET40-HC with Wi-Fi 6 wireless connectivity is designed for use inside your facility. Nurses can use the ET40-HC to access and update electronic health records (EHRs), receive patient medical alarms and alerts, and reach co-workers. Inside waiting rooms, use the ET40-HC in the Presentation Stand to create a self check-in kiosk. Bedside in patient rooms, they can provide patients access to entertainment or their own care and enable patients to order food service for non-emergency needs.

Physical Characteristics



Dimensions 10.15 in. L x 6.41 in. H x 0.45 in. D
257.9 mm L x 162.9 mm H x 11.4 mm D
Weight 1.54 lbs/699 g
Display 10.1 inch/25.7 cm: 500 nits, color WUXGA
1920×1200; Corning® Gorilla® Glass
Housing Advanced disinfectant-ready plastics
Imager Window Corning Gorilla Glass
Touch Panel Capacitive multi-touch
Connectivity Docking connector (charge and data)
USB-C side port with protective cover (charge and data)
SIM Slots 1 nano SIM
Notifications Audible tone; multi-color LEDs; vibration
Keyboard Options Virtual, Bluetooth, USB
Audio Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth
Buttons Volume up/down; power on/off; barcode scanner; red alert button; programmable buttons



Performance Characteristics



CPU Qualcomm SnapdragonTM SM6375
Octa-Core (8): 2.2 GHz (2) and 1.8 GHz (6)
Operating System Android 11; upgradeable to Android 14
Memory 4 GB LPDDR4X SDRAM/64 GB UFS Flash



General Certifications



EPEAT Bronze6, Energy Star6



User Environment



Operating Temp. -4°F to 122°F/-20°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% non-condensing
Drop Specifications 3.3 ft./1.0 m to vinyl tile over concrete per MIL-STD-810H
Sealing IP65
Vibration Sine: 4 g’s PK(5 Hz to 2 kHz); Random: 6 g RMS (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Electrostatic
Discharge (ESD)
+/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect



Power



Battery 7600 mAh 3.87 V rechargeable Li-Ion Polymer;
user replaceable (29.41 Wh)



Interactive Sensor Technology (IST)



Ambient Light Sensor Automatically adjusts display brightness and display backlight
Magnetometer eCompass automatically detects direction and orientation
Motion Sensor 3-axis gyroscope; 3-axis accelerometer



Data Capture



Scanning SE4100 1D/2D Scan Engine
Rear Camera Image capture: 13 MP auto-focus camera with user controllable LED flash
Front Camera 5 MP

Wireless Communications



Wi-Fi (WLAN) IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
2×2 MU-MIMO; Wi-Fi® certified; IPv4, IPv6 (Wi-Fi 6)
Cellular (ET45 only)
(WWAN Data Only)
5G (North America, Rest of World)
Global LTE (North America, Rest of World)
3G, 2G (Rest of World)
North America 5G, LTE: AT&T and Verizon
Bluetooth (WPAN) Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)
GPS GNSS supports GPS, Galileo, Beidou, Glonass.
Dual Band (L1+L5)
NFC Reader/Writer: ISO 14443 Type A and B, ECP, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 5; Host Card Emulation
Support for Apple Pay VAS7/Google SmartTap7, NFC Forum Certified



Wireless LAN



Data Rates
5 GHz: 802.11a/n/ac/ax – 20 MHz, 40 MHz, 80 MHz
– up to 1201 Mbps
2.4 GHz: 802.11b/g/n/ax – 20 MHz – up to
286.8 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz):

1,2,3,4,5,6,7,8,9,10,11,12,13

Channel 36-165 (5180-5825 MHz): 36,40,44,48,52,
56,60,64,100,104,108,12,116,120,124,128,132,136,1
40,144,149,153,157,161,165

Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/frequencies and
bandwidths depend upon regulatory rules and
certification agency

Security and
Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP,
and AES); WPA3 Personal (SAE); WPA/WPA2
Enterprise (TKIP and AES); WPA3 Enterprise (AES)
— EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS,
PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP
and EAP-PWD; WPA3 Enterprise 192-bit mode
(GCMP256) – EAP-TLS; Enhanced Open (OWE)
Certifications Wi-Fi Alliance Certifications:
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi
CERTIFIED 6 ; Wi-Fi Enhanced Open; WPA2-
Personal; WPA2-Enterprise; WPA3-Personal;
WPA3-Enterprise (includes 192-bit mode);
Protected Management Frames; Wi-Fi Agile
Multiband; WMM; Wi-Fi Direct
Fast Roam PMKID caching; 802.11r (Over-the-Air); OKC



Wireless PAN



Bluetooth
Bluetooth v5.1 Class 2, Bluetooth Low Energy (BLE)



Regulatory



For Regulatory information, please visit
www.zebra.com/et4x-hc



Warranty



Subject to the terms of Zebra’s hardware warranty statement, the ET40-HC/ET45-HC Enterprise Tablets are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to:
www.zebra.com/warranty



Recommended Services



Zebra OneCareTM Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight

For information on Zebra services, please visit
www.zebra.com/services



Footnotes



1. CBRS is available in the U.S. only.
2. Workstation Connect, Workstation cradle and Presentation stand available 2H 2022.
3. Workforce Connect available Q4 2022.
4. Mobility DNA Enterprise license required for peak performance.
5. Mobility DNA Enterprise license required.
6. EPEAT and Energy Star certifications available Q4 2022.
7. Apple VAS and Google SmartTap available Q4 2022.Specifications subject to change without notice.
