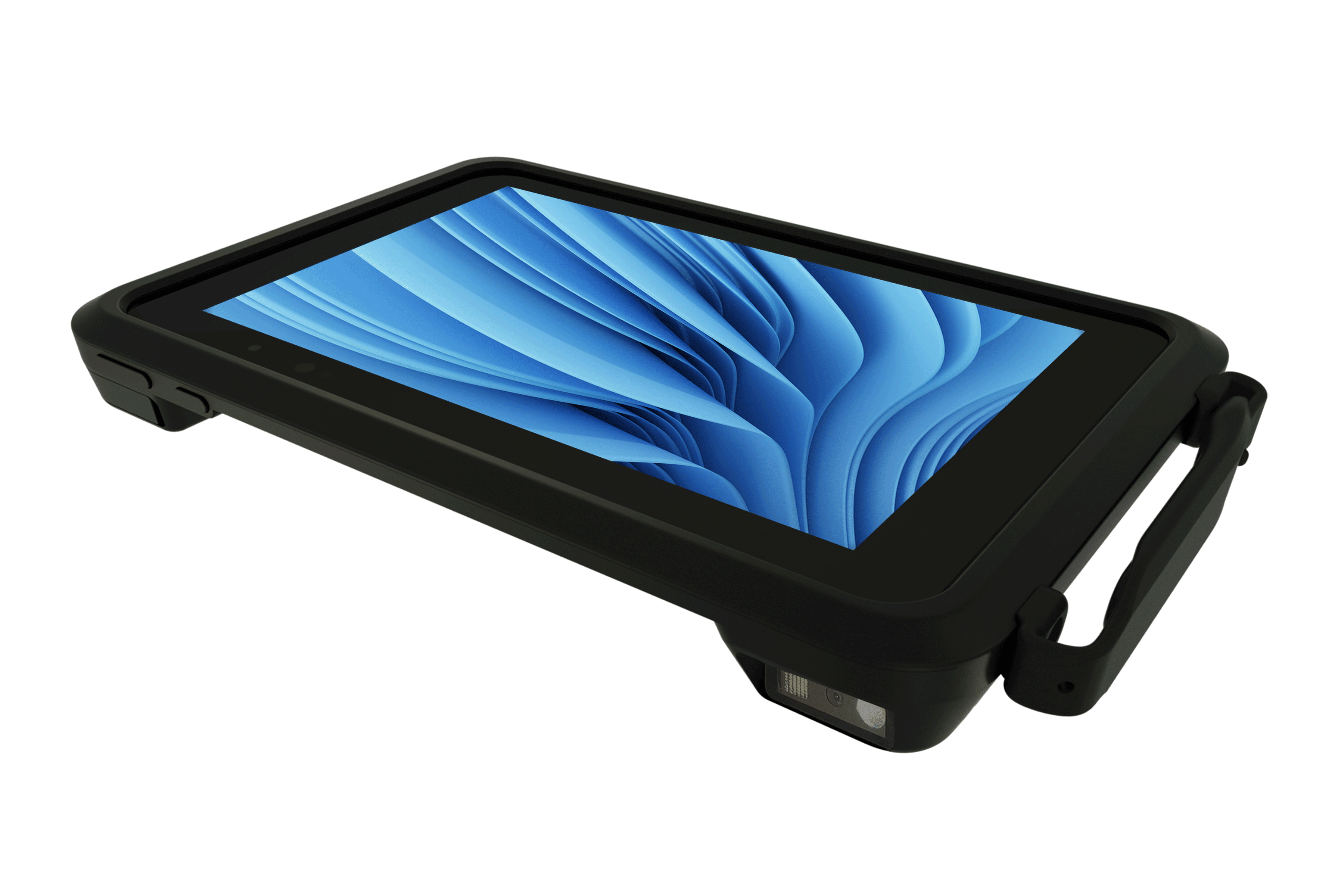

ET51 Windows with Integrated Scanner


A Compact Enterprise Tablet With Built-in Scanning

Integrated SE4710 imager, fully assembled with a pre-installed adjustable hand strap in a protective frame with increased drop specs. Instantly create a mobile payment solution with the use of a Zebra Payment Accessory Cover to attach your payment device.

Physical Characteristics

Dimensions 8.4 in. tablet: 9.7 in. W x 6.5 in. H x 1.1 in. D
246 mm W x 164 mm H x 27 mm D
Weight 740 grams/1.6 lbs
Display 8.4 in.: 21.3 cm; 720 nits
Supports up to 2560×1600;
Corning Gorilla Glass; daylight viewable
Touch Panel Capacitive 10 point multi-touch
Keyboard Options Virtual; Bluetooth®
Expansion Integrated connector to easily add accessories
Connectivity USB-C, Rugged connector for use with rugged dock (charge and data)
Notification LED flash; barcode decode;** camera LED indicator
Audio Stereo speakers and dual front-facing microphones

Performance Characteristics

CPU Intel Atom A3940 quad core 1.6 GHz (Turbo Frequency = 2.0 GHz) Frequency supports 64 bit OS
Operating System Windows 10 IoT Enterprise
Memory Standard Memory configuration: 4GB LPDDR4 RAM; 64GB eMMC Flash; User accessible micro SDXC card slot (standard supports up to 200GB) Extra Memory Configuration: 8GB LPDDR4 RAM; 128GB eMMC Flash

User Environment

Operating Temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -4° F to 140 ° F/-20° C to 60° C
Drop Specification Standard: 4 ft./1.2 m to concrete or 5 ft./1.5 m to plywood
Sealing IP65
Vibration Random: 0.02²/Hz, 20Hz to 2khz 4g RMS 1 hour per axis
Humidity 10% to 90% non-condensing

Power

Battery User Profile Ample power for a full shift; continuous operation is enabled with the secondary optional battery
Battery 3300 mAh 7.6V rechargeable Li-Ion; user replaceable (25 Whr)
Optional hot swappable 7.2V @ 3400mAh (24.4Whr)
USB-C charging: Supports USB-PD (Power Delivery) charging on USB-C connector up to 18W (9V and 12V modes) via Zebra’s power supply (PWR-WUA5V12W0) and cable (CBL-TC2X-USBC-01)

Data Capture

Scanning Integrated SE4710 standard range 1D/2D scan engine
Rear Camera Image capture: 8MP auto-focus camera with user controllable LED flash, illumination and aiming; photographs, video, signatures and documents
Front Camera 2MP 1080p full HD optimized for video collaboration and low lighting conditions
Video 1080p (Full HD, 1920 x 1080), Frame rate = 30fps

Wireless Communications

WiFi (WLAN) 802.11 a/b/g/n/ac/r/k/v; dual band 2×2 MIMO for transmit and receive
Bluetooth (WPAN) Class 1, Bluetooth v4.2 (Bluetooth LE)
GPS GNSS supports GPS, Galileo and Glonass with LTO technology for Assisted-GPS without sacrificing autonomous operation
NFC P2P: ISO 18092; Reader/Writer: ISO 14443 –A-B, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 –A-B-B’, MIFARE, FeliCa RF

Sensors

Gyroscope Maintains orientation based on principles of conservation of angular momentum
Motion Sensor 3-axis accelerometer that enables motion sensing applications for dynamic screen orientation and power management
Ambient Light Sensor Automatically adjusts display brightness, keypad and display backlight
Electronic Compass Independent — does not depend on GNSS

Peripherals and Accessories

Accessories include: ShareCradles (4-slot); docking stations; single slot charge or charge/communication cradles; 4-slot optional battery charger; expansion back with accessories like hand strap and optional battery bay; passive stylus

Regulatory

For Regulatory information, please visit www.zebra.com/et5X

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the ET51 Enterprise Tablet is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty

Recommended Services

Zebra OneCare Select and Essential Support Services
www.zebra.com/zebraonecare ) maximize the availability and productivity of your devices. Features include 24/7 technical support, device diagnostics, comprehensive coverage, advance replacement and software updates. Optional Visibility Services are available.

Footnotes

* The integrated 8MP color camera does not offer PRZM, Zebra’s advanced scanning algorithms or Intelligent Document Capture. Those options are only available on Zebra scanners that are integrated via the expansion pack and Zebra’s Bluetooth scanners, such as the RS6000 ring scanner, the CS4070 pocketable companion scanner and Bluetooth handheld scanners.
