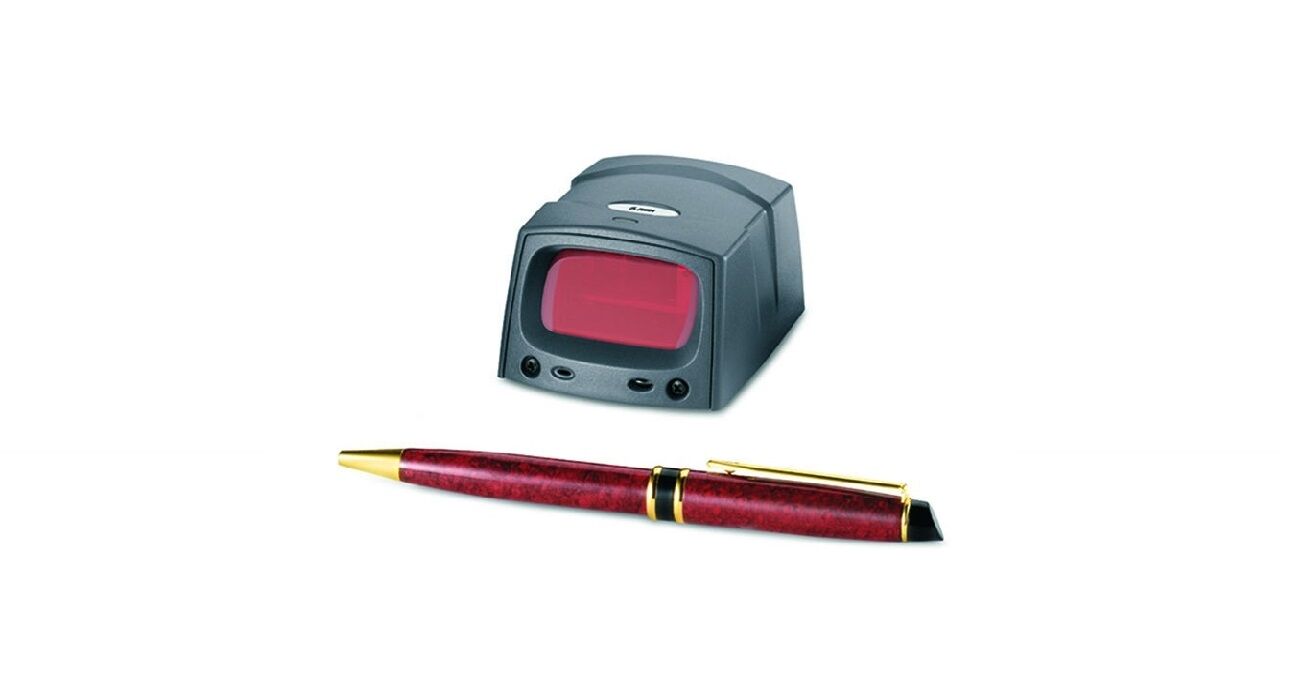

Fixed Mount Scanner MiniScan MS12xx
,

Fixed Mount Scanner MiniScan MS12xx

Zebra Products In Qatar

The MS12XX Series is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) or wide angle (WA) versions for maximum versatility. The Zebra MS12XX FZY versions feature fuzzy logic for premium scanning on 1D bar codes, including poorly printed and low contrast. The MS12XX Series is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Add to quote

The MS12XX Series is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) or wide angle (WA) versions for maximum versatility. The Zebra MS12XX FZY versions feature fuzzy logic for premium scanning on 1D bar codes, including poorly printed and low contrast. The MS12XX Series is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.



SKU: MiniScan MS12xx Categories: , Tags: , , , , , , , , , Brand: , ,
Dimensions

1.60H x 2.28W x 2.94D (in), 40.64H x 57.91W x 74.76D (mm)

Weight

4.45 oz./126 g

Interface

Zebra MS1204 FZY: RS 232, Zebra MS1207 FZY: TTL, RS 232, USB, Synapse

Ambient Lighting Tolerance

Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux), Sunlight: 8,000 ft. candles (86,111 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions.

Operating Temperature

-4° to 122°F (-20° to 50°C)

Storage temperature

-40° to 158°F (-40° to 70°C)

Humidity

5% to 95% non-condensing

Power

Input Voltage: 5.0 VDC ±10%, Scan Current: 160 mA, Standby Current: 20 mA (Zebra MS1204 FZY), 20 mA (Zebra MS1207 FZY)

Drop Rate

Unit functions normally after multiple 30 in (76 cm) drops to concrete

Symbologies Supported

All major 1D bar codes

Programmable parameters

Aim Duration, Beeper Tone, Bi-directional Redundancy, Data Formatting, Laser On Time, Power Mode, Serial Parameters, Symbology Types/ Lengths, Trigger Mode

Laser classification

CDRH Class II, IEC Class 2

Electrical Safety

CA C22-2 NO950 ENG60950/IEC950, Certified to UL1950

Environmental

RoHS compliant

EMI/RFI

Australian SMA, CES-003 Class B European Union EMC Directive, FCC Part 15 Class B

Light Source

Visible laser diode 650 nm

Scan Rate

35 (± 5) scans/sec (bi-directional)

Scan Angle

Alternate (Narrow): 30° ± 2°, Default (Wide): 42° ± 2°

Scan pattern

Linear

Minimum Print Contrast

Minimum 20% absolute dark/light reflectance measured at 650 nm

Ranges - 1-D codes

13 mil: 100% UPC – 80% MRD: 2.2 – 25.75 (in) / 5.59 – 65.41 (cm), 20 mil: Code 39; 2.2:1 – 80% MRD: *1 – 34 (in) / 2.54* – 86.36 (cm) Code 39; 2.2:1 – 25% MRD: *1 -27.25 (in) / 2.54* – 69.22 (cm), 40 mil: Code 39; 2.2:1 – 80% MRD: *2.2 – 66.75 (in) / 5.59 – 169.55 (cm), 5 mil: Code 39; 2.5:1 – 80% MRD: 3.25 – 7 (in) / 8.26 – 17.78 (cm), 55 mil reflective: Code 39; 2.2:1 – 80% MRD: *4 – 75 (in) / 10.16 – 190.5 (cm), 7.5 mil: Code 39; 2.5:1 – 80% MRD: 3 – 12.5 (in) / 7.62 – 31.75 (cm)
