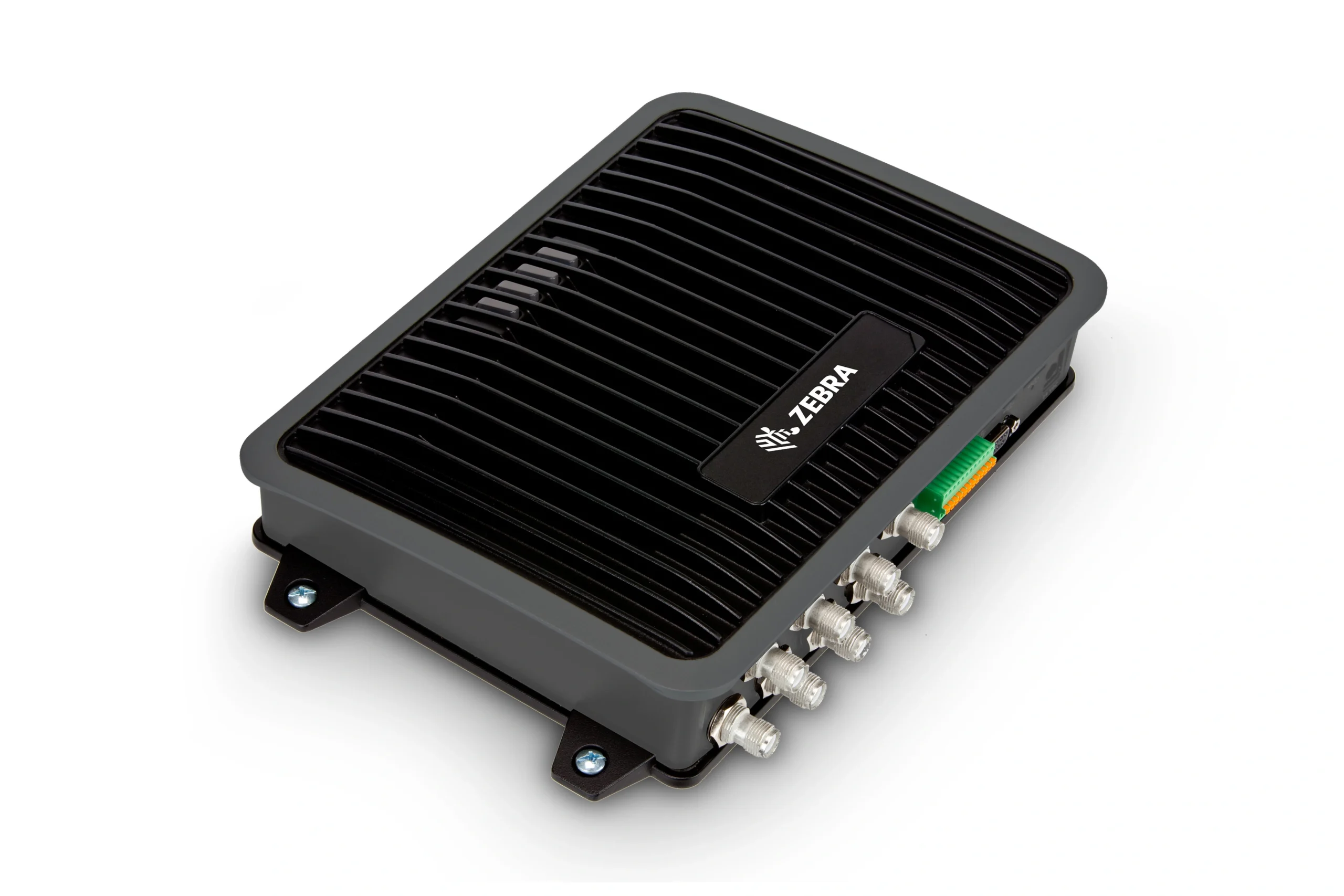

FX9600 Fixed RFID Reader
The Zebra FX9600 Fixed RFID Reader is a powerful UHF fixed-mount RFID reader designed for high-volume, industrial, and warehouse environments. It offers high read sensitivity, multiple antenna port support, and robust build quality — ideal for automated inventory management, receiving/shipping docks, and large-scale asset tracking.
FX9600 is built to meet the demanding requirements of warehouses, distribution centers, manufacturing facilities, and logistic hubs. Whether you’re dealing with pallets, boxes, containers or mixed tagged items, the FX9600 delivers consistent, accurate, and high-speed RFID reading — even when tags are dense or items contain challenging materials such as metal or liquids.
With options for 4-port or 8-port antenna configurations, the reader can cover multiple dock doors or zones with fewer devices, reducing overall cost and infrastructure complexity. Its rugged, die-cast aluminum housing and IP53 sealing ensure durability in dusty, humid, or temperature-variable environments. The streamlined layout puts all cabling and ports on one side, simplifying installation and maintenance.
The reader runs on a Linux-based system with a capable processor, allowing embedded applications to run directly on-device. This enables on-the-edge data processing — reducing bandwidth usage and improving response times. Also, thanks to support for PoE/PoE+ or external 24V DC power, deployment is simplified and power wiring overhead is minimized. The FX9600 helps automate inventory workflows — from receiving to putaway, picking, shipping — reducing manual scanning, human error, and labor costs, while improving throughput and accuracy.
| Category | Details |
|---|---|
| RFID Standard | EPC Class 1 Gen2 / ISO 18000-63 |
| Antenna Ports | 4-port or 8-port variants |
| RF Performance | High sensitivity for dense-tag and high-speed environments |
| Transmit Power | Up to +33 dBm depending on power mode |
| Connectivity | Ethernet, USB host, USB client, serial (varies by model) |
| Power Options | PoE+, or external 24V DC power |
| Operating System | Linux, supports on-device processing |
| Processor & Memory | Industrial CPU with 512 MB flash and 256 MB RAM |
| Ruggedness | Die-cast metal housing, dust-resistant, industrial durability |
| Environmental Rating | Suitable for warehouses and logistics indoor environments |
| Operating Temperature | –20°C to +55°C |
| Dimensions | Approx. 27 × 18 × 5 cm |
| Weight | Around 2.1 kg |
| Applications | Warehouse automation, dock doors, conveyors, pallet and container tracking, industrial asset management |
