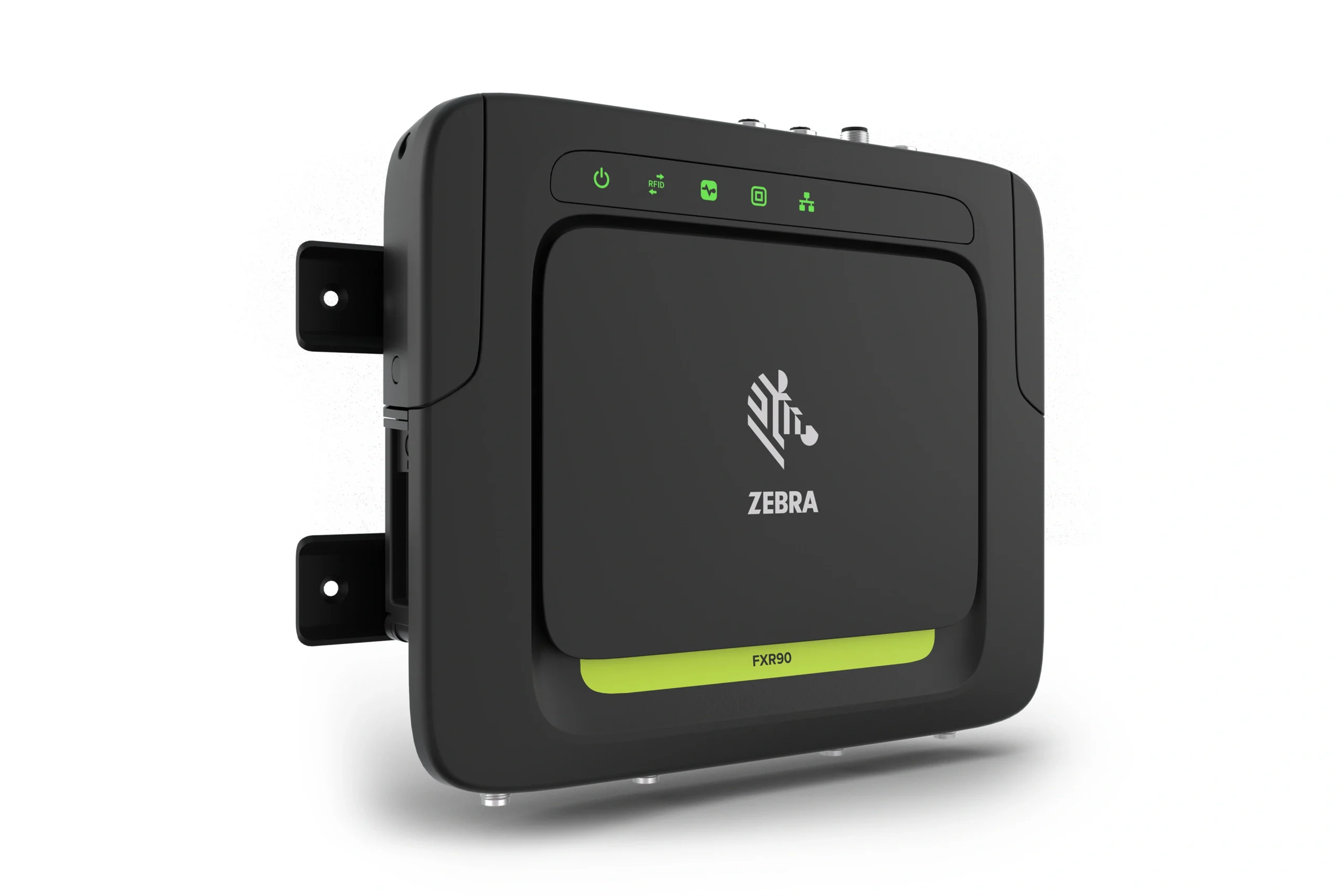

FXR90 Ultra-Rugged Fixed RFID Readers
The FXR90 Ultra-Rugged Fixed RFID Reader is designed for the toughest industrial and outdoor environments. With high-speed tag capture, wide-area coverage, and multiple wireless connectivity options, it ensures real-time visibility and reliable asset tracking in logistics, warehousing, and manufacturing operations.
The FXR90 Ultra-Rugged Fixed RFID Reader is built to deliver exceptional performance where standard RFID readers cannot survive. Whether installed outdoors in harsh weather or in demanding industrial facilities, it provides continuous tracking and precise data capture under challenging conditions such as dust, moisture, impacts, and temperature extremes.
Equipped with a powerful UHF RFID engine and support for up to eight antennas, the FXR90 offers extended read ranges and rapid multi-tag processing for high-density environments. Multiple connectivity options — including Wi-Fi 6, Bluetooth, GPS, and optional 5G cellular — enable flexible installation without reliance on wired infrastructure.
Its metal housing and advanced sealing standards ensure long-term durability, while the onboard Linux operating system delivers reliable computing power for edge data processing. From tracking pallets and equipment to monitoring outdoor logistics yards and production lines, the FXR90 helps organizations boost operational efficiency, reduce errors, and improve inventory transparency across the entire supply chain.
| Category | Details |
|---|---|
| RFID Protocol | EPC Class 1 Gen2 / ISO 18000-6C |
| Read Rate | Over 1,300 tags per second |
| Read Range | Up to ~30 m (depending on antenna and environment) |
| Frequency Bands | Supports regional UHF RFID bands (EU, US, etc.) |
| Antenna Support | Models with 4-port or 8-port antenna connectivity |
| Connectivity | Gigabit Ethernet, USB, Wi-Fi 6, Bluetooth 5.3, optional 5G / CBRS, GPS |
| Power Options | PoE/PoE+, AC/DC adapter, DC vehicle power |
| Operating System | Linux-based platform |
| Processor & Memory | Quad-core CPU with 2 GB RAM and 16 GB internal storage |
| Ruggedness | IP65 / IP67 protection, dustproof, waterproof |
| Temperature Range | Operating: –40°C to +65°C |
| Physical Size | Compact industrial housing, pole/flush or VESA mounting |
| Weight | Approx. 2.5 – 3 kg depending on model |
| Applications | Warehouses, distribution, manufacturing, outdoor logistics, large-area tracking |
