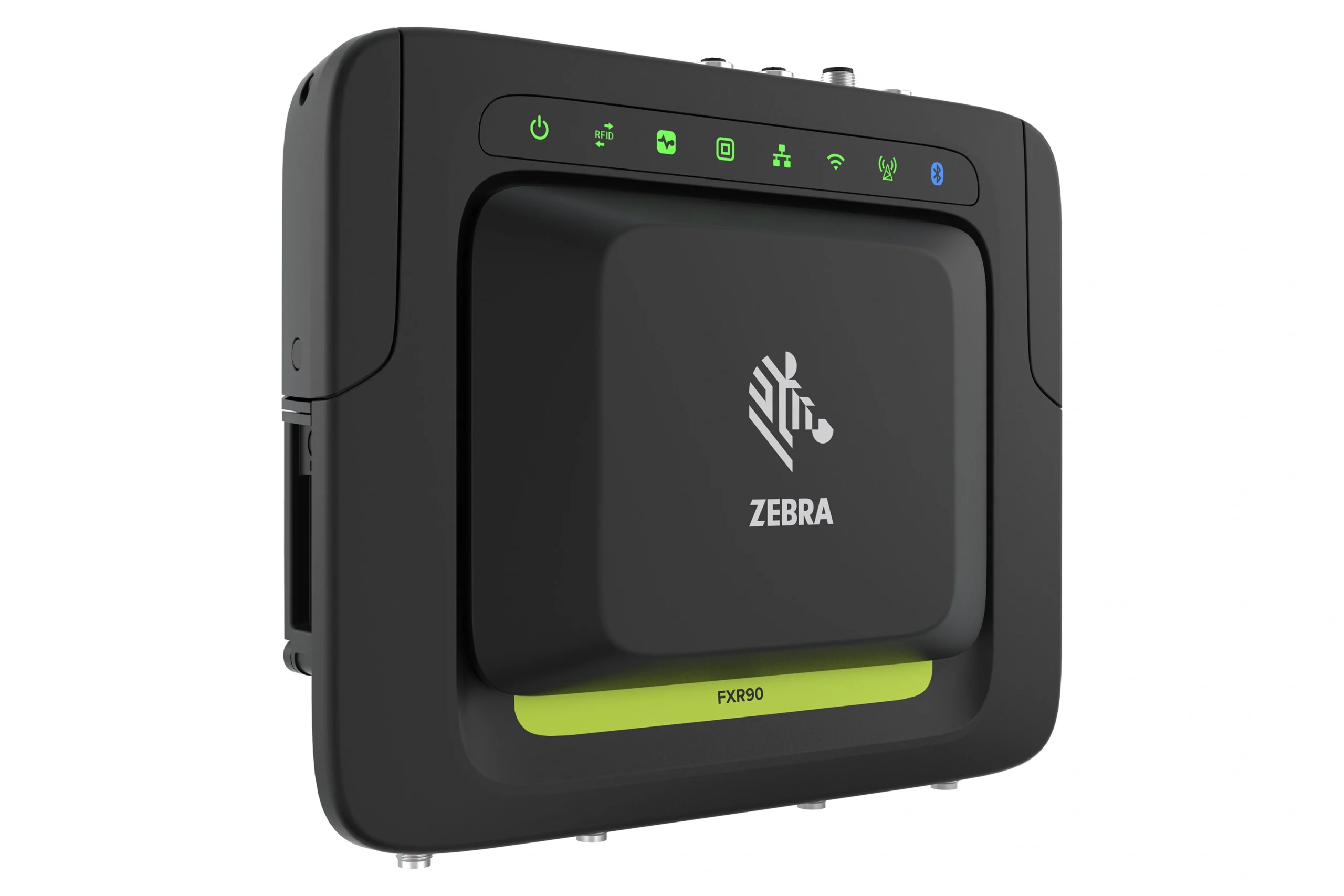

FXR90 Ultra-Rugged Fixed RFID Readers with Integrated Antenna
The FXR90 Ultra-Rugged Fixed RFID Reader with Integrated Antenna combines high-performance RFID reading with a powerful built-in directional antenna. Designed for harsh industrial and outdoor environments, it provides long-range, high-speed tag capture without requiring external antenna hardware, simplifying installation and reducing overall deployment cost.
FXR90 Ultra-Rugged Fixed RFID Readers with Integrated Antenna is engineered for operations that demand superior durability and performance. It offers long-distance RFID reading, fast multi-tag processing, and extensive connectivity — all inside a sealed, compact housing.
With its integrated directional antenna, the FXR90 simplifies setup for indoor and outdoor locations, from dock doors to yard entrances to production lines. It is ideal for tracking assets, pallets, vehicles, containers, and high-value goods across large areas. Designed to withstand extreme temperatures, water exposure, impact, dust, and rough handling, it remains fully reliable in the toughest conditions.
Powered by an industrial-grade processor and running an embedded Linux OS, the reader supports intelligent edge processing — reducing server load and enabling real-time operational visibility. The combination of wireless options like Wi-Fi 6, Bluetooth, GPS, and optional 5G enables flexible deployments wherever wired networking is limited or unavailable.
This heavy-duty integrated-antenna RFID reader delivers performance, connectivity, and simplicity — a perfect choice for companies seeking advanced automation without complex infrastructure.
| Category | Details |
|---|---|
| RFID Protocol | EPC Class 1 Gen2 / ISO 18000-6C |
| Read Rate | More than 1,300 tags per second |
| Read Range | Up to ~30 m depending on tag and environment |
| Antenna | Built-in high-gain directional antenna |
| Antenna Ports | Optional additional ports depending on configuration |
| Frequency Bands | Supports global UHF ranges (varies by region) |
| Connectivity | Wi-Fi 6, Gigabit Ethernet, USB, Bluetooth 5.3, optional 5G/CBRS, GPS |
| Operating System | Embedded Linux platform |
| Processor | Quad-core CPU |
| Memory | 2 GB RAM / 16 GB internal storage |
| Power Options | PoE/PoE+, AC/DC, DC vehicle power |
| Ruggedness Rating | IP65 / IP67, industrial metal housing |
| Operating Temperature | –40°C to +65°C |
| Dimensions | Approx. 29.1 × 25.4 × 7.3 cm (without mount) |
| Weight | Approx. 2.9 – 3.1 kg depending on mount |
| Use Cases | Outdoor gates, dock doors, logistics yards, automated conveyors, industrial tracking |
