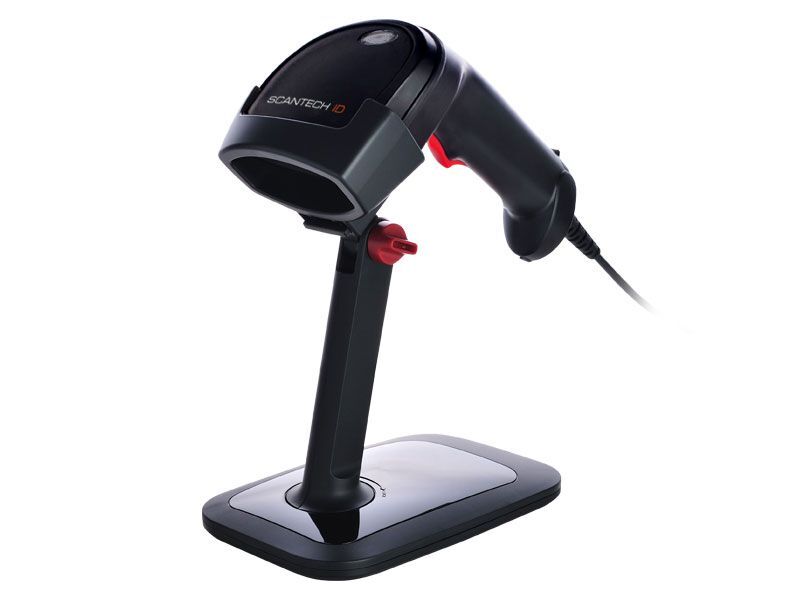

General Purpose Gun Type Scanners SG600


General Purpose Gun Type Scanners SG600 is a versatile gun-type linear imager barcode scanner for retail, offering user-friendly features, multi-interface cables, and optional hands-free scanning.

General Purpose Gun Type Scanners SG600 is a general-purpose gun-type linear imager barcode scanner designed specifically for the retail market. It features user-friendly functions and replaceable multi-interface cable options, making it adaptable to various environments. Additionally, a stand option is available for convenient hands-free scanning, enhancing usability and efficiency in retail operations.



• • ENVIRONMENTAL

• • • • • • • • • •

Ambient light

up to 100,000 Lux

• • SPECIFICATION

• • • • • • • • • •

Dimensions (WxDxH)

169.2 x 71.1 x 62.6 mm

Light Source

632±5nm Red LED

Filed of View

Horizontal: 45°

Depth of Field

Code 39, PCS90%, Up to 500mm@20mil/0.5mm

RESOLUTION

4mil/ 0.1mm

Scan Rate

Smart detection, up to 500 scans

Indicators

Beeper and LED

Drop resistance

1.2m (wireless model), 1.5m (wired model)

Print Contrast Ratio

25%

Wireless Standard

Bluetooth V2.1, HID and SPP profile supported

Battery

Lithium-ion Battery (3.7V, 2600mAh)

Recharge Time

Approx. 5 hours

Scan Per Charge

50,000 times (continuous read)

Radio Transmission Range

Class 1, up to 100m (in open space)

Interface

RS232, USB (HID, Virtual COM)

Power

DC 5V
