Guest Transmitter

04. LRS

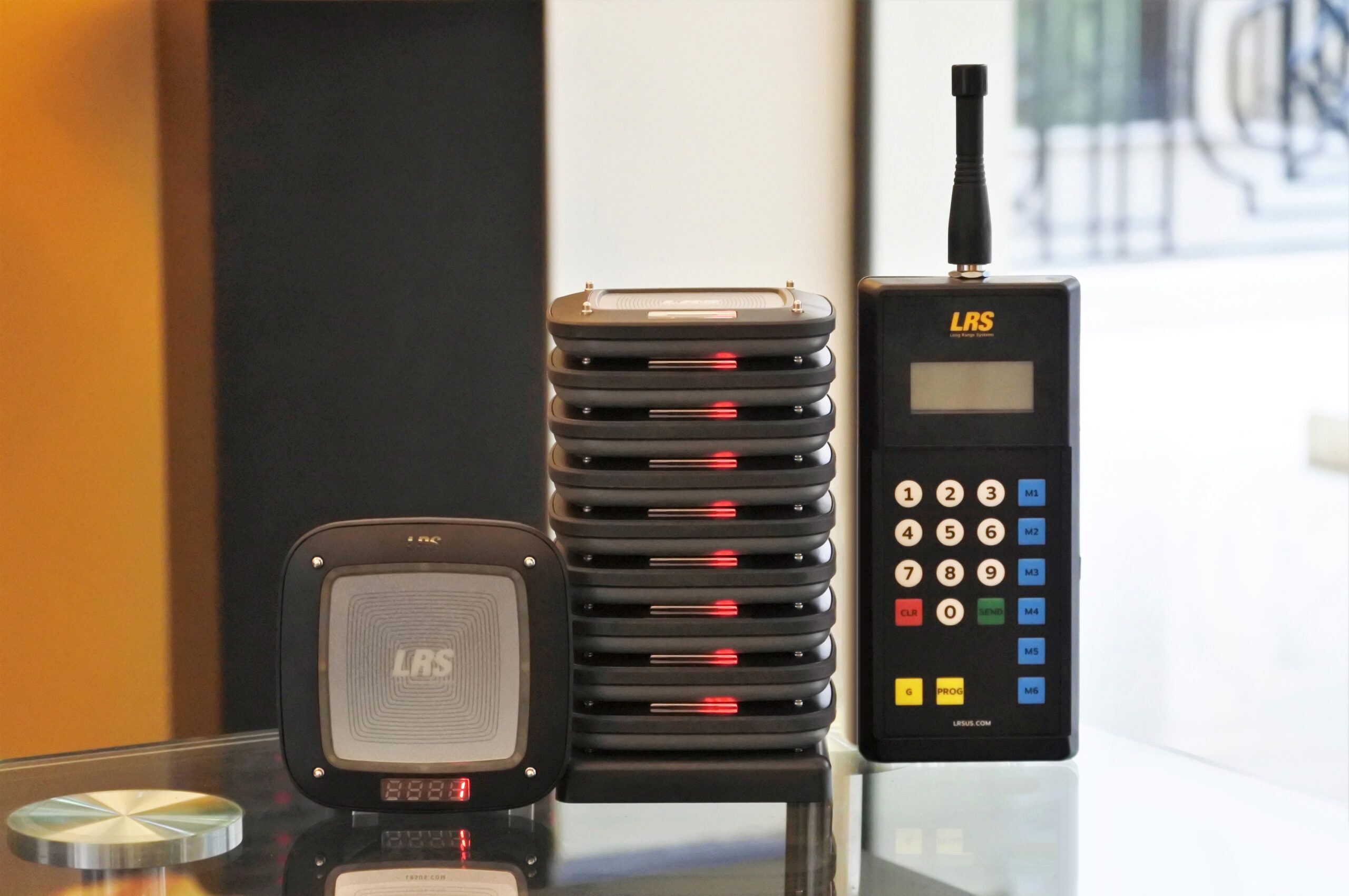

The TX-9560-MT portable guest paging transmitter has been designed to provide your staff members the ability to send customers instant messages, as well as to page customers using any LRS guest pager. This transmitter enhances your overall customer experience by giving them the ability and freedom to sit and relax while they wait for their tables or food orders. With this system, you ensure that customers are instantly notified when your staff are ready to serve them.

The TX-9560-MT portable guest paging transmitter has been designed to provide your staff members the ability to send customers instant messages, as well as to page customers using any LRS guest pager. This transmitter enhances your overall customer experience by giving them the ability and freedom to sit and relax while they wait for their tables or food orders. With this system, you ensure that customers are instantly notified when your staff are ready to serve them.



• • SPECIFICATION

• • • • • • • • • •

Description

4-pin port on bottom side of transmitter for interface with 4-pin programmer (99-0216), 425 MHz – 470 MHz UHF crystal controlled paging transmitter, 4×6 keypad with LCD for user interface, 6 buttons designated for messaging or modes, Pages 1 to 799 pager numbers, Transmit LED

Harware Versions

9560 revision D (in production version)

Firmware Versions Release Version

V 2.41

Power

4 – 1.2V NiMH rechargeable batteries. Charge lasts 1 – 3 days depending on usage., Charging Power Supply 9-12V 4 amp DC (Preferred Power Supply L1-0034), Compatible with 10VAC power Supply (not recommended)

Paging Transmitter

10 kHz deviation, 25kHz Bandwidth, Baud Rate 625 for LRS Guest and 1200 for LRS Alpha pagers, FSK modulation, Power Output: <10mW, Standard 3” 400MHZ Rubber Duck style Antenna, BNC connector, Supports LRS Guest , LRS Staff, 3DPI, LRS Alpha and LRS Alpha coaster

M ax Power ERRP

Power Output:<10mW

Supported Paging

LRS 3 Digit (not produced), LRS Alpha (E467), LRS Alpha Coaster, LRS Guest (Coaster), LRS Staff (SP4)

System ID Range

0-49

Alpha Numeric Messages

48 Characters Maximum, 6 stored Messages, Configurable Text messages with the LRS 4-pin Dongle, Connect to transmitter with serial application at 9600-8-N-

LRS Staff/Guest Mode Pagers

6 modes for staff and or guest mode, Modes vary alert times, vibrations, beeps

Paging Freatures

Dimensions: 3.25” (w) x 10.5” (h) x 1.25” (d), Group Paging with G button, Low Battery Indicator, Pager Programming, Range Test Function

Regulatory Certifications

ANSI C63.4:2009, European Community: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2010, FCC Part 15 Subpart C:2008, United States and Territories: FCC Part 15.231

Ordering Information

TX-9560MT – 434 (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), TX-9560MT – 467 (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)

Frequency Shipped

434.000MHz (Algeria, Bahrain, Egypt, Jordan, Kuwait, Morocco, Oman, Qatar and Tunisia), 467.750MHz (Cyprus, Iraq, Iran, Lebanon, Libya, Saudi Arabia, Turkey, U.A.E and Yemen)
