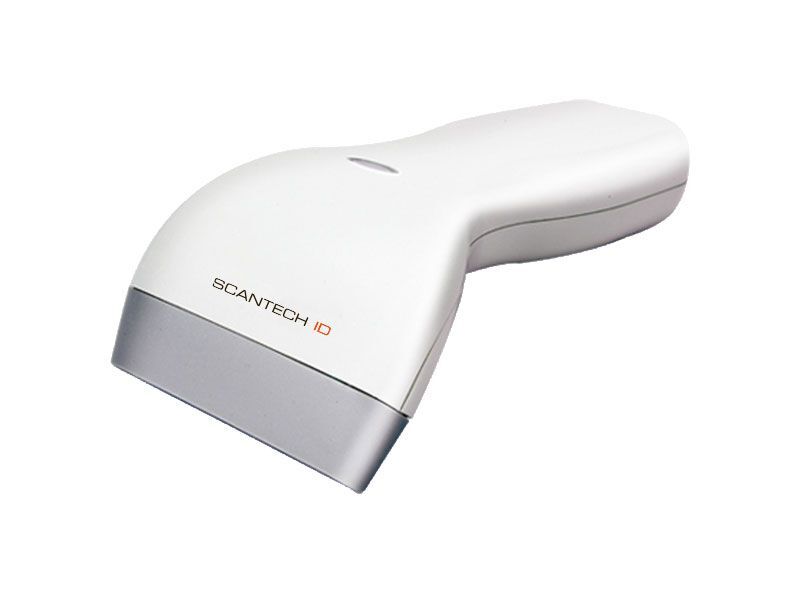

Handheld Linear Image Scanner SD320


The SD320 provides reliable scanning depth from contact to 50mm. The rugged construction and outstanding readability can maximize the reliability and productivity to meet the demands of retail and general commercial applications.

The SD320 provides reliable scanning depth from contact to 50mm. The rugged construction and outstanding readability can maximize the reliability and productivity to meet the demands of retail and general commercial applications.



• • ENVIRONMENTAL

• • • • • • • • • •

Ambient light

Up to 20,000 Lux Max

• • SPECIFICATION

• • • • • • • • • •

Light Source

632±5nm Red LED

Depth of Field

Code 39, Contact to 50mm@20mil/0.5mm, PCS90%

RESOLUTION

4mil/0.1mm

Scan Rate

120 scans

Indicators

Beeper and LED

Drop resistance

1.2m

Print Contrast Ratio

30%

Width of Field

90mm (80mm at window)

Interface

KBW, RS-232, USB (HID, Virtual COM)

Power

DC 5V
