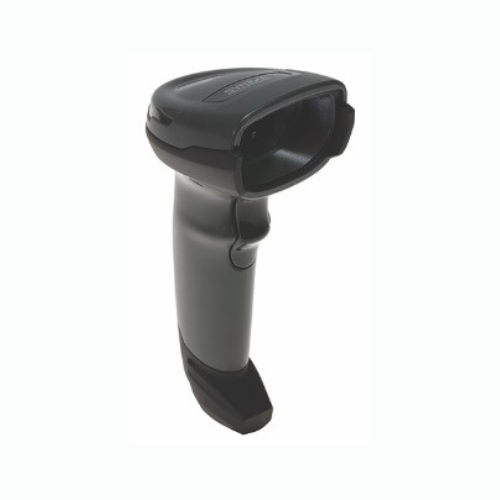

In Counter Scanner DS4308P

Zebra Products In Qatar

The DS4308P is a feature-rich combination handheld and hands-free 2D imager that resets the bar for scanning performance, scanning range, versatility and ease-of-use. In presentation mode, its tiny footprint is ideal for space constrained areas. … A new class of scanner for a new world of bar codes.

The DS4308P is a feature-rich combination handheld and hands-free 2D imager that resets the bar for scanning performance, scanning range, versatility and ease-of-use. In presentation mode, its tiny footprint is ideal for space constrained areas. … A new class of scanner for a new world of bar codes.

Dimensions (WxDxH)

(16.5 cm H x 9.8 cm L x 6.7 cm W), 6.48 in. H x 3.86 in. L x 2.64 in. W

Weight

5.71 oz. / 162 g

Power - Current

5 VDC ± 10% @ 360 mA (RMS typical)

Supported Host Interfaces

IBM RS485, Keyboard Wedge, RS232, SSI, USB

Light Source

Aiming pattern: 617 nm LED, Illumination: 660 nm LEDs

Imager Field of View

36° (H) x 22.5° (V)

Minimum Print Contrast

20% minimum reflective difference

Motion Tolerance

Up to 30 in. / 76.2 cm per second

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0° – 360°

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

32° F to 122° F/0° C to 50° C

Storage temperature

-40° to 158° F/-40° to 70° C

Operating Humidity

5% to 95% RH, non-condensing

Drop Specification

Withstands multiple 6 ft./1.83 m drops to concrete

Ambient Light Immunity

Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86,000 Lux

Barcode Symbologies

• • • • • • • • • •

1D

Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Full ASCII, Code 93, Discrete 2 of 5, GS1 DataBar variants, GS1-128, Interleaved 2 of 5, ISBT Concat, ISBT-128, ISSN, Korean 3 of 5, Matrix 2 of 5, MSI, Trioptic Code 39, UCC Coupon, UPC/EAN, UPC/EAN with supplementals

2D

Aztec, Chinese Sensible Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Postal Codes, QR code, SecurPharm, TLC 39

Min. Resolution

HD: Code 39 3 mil, UPC 60% 7.8 mil, PDF417 4 mil, Datamatrix 5 mil, SR: Code 39 4 mil, UPC 60% 7.8 mil, PDF417 5 mil, Datamatrix 7.5 mil

Hands-Free Options

Gooseneck Intellistand

Power Supplies

Power supplies are available for applications that do not supply power over the host cable
