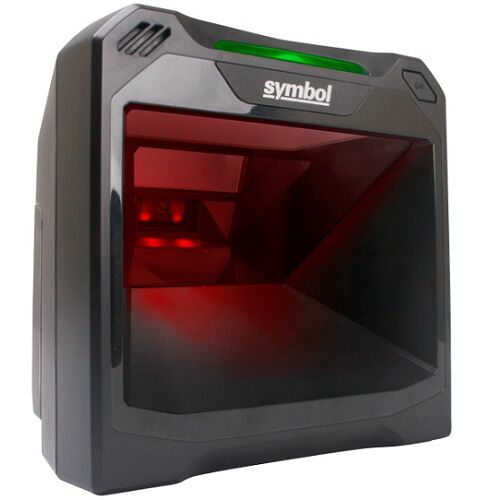

In Counter Scanner DS7708

Zebra Products In Qatar

When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance,
ease of deployment and total cost of ownership. No matter what bar codes appear at your POS, the DS7708 can scan them
all — 1D, 2D, printed and electronic — as fast as your cashiers can slide items past the scan window. With its compact
design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary
durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment.

When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance,
ease of deployment and total cost of ownership. No matter what bar codes appear at your POS, the DS7708 can scan them
all — 1D, 2D, printed and electronic — as fast as your cashiers can slide items past the scan window. With its compact
design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary
durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment.



Dimensions

Scanner only: 5.63 in. H x 5.86 in. W x 3.81 in. D 14.3 cm H x 14.9 cm W x 9.7 cm D, Scanner with Table Mount Kit: 6.06 in. H x 5.93 in. W x 3.85 in. D 15.4 cm H x 15.1 cm W x 9.8 cm D

Weight

17.6 oz. / 500 g

Voltage and Current

With auxiliary scanner: Standby: 12 VDC +/-10% @ 100ma avg. Operating: 12 VDC +/-10% @ 400ma avg., Without auxiliary scanner: Standby: 5 VDC +/-10% @ 125ma avg. Operating: 5 VDC +/-10% @ 480ma avg.

COLOR

Midnight Black

Supported Host Interfaces

Keyboard Wedge, RS232, TGCS (IBM) 46XX over RS485, USB

Keyboard Support

Supports over 90 international keyboards

Auxiliary Scanner Interface

USB

Swipe Speed

Up to 100 in./sec. (254 cm/sec.)

Light Source

Two deep red LEDs (660nm)

Imager Field of View

48.0° x 33.7° (image capture), 48.0° x 36.7° (bar-code reading)

Image Sensor

1280 x 880 (image capture), 1280 x 960 (bar-code reading)

Minimum Print Contrast

25% minimum reflective difference

Roll / Pitch / Yaw (Skew)

360˚, ±70˚, ±70˚ typical

Operating Temperature

32˚ to 104˚ F / 0˚ to 40˚ C

Storage temperature

-40˚ to 158˚ F / -40˚ to 70˚ C

Humidity

5% to 85% RH, non-condensing

Environmental Sealing

IP52

Electrostatic Discharge (ESD)

+/- 25 KV Air Direct, +/- 8 KV Indirect (without auxiliary scanner), ESD per EN61000-4-2

Ambient light

From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight

Symbol Decode Capability

Aztec, Base 32 (Italian Pharma), Chinese Sensible (Han Xin), Codabar/NW7, Code 11, Code 128, Code 39, Code 93, Composite Codes, DataMatrix, GS1 DataBar, I 2 of 5, Korean 3 of 5, MaxiCode, Micro PDF417, Micro QR, MSI Plessey, PDF417, Postal Codes, QR Code, TLC-39, UPC/EAN

Minimum Element Resolution

Code 39 – 3 mil, Datamatrix – 7.5 mil, PDF417 – 4 mil, QR Code – 7.5 mil, UPC – 7.8 mil

Code 39 - 5 mil

0 – 7.2 in. (0 – 18.3 cm)

UPC/EAN – 10 mil (80%)

0 – 10.0 in. (0 – 25.4 cm)

UPC/EAN – 13 mil (100%)

0 – 10.3 in. (0 – 26.1 cm)

PDF417 – 5 mil

0 – 3.5 in. (0 – 8.9 cm)

Datamatrix – 10 mil

0 – 5.0 in. (0 – 12.7 cm)

QR Code – 10 mil

0 – 4.9 in. (0 – 12.4 cm)
