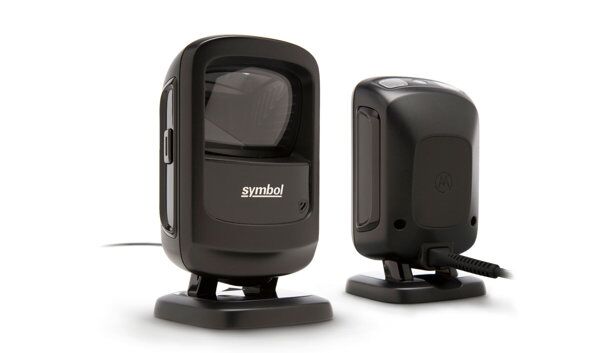

In Counter Scanner DS9208
,

In Counter Scanner DS9208

Zebra Products In Qatar

Whether you need to scan printed bar codes on paper labels or mobile bar codes on the screen of a mobile phone, with the DS9208, you’ll
be ready. You get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 provides all the features
you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity — no need to align
bar code and scanner; and hands-free and handheld flexibility

Add to quote

Whether you need to scan printed bar codes on paper labels or mobile bar codes on the screen of a mobile phone, with the DS9208, you’ll
be ready. You get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 provides all the features
you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity — no need to align
bar code and scanner; and hands-free and handheld flexibility



SKU: DS9208 Categories: , Tags: , , , , , , , , , Brand: , ,
Dimensions

14.0 cm H x 8.21 cm W x 8.0 cm D, 5.512 in. H x 3.232 in. W x 3.150 in. D
Weight

9.5 oz./269 g
Voltage and Current

Idle: 5 ± 10% VDC @ 150ma average, Scanning: 5 ± 10% VDC @ 230ma average
COLOR

Midnight Black
Operating Temperature

32° F to 104° F / 0° to 40° C
Drop Specification

Withstands multiple 5 ft./1.5 m drops to concrete
Humidity

5% to 85% RH (non-condensing)
Ambient Light Immunity

Immune to natural and artificial ambient light (i.e. sunlight, incandescent, fluorescent,mercury vapor, sodium vapor)
• • SYMBOLOGY DECODE CAPABILITY

• • • • • • • • • •
1D

(Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), Codabar/NW7, Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 39, Code 93, Expanded, Expanded Stacked, GS1 Data- Bar Omnidirectional, ISBN (Bookland), ISSN, Coupon Code), Limited, MSI Plessey, Stacked, Stacked Omnidirectional, Truncated, UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals
PDF417 (and variants)

Composite Codes (CC-A,CC-B, CC-C), MicroPDF417(Standard, Macro), PDF417 (Standard, Macro)
2D

Aztec (Standard, Inverse), DataMatrix/ECC 200 (Standard, Inverse), MaxiCode, QR Code (Standard, Inverse, Micro), TLC-39
Postal

Australian Post, Canadian Post (Postbar), Japan Post, Netherlands KIX Code, Royal Mail 4 State Customer, U.K. Post, U.S. Postnet and Planet, upu fics 4 State Postal, USPS 4CB
Nominal Working Range

Code 39 – 5 mil:0 – 4.5 in. (0 – 11.4 cm), Datamatrix – 10 mil:0 – 4.7 in. (0 – 11.9 cm), PDF417 – 6.6 mil:0 – 3.8 in. (0 – 9.6 cm), UPC/EAN – 10 mil (80%):0 – 8.5 in. (0 – 21.6 cm), UPC/EAN – 13 mil (100%):0 – 10.5 in. (0 – 26.7 cm)
Minimum Resolution

Code 39 – 4 mil, Datamatrix – 7.5 mil, PDF417 – 5 mil, QR Code – 7.5 mil, UPC – 7.8 mil (60%)
Electronic Article Surveillance

Compatible with Checkpoint EAS deactivation systems
Accessories

locking mount bracket, Wall mount bracket
Light Source

Aiming pattern: single dot, 625nm LED, Illumination: 630nm LEDs
Imager Field of View

46° Horizontal x 29.5° Vertical
Roll

360°
Pitch

± 65°
Yaw

± 60°
Print Contrast

25% minimum reflective difference
Swipe Speed

Up to 90 in./2.3 m per second
• • Imaging Characteristics

• • • • • • • • • •
Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF
Image Transfer Speed

RS-232: Up to 115 kb/second, USB 2.0: Up to 12 Megabits/second
Image Transfer Time

Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image Quality

120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm
Electrical Safety

EN60950-1: 2nd ed. + A11: 2009 IEC60950-1: 2nd ed, UL6950-1, CSA C22.2 No. 60950-1:2nd ed
LED Safety

EN 62471: 2008, IEC / EN 60825-1: 2001 Class 1M LED, IEC 62471: 2006
EMI/RFI

AS/NZS CISPR22:2006, EN 55022: 2006 + A1: 2007, EN 55024: 1998 +A1: 2001 + A2: 2003, FCC CFR47 Part 15 Class B: 2007, ICES-003 Issue 4 :2004 Class B, VCCI:2007
Environmental

Compliant with RoHS Directive 2002/95/EC
Interfaces Supported

Keyboard Wedge, RS-485 (IBM 46xx Protocols), RS232, USB
