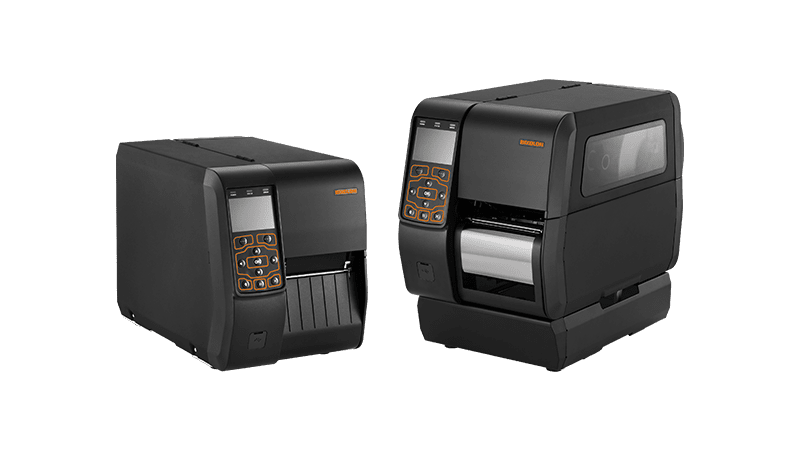

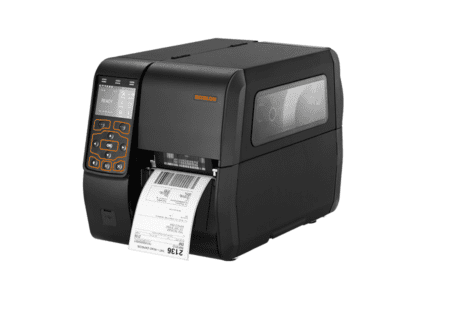

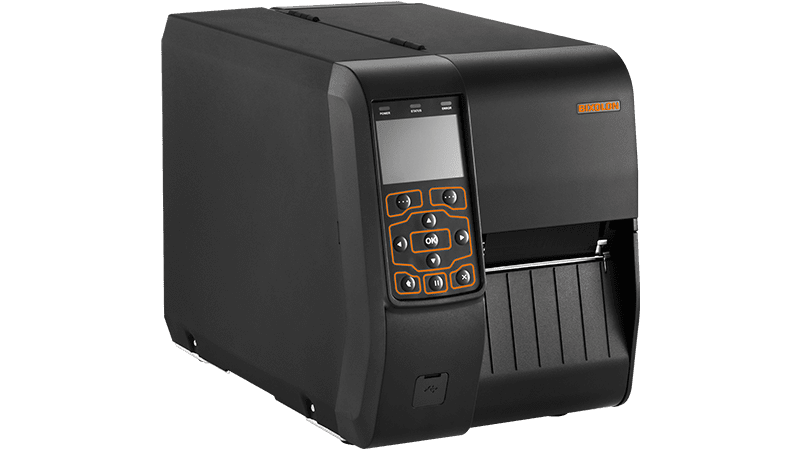

Industrial Label Printer XT5-40

Bixolon Products in Qatar

New to the BIXOLON printer portfolio, the award winning XT5-series enters the Industrial class. Providing a consistent look and feel to the newer Mobile label printers, then XT5-series offers such key features as USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips. Choices of up to 600 dpi resolution for high definition output, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory installed rewind configurations means that there is a choice for all your printing needs. The XT5-series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; however, the printer can be easily controlled thanks to the simple menu layout, but can be also be viewed and controlled remotely thanks to the XPM device management software.

New to the BIXOLON printer portfolio, the award winning XT5-series enters the Industrial class. Providing a consistent look and feel to the newer Mobile label printers, then XT5-series offers such key features as USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips. Choices of up to 600 dpi resolution for high definition output, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory installed rewind configurations means that there is a choice for all your printing needs. The XT5-series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; however, the printer can be easily controlled thanks to the simple menu layout, but can be also be viewed and controlled remotely thanks to the XPM device management software.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal, Thermal Transfer

Print Speed

XT5-40: Up to 14 ips (356 mm/sec), XT5-43: Up to 10 ips (254 mm/sec), XT5-46: Up to 5 ips (127 mm/sec)

PRINT RESOLUTION

XT5-40: 203 dpi, XT5-43: 105.7mm, XT5-43: 300dpi, XT5-46: 105.6mm, Xt5-46: 600dpi

PRINT WIDTH

XT5-40: 104mm, XT5-43: 105.7mm, XT5-46: Up to 1,000 mm

PRINT LENGTH

XT5-40: Up to 4,000 mm, XT5-43: Up to 2,500 mm, XT5-46: Up to 1,000 mm

SENSOR

Head open, Reflective (adjustable), Ribbon-End, Transmissive (Adjustable)

Media Type

Black Mark, Fan-Fold, Gap, Notch

Media Width

25 ~ 114 mm

Media Roll Size

Up to 203 mm

Media Thickness

0.06 ~ 0.30 mm

Supply Method

Easy Paper Loading

Inner Core

38.1 ~ 76.2mm, 25.4mm (option)

Ribbon Type

inside, Outside, Resin, Wax, Wax/Resin

Ribbon Width

50 ~ 110 mm

Ribbon Length

Up to 450 m

Core I.D.

25.4 mm

Dimensions

Rewinder: 269 x 490 x 407 mm (10.59 x 19.29 x 16.02 inch), STD: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)

Weight

Rewinder: 17.98Kg (39.64 lbs.), STD: 13.98Kg (30.82 lbs.)

Power

EnergyStar Certified, Internal Power Adaptor 100-120V/200-240V AC, 50/60Hz

Display

3.5 inch HVGA (262K Colors) TFT LCD

Memory

512 MB SDRAM, 512 MB Flash

Interface

USB + Serial + Ethernet¹ + 2 USB Host ports

Optional Interface

① USB + Serial + Parallel + Ethernet¹ + 2 USB Host ports, ② USB + WLAN² + Ethernet¹ + 2 USB Host ports, ③ USB + WLAN² + Parallel + Ethernet¹ + 2 USB Host ports, ④ USB + Bluetooth³ + Ethernet¹ + 2 USB Host ports, ⑤ USB + Bluetooth³ + Parallel + Ethernet¹ + 2 USB Host ports

Real Time Clock

Supported

Operating Temperature

5 ~ 40℃ (41 ~ 104℉)

Storage temperature

-20 ~ 60℃ (-4 ~ 140℉)
