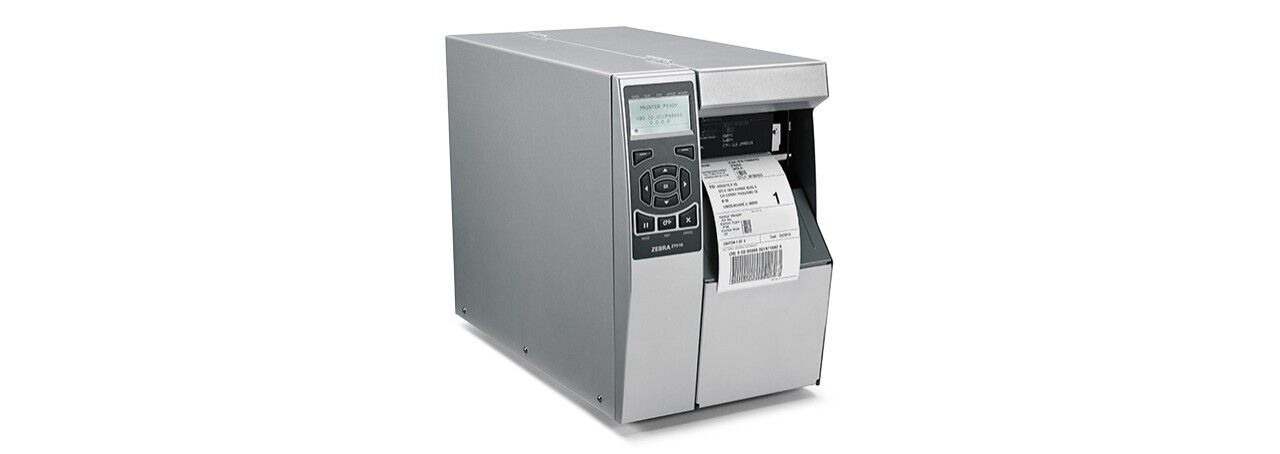

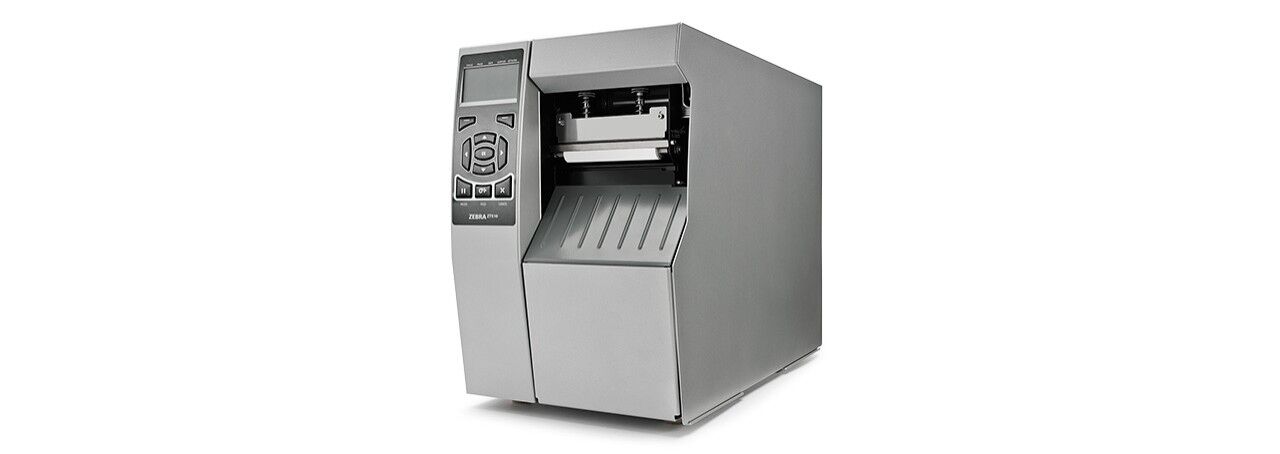

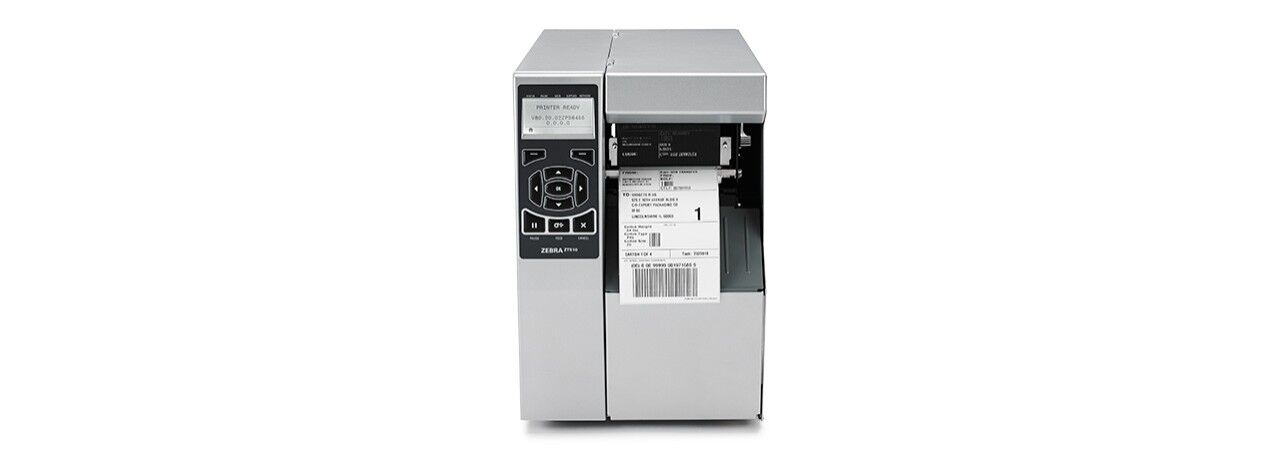

Industrial Printer ZT510
Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra® 105SLPlus™, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.
Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra® 105SLPlus™, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.
| STANDARD FEATURES | Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection, Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE, Construction: Metal frame, Print Methods: Thermal transfer and direct thermal printing, Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality |
|---|---|
| • • SPECIFICATION | • • • • • • • • • • |
| RESOLUTION | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional) |
| Memory | 2 GB on-board linear Flash memory, 512 MB RAM memory |
| Maximum Print Width | 4.09"/104 mm |
| Maximum Print Speed | 12 ips/305 mm per second |
| Media Sensors | Dual media sensors: transmissive and reflective |
| Maximum Print Length | 203 dpi: 150"/3810 mm, 300 dpi: 100"/2540 mm |
| Media Width | 0.79"/20 mm to 4.5"/114 mm |
| Media Roll Size | 8.0"/203 mm O.D. on a 3"/76 mm I.D. core |
| Media Thickness | 0.003"/0.076 mm to 0.012"/0.305 mm |
| Media Type | Black Mark, Continuous, die-cut, Notch |
| Ribbon Length | 1476'/450 M |
| Ribbon Width | 2.00"/51 mm to 4.33"/110 mm |
| Core I.D. | 1.0"/25.4 mm I.D. |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | Direct thermal = 32°F to 104°F/0°C to 40°C, Thermal transfer = 40°F to 104°F/5°C to 40°C |
| Operating Humidity | 20% to 85% non-condensing |
| Storage temperature | -22°F to 140°F/ -30°C to 60°C |
| Storage Humidity | 20% to 85% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified, ENERGY STAR qualified |
| Length | 20.17"/512.3 mm |
| Width | 10.56"/268.2 mm |
| Height | 15.58"/395.68 mm |
| Weight | 50 lbs/22.7 kg |
| Software | Developer Tools, Device Integration, Device Management, Document Design |
| Web View | Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers. |
| Alert | Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime. |
| FIRMWARE | XML-enabled Printing, ZBI 2.0, ZPL and ZPL II® |
| Barcode Symbologies | • • • • • • • • • • |
| 1D | Codabar, Code 11, Code 128 with subsets A/B/C and UCC Case Codes, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC and EAN 2-or 5-digit extensions, UPC-A, UPC-E |
| 2D | Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, RSS-14 (and composite), TLC 39 |
| FONTS AND GRAPHICS | 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts, 32 MB user available DRAM, 512 MB user available on-board Flash, Asian and other international scalable and smooth bitmapped fonts, Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0, Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats, IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control, Unicode™: For multi-language printing |
| Options and Accessories | • • • • • • • • • • |
| Communications | Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet. IPv6 option is available as an external dongle attached to a parallel port |
| Media Handling | Cutter: Front-mount guillotine cutter and catch tray, Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner |
| Keyboard Display Unit | ZKDU™ keyboard display units for stand-alone printing applications |
| BRAND |
