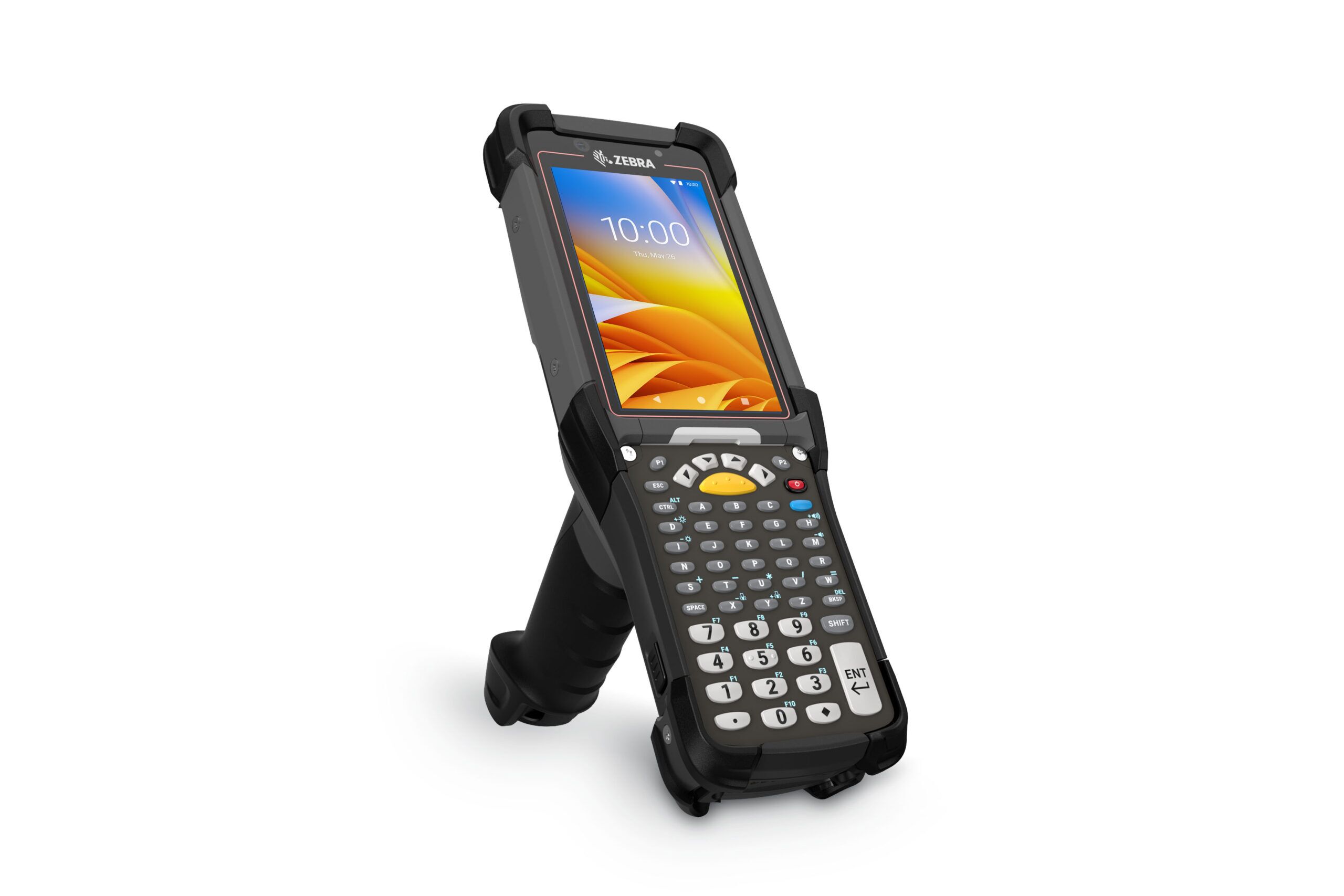

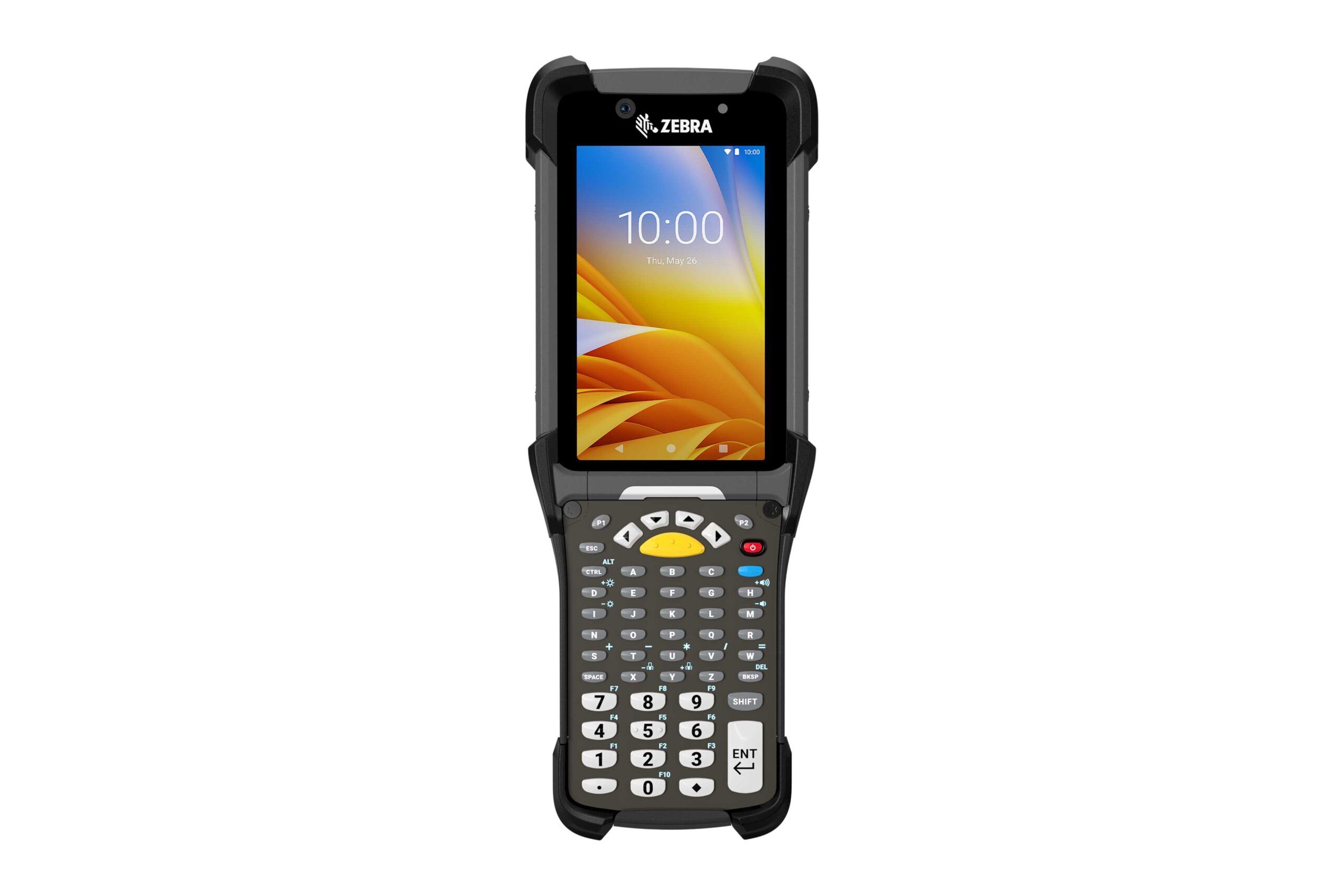

MC9300 Mobile Computer


The Ultimate Android Ultra-Rugged Mobile Computer

Take productivity and efficiency to the next level in your warehouse with the next evolution in the world’s best-selling industrial computer. It’s the most rugged MC9000 Series ever created, ready to outlast virtually every device in its class in any environment — including the freezer. New Mobility DNA solutions make device, OS security and battery management easy, while delivering better-than-ever robust wireless connections. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.

Physical Characteristics

Dimensions 9.4 in. L x 3.5 in. W x 7.4 in. H
240 mm L x 88 mm W x 189 mm H
Weight 26.9 oz./765g with battery
Display 4.3 in. WVGA (800 x 480), color display
Imager Window Corning Gorilla Glass
Touchpanel Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model).
Backlight LED backlit display
Power Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence
Expansion Slot User accessible MicroSD with 32GB SDHC and up to 256GB SDXC
Network Connections USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth)
Notification Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback
Keypad Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation
Voice & Audio Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support).

Performance Characteristics

CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System Upgradeable to Android 14
Memory 4 GB RAM/32 GB Flash pSLC

User Environment

Operating Temp. Standard: -4°F to 122°F/-20°C to +50°C,
Freezer: -22°F to 122°F/-30°C to +50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity Standard: 5% to 95%, non-condensing;
Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater)
Drop Specification Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G
Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G.
Tumble Specification 6,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification.
Sealing IP67 and IP65 per applicable IEC sealing specifications
Vibration 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock -40°F to 158°F (-40° C to 70°C) rapid transition
Electrostatic Discharge (ESD) ± 15kVdc air discharge; ± 8kVdc direct discharge;
± 8kVdc indirect discharge

Interactive Sensor Technology (IST)

Ambient Light Sensor Automatically adjusts display and keypad backlight brightness
Motion Sensor 3-axis Accelerometer with MEMS Gyro

Data Capture

Scanning SE965: 1D standard range laser scanner
SE4750: 1D/2D standard range omnidirectional imager
SE4770: 1D/2D standard range omnidirectional imager
SE4750 DPM: Direct Part Mark (DPM) imager
SE4850: 1D/2D extended range imager
Camera Front: 5MP fixed focus, 2.0 aperture
Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning
NFC Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support

Wireless LAN

Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency

Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES) ); WPA3 Enterprise (AES) —EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)

FIPS 140-2 Level 1: Data in Motion and Data at Rest

Multimedia Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)
Certifications WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0)
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC

Wireless PAN

Bluetooth Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support

Device Approvals and Compliance

TAA (Optional on select configurations) Trade Agreement Act optional on select configurations Compliant, FIPS 140-2 (DIM and DAR) support; FIPS 140-2 Level 1: Data in Motion and Data at Rest
Non-Incendive (NI)1 (Optional on select configurations) Suitable for use in Class I, II, III Div 2
Safety: cULus Listing — ISA/ANSA 12.12.01
Gases: Class I — Groups A, B, C, D
Dusts: Class II — Groups F, G
Fibers and Flyings: Class III
-20°C ≤ Ta ≥ +50°C T6

Communication and Messaging

Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the MC9300 to function as a full featured mobile telephone with multi-line capability across Wi-Fi networks featured mobile telephone with multi-line capability across Wi-Fi networks.

Environmental Compliance

Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance, please visit:
www.zebra.com/environment

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the MC9300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
https://www.zebra.com/warranty

Recommended Services

Zebra OneCare® Essential and Select support services
Zebra Visibility Services – VisibilityIQ™ Foresight or Asset Visibility Service

Platforming

Mobility DNA, Enterprise MDK, Standard Android SDK and SOTI for Android, Analytics Agent
