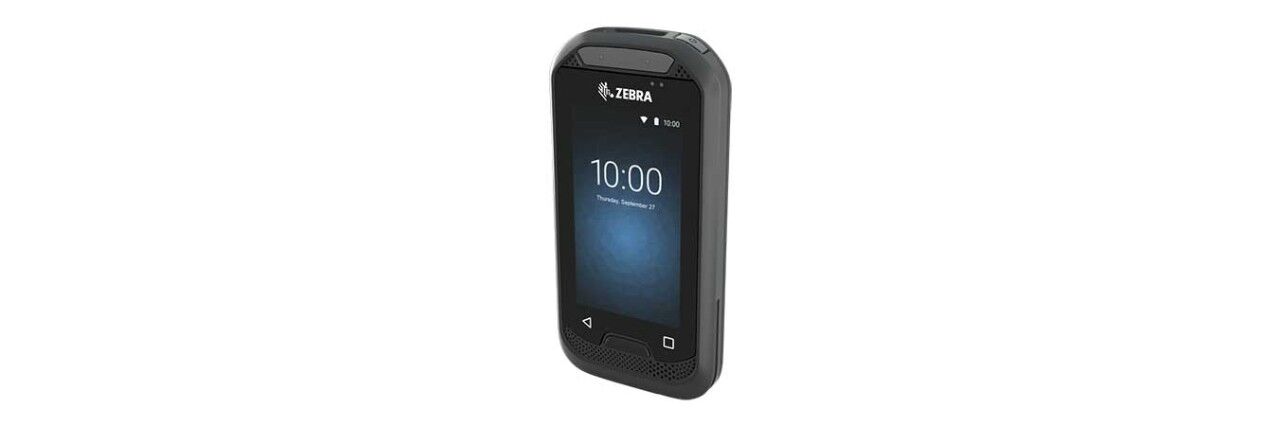

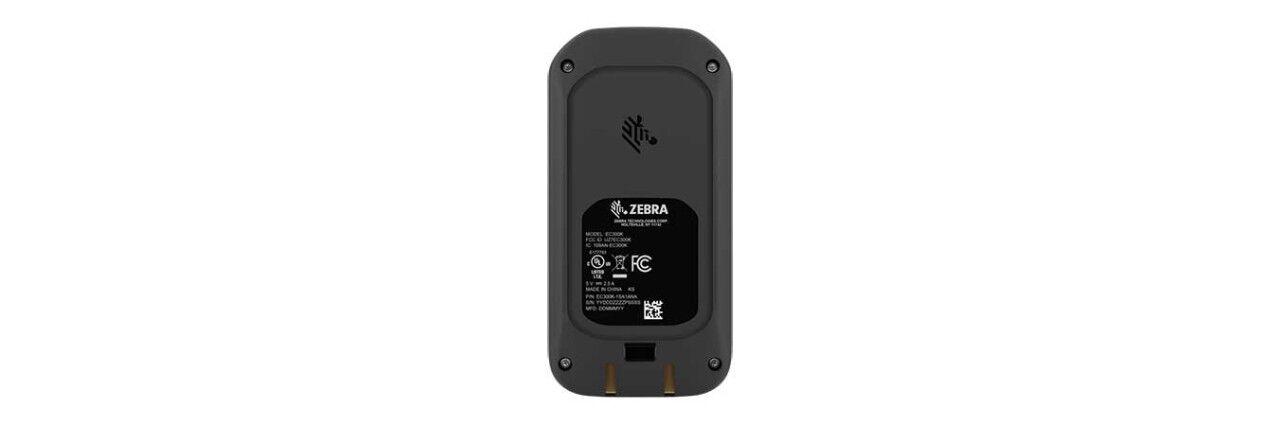

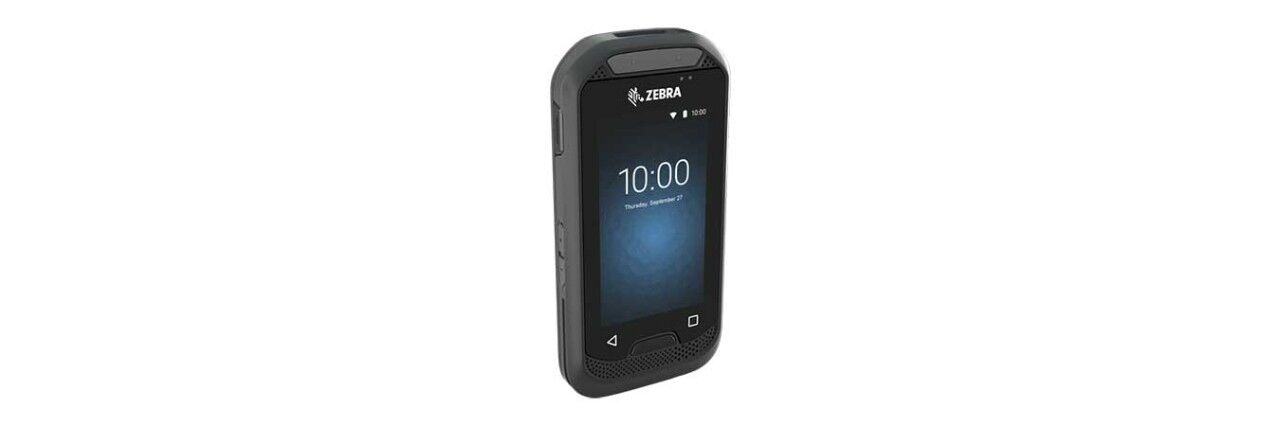

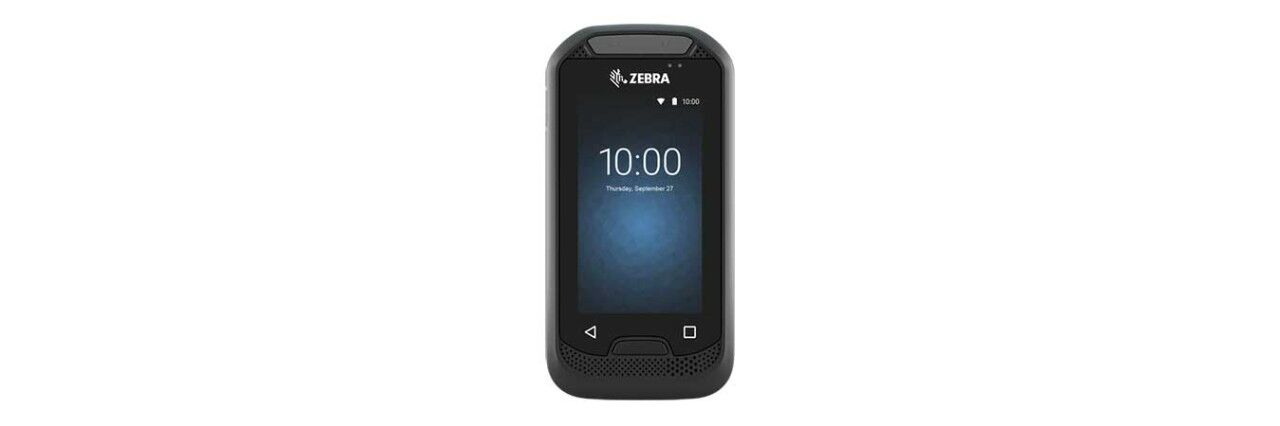

Mobile Computer EC30
For associates without mobile voice and data, the simple act of locating a supervisor to answer a question or looking up item availability can take minutes. Service quality is reduced. And you could lose sales when impatient customers walk away. Introducing the EC30, the right-priced mobile device with the right mobile connections for today’s unconnected associates. The EC30 is specially designed for portability — it’s small, lightweight and durable. Over 18 Zebra-only innovative Mobility DNA tools take ease of use, integration, deployment and everyday management to a new level, providing unmatched functionality and value. The EC30 delivers comprehensive voice capabilities — it’s a walkie-talkie and a cordless PBX handset (optional). Data capabilities include secure text messaging and 1D/2D barcode scanning. And you can leverage your current line-of business applications by selecting and extending features to improve task and inventory management, and more. The result? A fully connected and highly productive workforce. Maximum store operational efficiency. Superior customer service. And more sales. The EC30 — the perfect companion for your unconnected workforce.
For associates without mobile voice and data, the simple act of locating a supervisor to answer a question or looking up item availability can take minutes. Service quality is reduced. And you could lose sales when impatient customers walk away. Introducing the EC30, the right-priced mobile device with the right mobile connections for today’s unconnected associates.
The EC30 is specially designedfor portability — it’s small, lightweight and durable. Over 18 Zebra-only innovative Mobility DNA tools take ease of use, integration, deployment and everyday management to a new level, providing unmatched functionality and value. The EC30 delivers comprehensive voice capabilities — it’s a walkie-talkie and a cordless PBX handset (optional). Data capabilities include secure text messaging and 1D/2D barcode scanning. And you can leverage your current line-of business applications by selecting and extending features to improve task and inventory management, and more. The result? A fully connected and highly productive workforce. Maximum store operational efficiency. Superior customer service. And more sales. The EC30 — the perfect companion for your unconnected workforce.
| Dimensions | 114 mm W x 57 mm H x 14 mm D, 4.5 in. W x 2.2 in. H x 0.55 in. D |
|---|---|
| Weight | 3.88 oz./110 g |
| Display | 3 in. color display FWVGA (854 x 480) IPS Transmissive TFT LCD |
| Touchpanel | Capacitive touch with dual-touch operation (finger and glove) |
| Power | PowerPrecision+ battery (embedded), Standard capacity, 1200mAh rechargeable Li-Ion |
| Keys | back (capacitive), home (physical), power, push-to-talk (PTT), recent apps, Scan, volume |
| Notification | Audible tone, multi-color LEDs |
| Connectivity | USB C (USB 2.0) and charge-only contacts – data transfer; charging |
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System | Android 10; upgradeable through A11/ R¹ |
| Memory | 4GB LPDDR4 SDRAM Discrete / 32GB MLC eMMC Flash |
| Operating Temperature | 32° F to 122° F/0° C to 50° C |
| Storage temperature | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP54 |
| Drop Specification | 4 ft./1.2 m drop to smooth concrete across operating temperature |
| Tumble Specification | 1,000 1.6 ft./0.5 m tumbles |
| Electrostatic Discharge (ESD) | +/- 10 kVDC indirect discharge, +/-10 kVDC direct discharge, +/-20 kVDC air discharge |
| WLAN/Radio | 802.11 a/b/g/n/ac/r/k/d/h/i/w, IPv4, IPv6 2×2 MU-MIMO |
| Data Rates | 2.4GHz: 802.11b/g/n — up to 300 Mbps, 5GHz: 802.11a/n/ac — up to 866.7 Mbps |
| Operating Channels | Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165, Channel Bandwidth: 20, 40, 80 MHz |
| Security and Encryption | EAP-PWD, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, WEP (40 or 104 bit), WPA/WPA2 Enterprise (TKIP and AES) —EAP-TTLS (PAP, MSCHAP, MSCHAPv2), WPA/WPA2 Personal (TKIP and AES) |
| Certifications | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
| Fast Roam | 802.11r, Cisco CCKM, OKC, PMKID caching |
| WPAN | Bluetooth 5.0 with Bluetooth Low Energy (BLE) |
| Audio | 3.5mm audio jack support (wired and Bluetooth headset support), integrated microphone, Speaker: 1 Watt (90dB spl) |
| Push-to-Talk | Google Voice Assist, Google Voice Entry, PTT (Workforce Connect PTT Express and Pro): via speaker/microphone on device and via headset, PTT Express is Pre loaded and with 3 month trial license”, VoIP (Workforce Connect Voice): via headset only Bluetooth audio supported (NB and WB) |
| Scanning | 1D/2D Imager (SE2100) |
| Magnetometer | eCompass automatically detects direction and orientation |
| Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
| Gyroscope | Detects linear acceleration of the EC30 |
