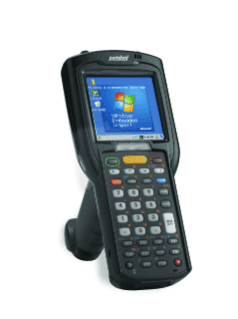

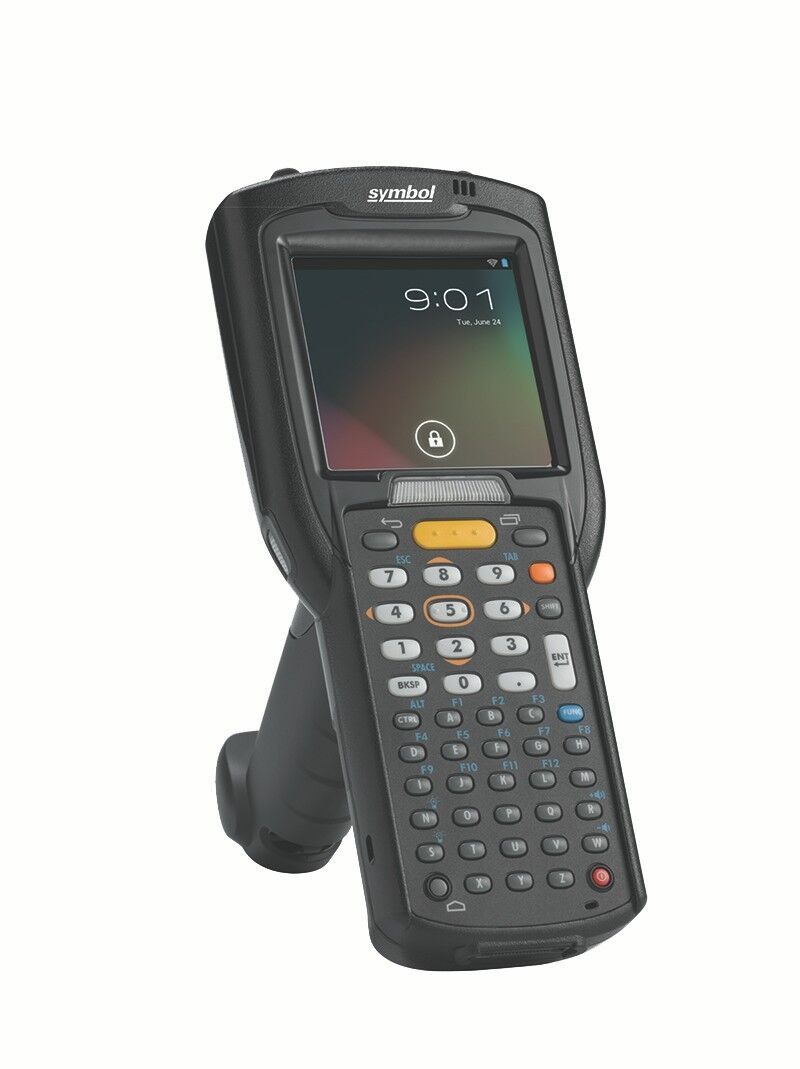

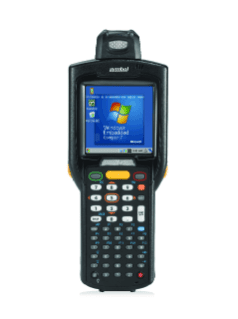

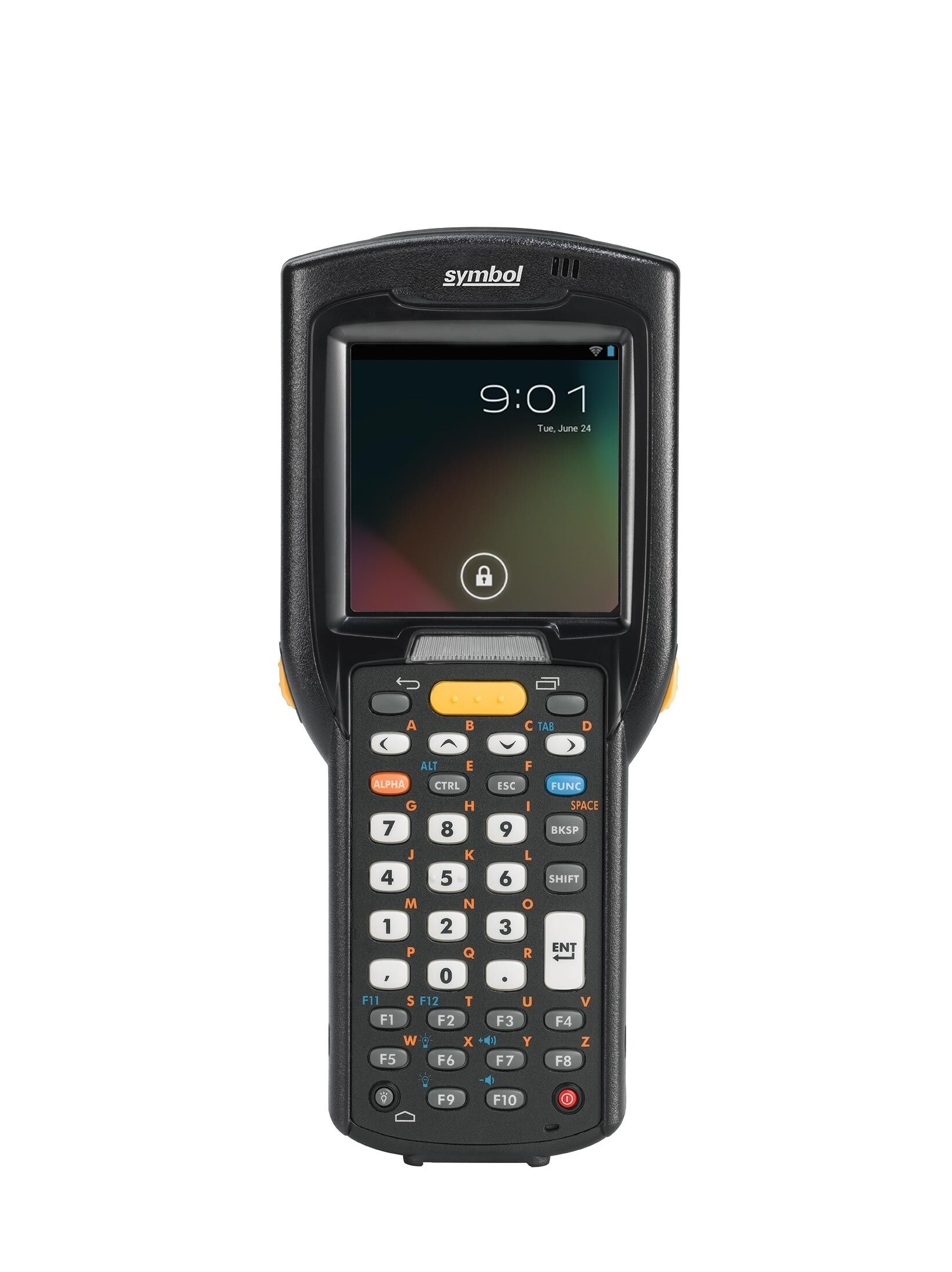

Mobile Computer MC3200
RE-SET THE BAR FOR PRODUCTIVITY IN INVENTORY MANAGEMENT WITH THE NEXT GENERATION IN THE CLASS LEADING MC3000 SERIES. Customer satisfaction and the success of your business are tightly tied to how efficiently and accurately you can manage your inventory. You need to know what you have on hand at all times to prevent costly out-of stocks, while your workers need to rapidly and accurately pick orders to ensure that customers receive the right items, on time. Now with more options, this cost-effective, lightweight and rugged mobile computer provides the tools your workers need to complete inventory-related tasks in seconds, from the store sales floor to the loading dock.
RE-SET THE BAR FOR PRODUCTIVITY IN INVENTORY MANAGEMENT WITH THE NEXT GENERATION IN THE CLASS LEADING MC3000 SERIES. Customer satisfaction and the success of your business are tightly tied to how efficiently and accurately you can manage your inventory. You need to know what you have on hand at all times to prevent costly out-of stocks, while your workers need to rapidly and accurately pick orders to ensure that customers receive the right items, on time. Now with more options, this cost-effective, lightweight and rugged mobile computer provides the tools your workers need to complete inventory-related tasks in seconds, from the store sales floor to the loading dock.
| Dimensions | Gun: 7.59 in. L x 3.18 in. W x 6.5 in. D 192.7 mm L x 80.8 mm W x 166 mm D, Rotating Turret: 8.37 in. L x 3.22 in. W x 1.57 in. D 212.6 mm L x 81.9 mm W x 40.0 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D, Straight Shooter: 7.49 in. L x 3.22 in. W x 1.78 in. D 190.4 mm L x 81.9 mm W x 45.2 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D |
|---|---|
| Weight | Gun: 18.0 oz./509 g (with extended battery), Rotating Turret: 13.13 oz./372 g (with standard battery, Straight Shooter: 12.88 oz./365 g |
| Display | 3.0 in. color (TFT) (320 x 320) display |
| Touchpanel | Chemically strengthened glass |
| Backlight | LED backlight |
| Keypad Options | 28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric |
| EXPANSION SLOT | User accessible Micro SD slot; (supports up to 32 GB microSDHC) |
| Notification | audio, LEDs |
| Audio | microphone and headset connector (2.5 mm jack), speaker |
| CPU | Dual core 800 MHz OMAP4 Processor (Standard) or Dual core 1 GHz OMAP4 processor (Premium |
| Operating System | Choice of Windows Embedded Compact 7.0 (Standard or Premium) or Android 4.1 (Premium) |
| Memory | 1 GB RAM/4 GB Flash (Premium), 512 MB RAM/2 GB Flash (Standard) |
| Power | PowerPrecision Li-Ion batteries, Two options: High Capacity 4800 mAh or Standard Capacity 2740 mAh (not available on gun form factor) |
| Operating Temperature | -4° F to 122° F/-20° C to 50° C |
| Storage temperature | -40° F to 158° F/-40° C to 70° C |
| Battery Charging Temp | 32° F to 104° F/0° C to 40° C |
| Humidity | 10 – 95% non-condensing |
| Sealing | IP54 per IEC specification |
| Drop Specification | Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G |
| Tumble Specification | 500 1.64 ft./0.5 m tumbles (1,000 drops) at room temperature per IEC 68-2-32 tumble specifications |
| Electrostatic Discharge (ESD) | ± 10kV direct discharge, ± 10kV indirect discharge, EN61000-4-2; ± 20kV Air discharge |
| Scanning | 1D Laser(1): SE965 Standard Range with Adaptive Scanning (all models), 1D/2D Imager: SE4750-SR, 4750-MR (Straight Shooter and Gun models only) |
| Motion Sensor | Android: 3-axis accelerometer that detects screen rotation, CE7.0/Premium model: 3-axis accelerometer that enables motion-sensing applications on dynamic screen orientation, power management and free-fall detects |
| Radio | IEEE® 802.11a/b/g/n |
| Security | Authentication:TLS; TTLS (CHAP(3), MSCHAP, MSCHAPv2, PAP or MD5(3)); PEAP (TLS(3), MSCHAPv2, GTC); LEAP; FAST (TLS(3), MSCHAPv2, GTC), Encryption:WEP40/WAP104, TKIP and AES, Other: Wi-Fi CCXv4 certified; supports IPv6; FIPS 140-2 certified (Android), Q4-2014 (WinCE), Security Modes:Legacy(3), WPA and WPA2 (Personal or Enterprise); 802.1X |
| Antenna | Internal antenna w/diversity |
| Data Rates | 802.11a/g: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11n: up to 65 Mbps (72 Mbps w/SGI) |
| Operating Channels | Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency, Chan 1-13 (2412-2472 MHz), Chan 36-165 (5180 – 5825 MHz) |
| Bluetooth¹ | Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna |
| Voice and Audio | High-quality speakerphone, PTT (client included), PTT will support headset and speakerphone mode, wireless (Bluetooth) and wired headset support |
| I/O | USB 1.1 Full Speed Host/ Client or RS232 |
| BRAND |
