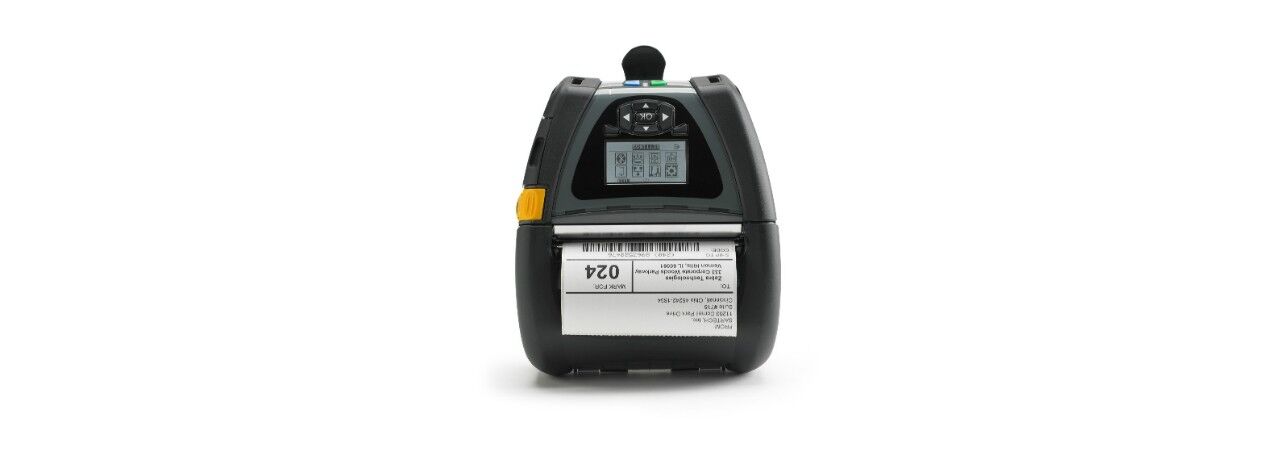

Mobile Printer QLn Series Mobile Printers

Zebra Products In Qatar

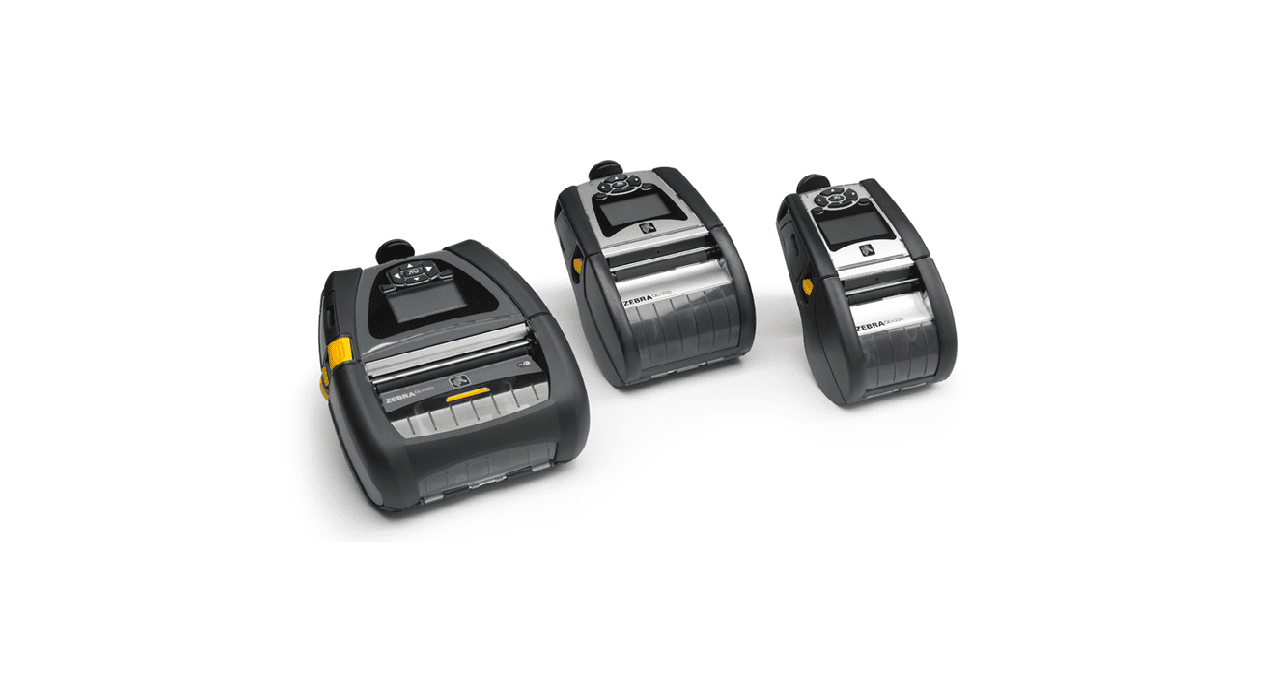

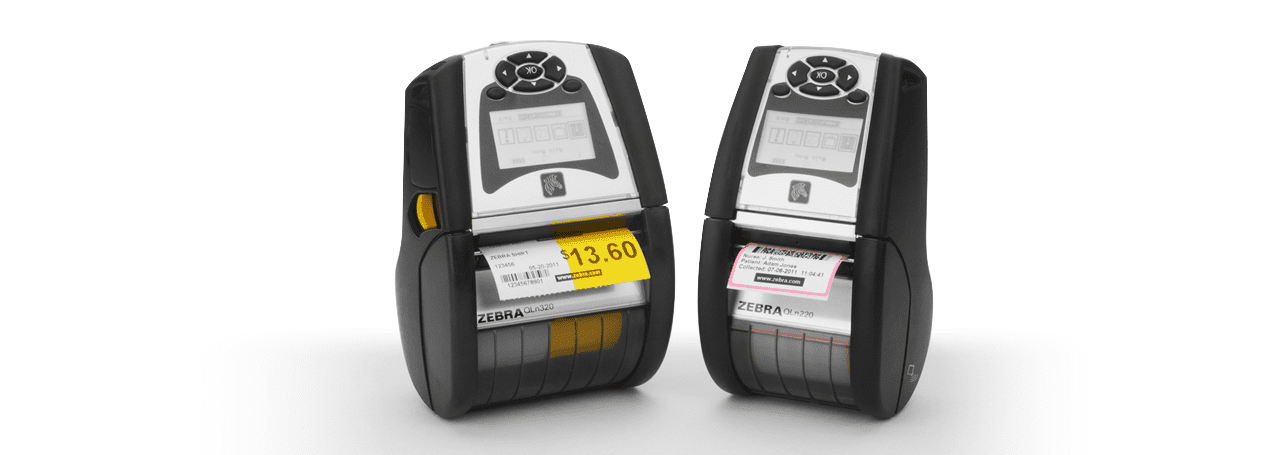

Zebra’s popular QL™ family of direct thermal mobile label and receipt printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power — whether you choose the QLn220™ for print widths up to 2 inches or the QLn320™ for 3-inch-wide printing.

Zebra’s popular QL™ family of direct thermal mobile label and receipt printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power — whether you choose the QLn220™ for print widths up to 2 inches or the QLn320™ for 3-inch-wide printing.



• • SPECIFICATION

• • • • • • • • • •

RESOLUTION

203 dpi/8 dots per mm

Memory

128 MB RAM; 256 MB Flash (standard)

Maximum Print Width

QLn220: 1.9"/48 mm, QLn320: 2.8"/72 mm

Maximum Print Speed

Up to 4"/102 mm per second

Media Sensors

Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

PRINT LENGTH

Maximum: 32"/813 mm, Minimum: 0.5"/12.7 mm

Power

2450 mAh (nominal) 18.1 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

Maximum Label and Liner Length

QLn220: 0.5"/12.7 mm to 32"/813 mm, QLn320: 0.5"/12.7 mm to 32"/813 mm or continuous

Media Width

QLn220: 0.63"/16 mm to 2.18"/55.4 mm, QLn320: 1.0"/25 mm to 3.125"/79 mm

Media Roll Size

QLn220: 2.2"/55.9 mm OD on a 0.75"/19 mm or 1.375"/34.9 mm, QLn320: 2.6"/66 mm OD on a 0.75"/19 mm or 1.375"/34.9 mm

Media Thickness

2.3 mil to 5.5 mil tag stock and 6.5 mil label stock

Media Type

2.3 mil to 5.5 mil tag stock and 6.5 mil label stock, black bar and gap sensing, linerless labels, receipt paper

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

32°F to 122°F/0°C to 50°C

Operating Humidity

10% to 90% non-condensing

Storage temperature

-13°F to 158°F/-25°C to 65°C

Storage Humidity

10% to 90% non-condensing

Length

QLn220: 6.5"/165 mm, QLn320: 6.8"/173 mm

Width

QLn220: 3.5"/89 mm, QLn320: 4.6"/117 mm

Height

QLn220: 2.75"/70 mm, QLn320: 3.3"/84 mm

Weight

QLn220: 1.25 lbs/0.57 kg, QLn320: 1.6 lbs/0.73 kg

Communications

10/100 Ethernet support (via charging cradle), Bluetooth 3.0 radio, Mini-B connector with optional strain relief, Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps, USB 2.0 full-speed interface (12 Mbps), Wifi

Software

Developer Tools, Device Integration, Device Management, Document Design

FIRMWARE

CPCL, EPL and ZPL programming languages, ZBI 2.0

Barcode Symbologies

• • • • • • • • • •

1D

2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E

2D

Aztec, Data Matrix, FIM Postnet, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, MSI/ Plessey, PDF417, QR code, TLC 39

FONTS AND GRAPHICS

International Character Sets (optional): Chinese 16 x 16 (traditional), 16 x 16 (simplified); Japanese 16 x 16, 24 x 24; Korean Mincho, Optional Fonts: downloadable bitmapped/scalable fonts, Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*)
