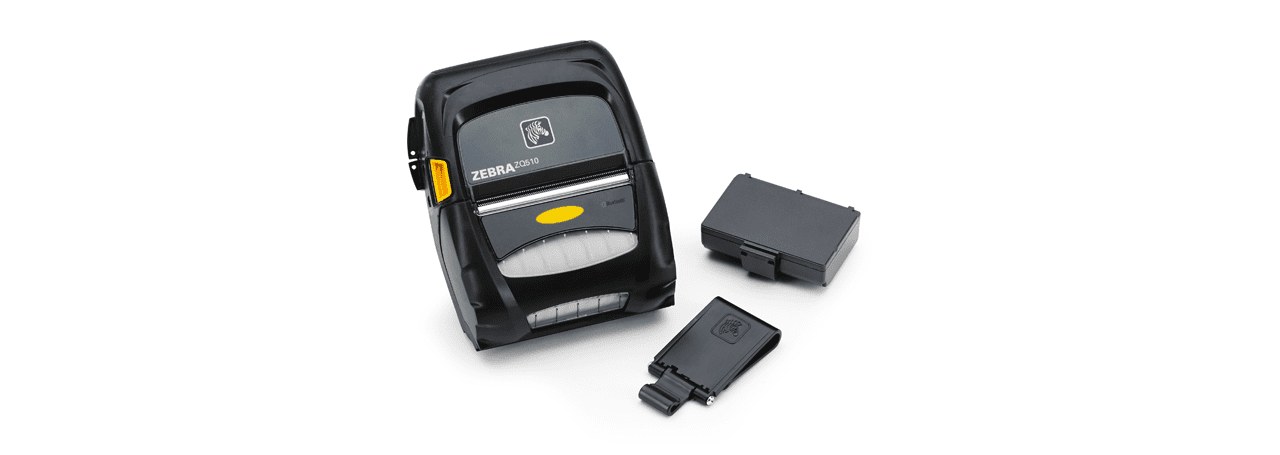

Mobile Printer ZQ500 Series

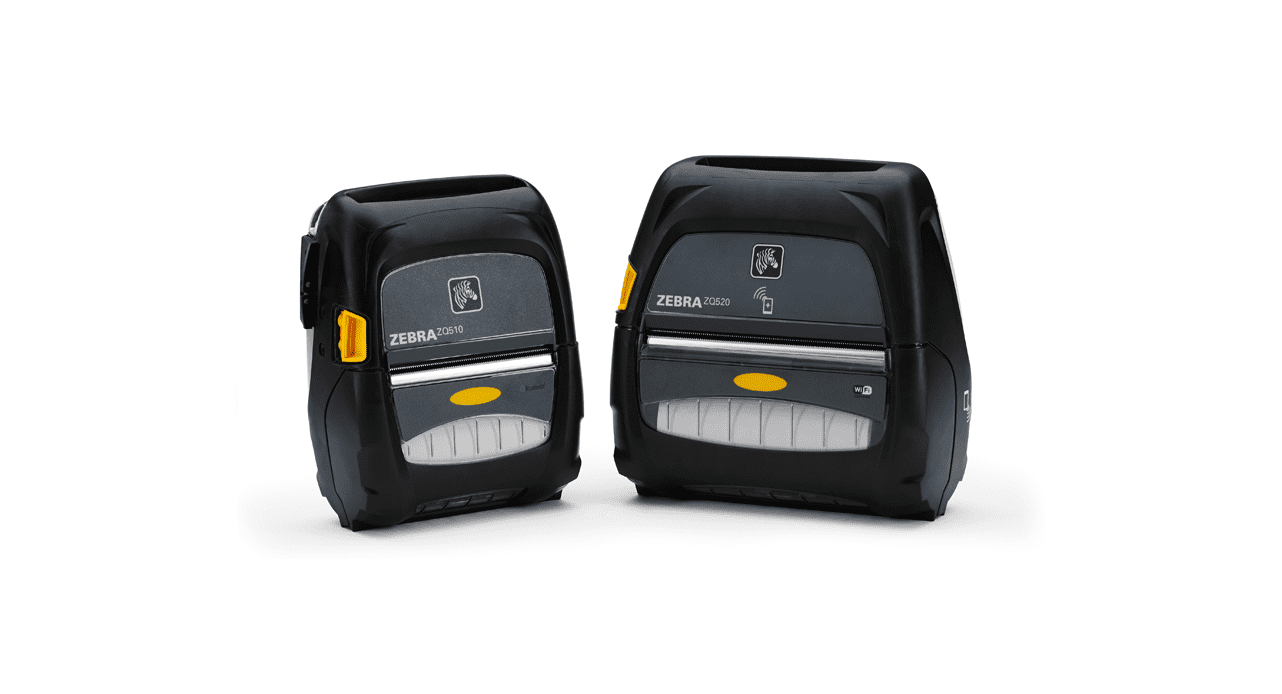

Zebra’s ZQ500™ Series offers best-in-class, rugged mobile printers for applications outside of a business’s four walls. The premium 3″ (72 mm) ZQ510™ and 4″ (104 mm) ZQ520™ printers are Zebra’s next-generation of high-performance mobile printers. The printers’ patented, military-grade design provides exceptional durability and reliability in the toughest environments.
Zebra’s ZQ500™ Series offers best-in-class, rugged mobile printers for applications outside of a business’s four walls. The premium 3″ (72 mm) ZQ510™ and 4″ (104 mm) ZQ520™ printers are Zebra’s next-generation of high-performance mobile printers. The printers’ patented, military-grade design provides exceptional durability and reliability in the toughest environments.
| • • SPECIFICATION | • • • • • • • • • • |
|---|---|
| RESOLUTION | 203 dpi resolution (8 dots/mm) |
| Maximum Print Width | ZQ510: 2.83"/72mm, ZQ520: 4.09"/104mm |
| Maximum Print Speed | Up to 5"/127mm per second |
| Media Sensors | Black mark and gap media sensing using fixed centerposition sensors |
| PRINT LENGTH | Maximum: 39" |
| Power | 2450 mAh removable, rechargeable PowerPrecision+ Li-Ion battery, with optional extended battery |
| Media Width | ZQ510: 3.15"/80 mm +1 mm, ZQ520: 4.45"/113 mm +1 mm |
| Media Roll Size | ZQ510: 2.0"/51 mm, ZQ520: 2.24"/57 mm |
| Media Thickness | 0.0063" (0.1600 mm) for labels and 0.0055" (0.1397 mm) for tag/receipt |
| Media Type | Black Mark, Gap, Receipt, Tag |
| • • ENVIRONMENTAL | • • • • • • • • • • |
| Operating Temperature | -4ºF to 131ºF/-20ºC to 55ºC |
| Operating Humidity | 10% to 90% non-condensing |
| Charging Temperature | 32ºF to 104ºF/0ºC to 40ºC |
| Cradle Temperature | 32ºF to 122ºF/0ºC to 50ºC |
| Storage temperature | -22ºF to 150ºF/-30ºC to 66º C |
| Storage Humidity | 10% to 90% non-condensing |
| Length | ZQ510: 2.4"/62 mm, ZQ520: 2.6"/67 mm |
| Width | ZQ510: 4.7"/120 mm, ZQ520: 6.1"/155 mm |
| Height | ZQ510: 5.9"/150 mm, ZQ520: 6.2"/158 mm |
| Weight | ZQ510: 1.39lbs/0.63 kgs, ZQ520: 1.73lbs/0.79 kgs |
| Software | AirWatch Connector, Cloud Connect, Multiplatform Software Development Kit, Print Station, Profile Manager, Virtual Devices, Zebra Utilities |
| CPCL Barcode Symbologies | • • • • • • • • • • |
| CPCL Barcode Ratios | 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 |
| CPCL Linear Barcode | 2 and 5 digit add-on, Codabar (NW-7), Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN128, UPC-A, UPC-E |
| CPCL 2D Barcode | Aztec, Data Matrix, FIM Postnet, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, MSI/Plessey, PDF417, QR Code, TLC39 |
| ZPL Barcode Symbologies | • • • • • • • • • • |
| ZPL Barcode Ratios | 2:1, 3:1, 5:2, 7:3 |
| ZPL Linear Barcode | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar (RSS), Industrial 2 of 5, Interleaved 2 of 5, ISBT-128, LOGMARS, MSI, Planet Code, Plessey, POSTNET, Standard 2 of 5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E |
| ZPL 2D Barcode | Aztec, Codablock, Code 49,, Data Matrix, Maxicode, MicroPDF-417, PDF417, QR code, TLC39 |
| FONTS AND GRAPHICS | • • • • • • • • • • |
| CPCL Font Specifications | CPCL Asian Fonts are not supported, Optional Fonts: downloadable bitmapped/scalable fonts, Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*) |
| ZPL Font Specifications | Character Fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F, G, H, (OCR-A), GS, P, Q, R, S, T, U, V and Ø Smooth font (CG Triumvirate Bold Condensed), Google/Adobe Hans (Asia SKUs only), Thai Angsana (Asia SKUs only), Unicode Scalable Swiss 721 is preloaded on the printers E: memory location (supports Latin, Cyrillic, Arabic and Hebrew) |
| BRAND |
