| • • SPECIFICATION | • • • • • • • • • • |
|---|
| Operating System | Link-OS® |
|---|
| RESOLUTION | 203 dpi/8 dots per mm |
|---|
| Memory | 256 MB RAM; 512 MB Flash (standard) |
|---|
| Maximum Print Width | ZQ610: 1.9 in./48 mm, ZQ620: 2.8 in./72 mm, ZQ630: 4.1 in./104 mm |
|---|
| Maximum Print Speed | Up to 4.5 in./115 mm per second |
|---|
| Media Sensors | Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time |
|---|
| PRINT LENGTH | Maximum: 32 in./813 mm, Minimum: 0.5 in./12.7 mm |
|---|

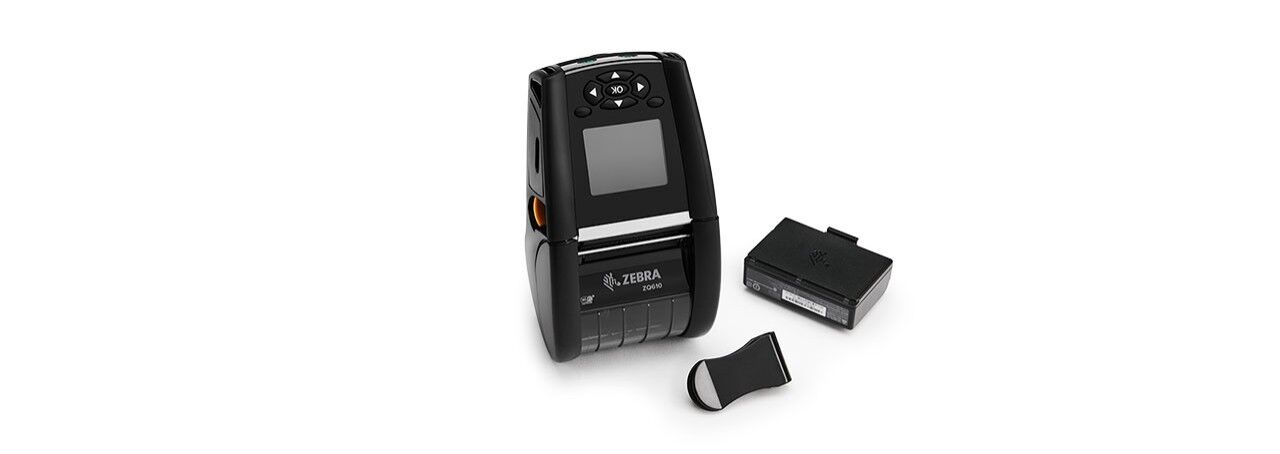

| Power | ZQ610 & ZQ620: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery, ZQ630: 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery |
|---|
| • • Physical Characteristics | • • • • • • • • • • |
|---|
| Dimensions | ZQ610: 6.5 in. L x 3.5 in. W x 2.75 in. H, ZQ620: 6.8 in. L x 4.6 in. W x 3.3 in. H, ZQ630: 7.35 in. L x 6.5 in. W x 3.25 in. H |
|---|
| Weight | ZQ610: 1.33 lbs/0.6 kg, ZQ620: 1.6 lbs/0.73 kg, ZQ630: 2.45 lbs/1.1 kg |
|---|
| • • Media Characteristics | • • • • • • • • • • |
|---|
| Maximum Label and Liner Length | 0.5 in./12.7 mm to 32 in./813 mm or continuous |
|---|
| Media Width | ZQ610: 1.0 in./25 mm to 2.18 in./55.4 mm, ZQ620: 1.0 in./25 mm to 3.125 in./79 mm, ZQ630: 2.0 in./51 mm to 4.1 in./104 mm (linerless), ZQ630: 2.0 in./51 mm to 4.4 in./112 mm (linered) |
|---|
| Media Roll Size | ZQ610: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core, ZQ620: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core, ZQ630: 2.6”/66 mm O.D. on a 0.75”/19 mm or 1.375”/34.9 mm inner core |
|---|
| Media Thickness | 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock |
|---|
| Media Type | black bar and gap sensing, Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 RFID compatible) |
|---|
| • • ENVIRONMENTAL | • • • • • • • • • • |
|---|
| Operating Temperature | -4°F to 122°F/-20°C to 50°C |
|---|
| Operating Humidity | 10% to 90% non-condensing |
|---|
| Storage temperature | -13°F to 149°F/-25°C to 65°C1 |
|---|
| Storage Humidity | 10% to 90% non-condensing |
|---|
| FIRMWARE | CPCL, EPL and ZPL programming languages, ZBI 2.0 |
|---|
| Barcode Symbologies | • • • • • • • • • • |
|---|
| Barcode Ratios | 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1 |
|---|
| 1D | 2 and 5 digit add-on, Codabar/NW-7, Code 128, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E |
|---|
| 2D | Aztec, Data Matrix, FIM Postnet, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, MSI/ Plessey, PDF417, QR code, TLC 39 |
|---|
| FONTS AND GRAPHICS | International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese, Optional Fonts: downloadable bitmapped/scalable fonts, Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*) |
|---|
| Communications | 10/100 Ethernet support (via charging cradle), Bluetooth 4.1 (Classic and BLE) radio, Mini-B connector with optional strain relief, Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps, USB 2.0 full-speed interface (12 Mbps), ZebraNet® 802.11ac radio |
|---|
| BRAND | ZEBRA |
|---|
