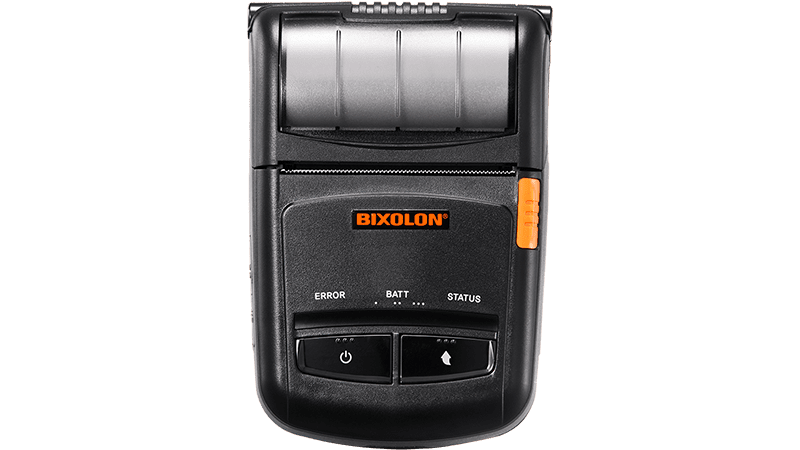

Mobile Receipt Printer SPP-R210

Bixolon Products in Qatar

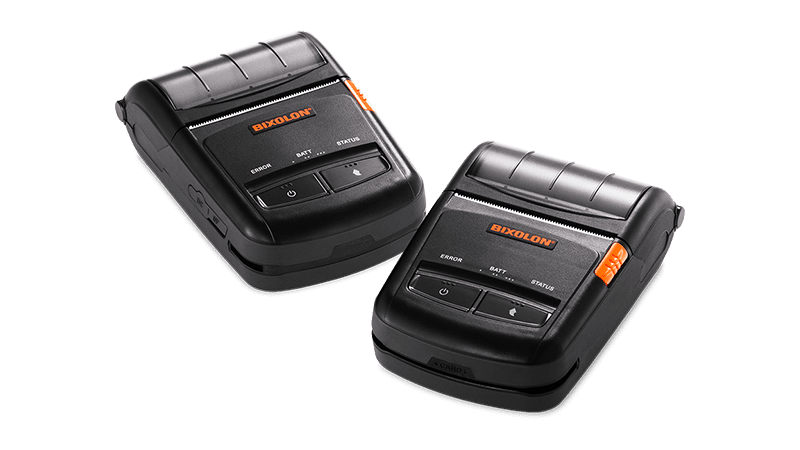

BIXOLON’s SPP-R210 is its most compact 2-inch (58mm) mobile receipt printer. A clear, precise design offering easy drop-in receipt loading and single touch opening. The small form factor is optimised for your Mobile workforce with ruggedness up to IP54 and a design to resist multiple drops. Offering wired and wireless: WLAN and MFi certified Bluetooth, connectivity, the SPP-R210 can be controlled via fixed or mobile devices – handheld, tablet or terminal, and its long-lasting battery will ensure your workforce maintain uptime. Offering integrated magnetic and smart card reader options, the printer is capable of handling your transactional routine.

BIXOLON’s SPP-R210 is its most compact 2-inch (58mm) mobile receipt printer. A clear, precise design offering easy drop-in receipt loading and single touch opening. The small form factor is optimised for your Mobile workforce with ruggedness up to IP54 and a design to resist multiple drops. Offering wired and wireless: WLAN and MFi certified Bluetooth, connectivity, the SPP-R210 can be controlled via fixed or mobile devices – handheld, tablet or terminal, and its long-lasting battery will ensure your workforce maintain uptime. Offering integrated magnetic and smart card reader options, the printer is capable of handling your transactional routine.



• • SPECIFICATION

• • • • • • • • • •

Print Method

Direct Thermal

Print Speed

12.5% pattern, Up to 60 mm/sec (Linerless), Up to 90 mm/sec (Receipt)

PRINT RESOLUTION

203 dpi

PRINT WIDTH

Up to 48 mm

SENSOR

Paper Cover Open, Paper End

Media Type

Linerless (Optional), Receipt

Media Width

58 mm

Media Roll Size

Up to 30 mm

Media Thickness

0.07 ± 0.005 mm

Supply Method

Easy Paper Loading

DIMENSION (W X D X H IN MM)

79.0 x 116.0 x 36.5 mm

Weight

Including MSR + battery: 232 g (0.51 Ibs.)

Electrical

7.4 V Li-ion, 1200 mAh, Rechargeable Charging time: Up to 2.5 hrs

Memory

8 MB SDRAM, 4 MB Flash

Interface

• • • • • • • • • •

Standard Interface

USB V2.0 FS

Optional Interface

USB V2.0 FS + Bluetooth¹ / WLAN²

Bluetooth¹

V3.0 + EDR

WLAN²

802.11b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct) – WEP40/104, WPA1/2 (PSK, EAP)

• • ENVIRONMENTAL

• • • • • • • • • •

Operating Temperature

Operating: -15 ~ 50℃ (5 ~ 122℉), Storage: -30 ~ 70℃ (-22 ~ 158℉)

Operating Humidity

Operating: 10 ~ 80% RH

Sealing

IP54 (with protective case)

Drop Rate

1.2 m (4 ft.)

Emulation

BXL / POS

Driver / Utility

Linux / Mac CUPS Driver, OPOS / JPOS Driver, Utility Program, Windows Driver

SDK / Plugin

Android / iOS / Windows SDK, Chrome SDK, Cordova Plugin, Linux SDK, Xamarin SDK

Application

mPrint App (iOS)

• •Fonts/Graphics/Symbologies

• • • • • • • • • •

Character Size

Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24

Characters Per Line

Font A: 32, Font B, C: 42, KOR, CHN, JPN: 16

Character Sets

Alphanumeric: 95, Expanded Graphics: 128 x 33 page, International: 32, Optional Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Graphics

Supporting user-defined fonts, graphics, formats, and logos

Barcode Symbologies

• • • • • • • • • •

1D

Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF, UPC-A, UPC-E

2D

Aztec, Data Matrix, MaxiCode, PDF417, QR code

Standard Accessories

Battery Charger, Battery Pack, Belt Clip, Paper, Power Cord

Optional Accessories

Battery Pack_V2 (with outer contacts), Belt Strap, Cigarette Lighter Charger, Quad Battery Charger, Quad Docking Cradle, Single Battery Cradle, Single Docking Cradle, USB Cable, Vehicle Charger, Wall Mount (for Quad Battery Charger)

• • Integrated Card Reader (Optional)

• • • • • • • • • •

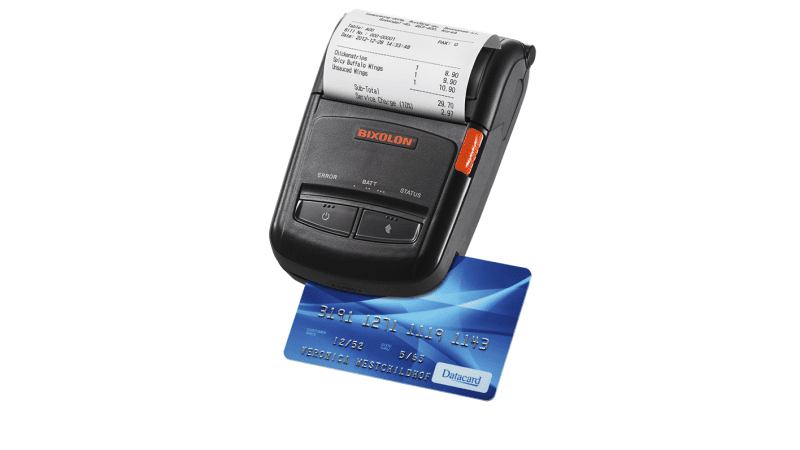

MSR

3 Track (T-DES / DUKPT (Optional))
